Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃
Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃
Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃
Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃
Specifications
Brand Name :
EASYCOOL
Model Number :
EASYMAN COOL COLD ROOM
Certification :
CE, CB
Place of Origin :
Guangdong China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000pieces per month
Delivery Time :
10working days after getting deposit payment
Packaging Details :
Wooden pallet
Temp. :
-40-20℃
Dimension(W*H*D) :
Customized
Applicable industrial :
Farms, Retail, Food Shop, Food & Beverage Shops
Voltage :
220V/380V
Compressor brand :
Copeland Bitzeror Tecumseh
Refrigerant :
R404a
Power(W) :
Depends
Doors :
Hinged and Glass Door
Thickness of panel :
50mm 75mm 100mm 120mm 150mm
Function :
Fresh Keeping
After-sale service :
Online support
Warranty :
1 year
Cooling system :
Air Cooling Condesor
Surface material :
Galvanized Steel
Description

Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃

1. The cold room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel

density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel

and durable for anti-scratch.
4. The hinged door panel of our cold room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high

quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasteners for tight connection and sealing of the cold room.

Specification:

Dimension Length (m) *Width (m)*Height (m) According to client's requirement .
Panel polyurethane insulation panel,43kg/m3, fire retardant
Foaming material BASF
Panel thickness 50mm,75mm,100mm,150mm,200mm
Steel cover stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell
Panel connection Inserted panel type, use insert to assemble and disassemble.
Type of door hinge door, convex door, sliding door
Temp.of room -45~+20 degree, optional
Purpose of cold room fruit,vegetable,flower,fresh/frozen meat etc
Refrigeration unit Copeland / Bitzer / Sanyo etc
Refrigeration type air cooled / water cooled
Fittings all necessary fittings are included, optional
Place to assemble indoor/out door(concrete construction building/steel construction building)
Voltage 220V/50HZ, 220V/60HZ, 380V/50HZ optional

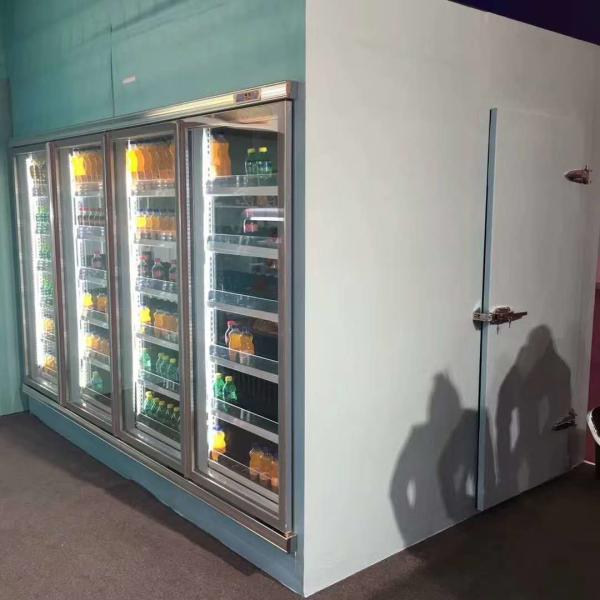

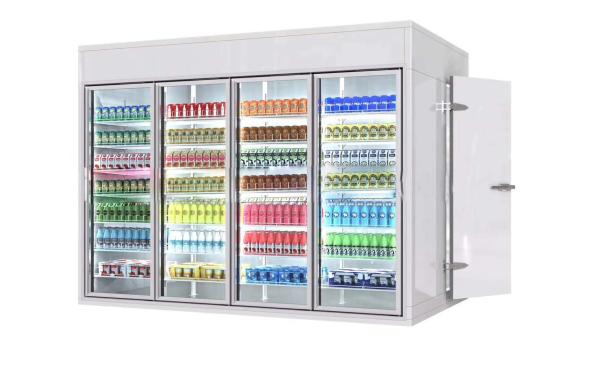

Product display:

Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃

Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃

Polyurethane panels specification

Standard Coldroom is Polyurethane panels are of 100% Polyurethane insulation, they have certain dimension, standard width is 1183mm, the maximum length is 12 meter. Equipped with highly efficient refrigeration units. Panel has a flame retardant.

Standard Coldroom is Polyurethane panel steel finish.
A. Stucco embossed aluminum
B. Stainless steel
C. Painted galvanized steel
D. PVC steel

Panel thickness
Panel THK(mm) Operating Temp.
50mm 5C (or above)
75mm -5C(or above)
100mm -25C (or above)
150mm -45C (or above)
200mm -55C (or above)

Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃

Panel Testing Specification

No. Inspection item Unit Technology Inspection Insection result
1 Density Kg/m3 32-50 43
2

Compressing strength

(10% deformation)

 Kpa ≥160 200
3 Bending stregth Kpa ≥245 331
4 Absorbing rate % ≤4 3
5 Heating coefficient W/m.k 0.024 0.024
6. Average burning time(vertical) S ≤30 3
7 Average burning height(vertical) S ≤250 250

Our panel advantage

1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in .


Glass door:

In order to facilitate design and installation, the standard dimensions of glass door cold storage are as follows:

Glass Doors

50mm panel(2~10C)

75mm panel(0~-5C)

100mm panel(-5~-20C)

2DOORs

1657*950*>2300mm

1703*950*>2300mm

1757*950*>2300mm

3DOORs

2421*950*>2300mm

2471*950*>2300mm

2521*950*>2300mm

4DOORs

3114*950*>2300mm

3264*950*>2300mm

3314*950*>2300mm

5DOORs

3978*950*>2300mm

4028*950*>2300mm

4078*950*>2300mm

6DOORs

4742*950*>2300mm

4792*950*>2300mm

4842*950*>2300mm

7DOORs

5535*950*>2300mm

5585*950*>2300mm

5635*950*>2300mm

8DOORs

6299*950*>2300mm

6349*950*>2300mm

6399*950*>2300mm

9DOORs

7063*950*>1965mm

7113*950*>2300mm

7163*950*>2300mm

10 DOORs

7856*950*>1965mm

7906*950*>2300mm

7956*950*>2300mm


Cold room install
Anti - Scratch Farms Walk In Chiller With Glass Door Temp. -40-20℃

To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:

1.What's the products do you want to store in this cold room?

2.Will this cold room be installed inside building or put outside?

3.Could you provide the detailed inside dimension of this cold room?(m)

4.What's the material of cold room panel,Polyurethane or EPS ?(Including the wall panel,floor and roof panel)

5.What's the thickness of cold room panel?(Including the wall panel, floor and roof panel)(mm)

6.Which kind of door do you prefer,Sliding type or hing type? Color steel or stainless steel?

We can do customized dimension according to customers'requirements.
We have access to all the leading Cold Room refrigerators brands and can offer independent advice, and recommend right equipment to meet your business requirements.
