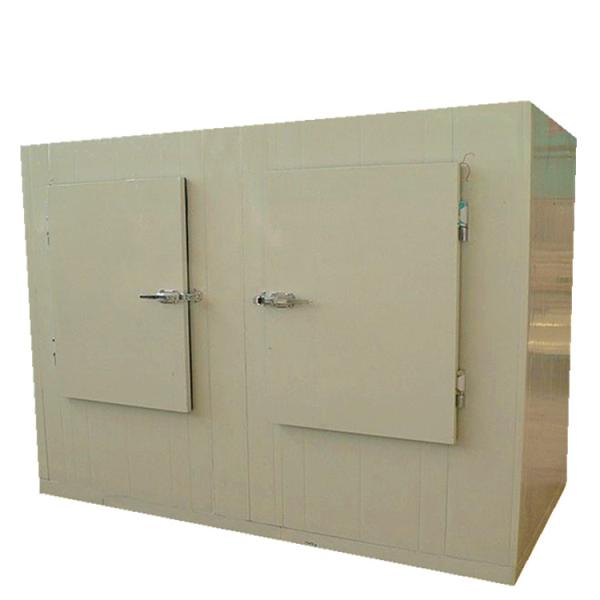

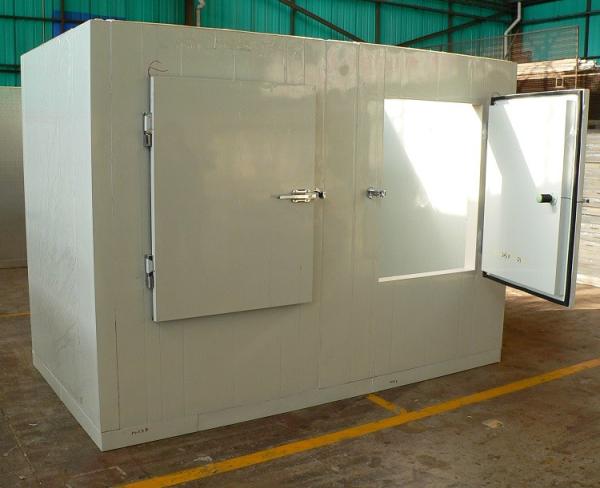

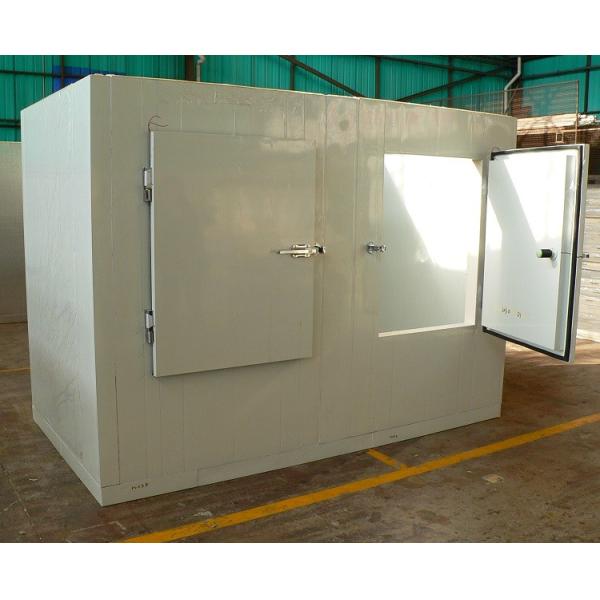

Commercial Cold Storage Cold Room,Mobile Modular Walk In Refrigerator With Fan Cooling

The small cold room is wide use in supermarket and gas station, for storing bagged ice. Considering the high cost shipment cost, this unit is a good choice, you can place more units than normal ice merchandisers. Easy to install and operate. We use famous and stable refrigeration unit. Any customized size and temperature are acceptable.

• 1. Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.

• 2. Easier and faster installation,can be expended or removed in the future.

• 3. Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.

• 4. Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.

• 5. Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.

• 6. Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.

• 7. Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.

Temperature for reference:

1. Processing room: +10℃;

2. Fruit, vegetable, dry food: 0℃~ -5℃；

3. Medicine, cake pastry, chemical material: 0℃~ -5℃;

4. Ice storage: -5℃~-15℃;

5. Fish, meat storage: -18℃~ -25℃;

6. Blast freezer: -35℃

Details description:

	Machine Parts Cold room panel
Main Parts 100% copper pipe of Evaporator material
Machine Parts Stable performance condening unit
	Machine Parts Electric control box, with temperature control
Machine Parts Cold room lamp inside
	Machine Parts We can provide you shelf inside if you need

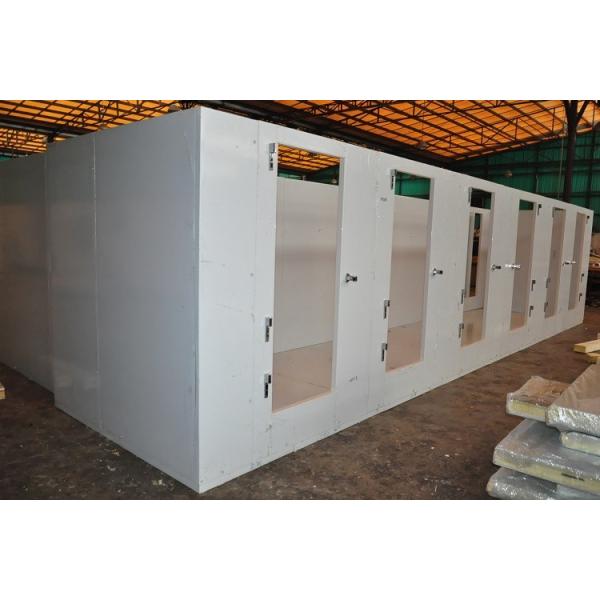

Our previous projects:

Package and Loading:
