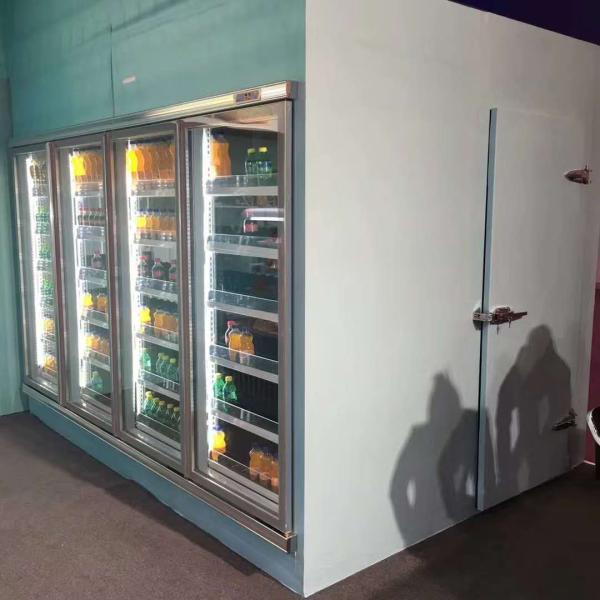

Supermarket Store Glass Door Beverage Milk Display Cold Storage Room
Glass Door Poultry Processing ripening room New Design Glass Door Commercial Walk in Freezer And Chiller for fish and Meat cold storage ripening room price
Cold room just like a big dimension of fridge & refrigerator to keep food fresh and store long time.it is popuar and wide used in hotel,restaurant,supermarket,fruit & vegetable whole sale center,meat & fish processing station,slaughter house,sea food market etc.
1. Glass Door Poultry Processing ripening room
We call small dimension cold room as cold chamber from 5CMB to 50CBM and the compressor power is from 0.5HP to 5HP mono-block refrigeration unit. this kind of refrigeration unit already finished installation before shipment. customer just need to open a hole from wall panel or ceiling panel.fix the mono-block unit in the hole,connect power supply and open switch to run compressor.it has two temperature range.one is moddle high temperature from 0C to -5C to store fruit & vegetable.one is -18C to store frozen meat.
2. Glass Door Poultry Processing ripening room chiller.
We also call it middle & high temperature cold room from +5C to 0C to store fruit & vegetable. customer just need to inform us cold room outside dimension. we will work out compressor power and evaporaor cooling capacity and quote best price.
3. Glass Door Poultry Processing ripening room freezer.
We call it middle & low temperaure cold room from 0C to -18C to store frozen meat and fish. customer just need to inform us cold room outside dimension.we will offer compressor model and evaporator model with technical parameter and quote best price.
4. Glass Door Poultry Processing ripening room deep freezer.
We call it low temperature cold room from -18C to -25C store sea food and special meat and ice-cream.customer just need to inform us cold room outside dimension or how many tons of food. we will offer all solutions with best price.
5. Glass Door Blast freezer for poultry processing
It freezes fresh meat or fish to -35C in the cold room and meat center one point temperaure is from -15C to -18C in a short time.Actually.blast freezer is a meat processing equipment.
Parameter
Dimension | Length (m) *Width (m)*Height (m) . |
Refrigeration unit | Copeland / Bitzer etc or others |
Refrigeration type | air cooled / water cooled / evaporation cooled |
Refrigeration | R22, R404A, Refrigerant |
Defrost Type | Electric defrosting |
Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ, 380V/60HZ optional |
Panel | polyurethane insulation panel,43kg/m3, fire retardant / EPS panel |
Panel thickness | 50mm,75mm,100mm,150mm,200mm |
Type of door | hanged door , sliding door, double swing door etc |
Temp.of room | -30~+20degree C, optional |
Purpose of cold room | fruit,vegetable,flower , fish,meat ,chicken medicine, chemical, electronics,etc. |
Functions | all necessary fittings are included, optional |
Fittings | all necessary fittings are included, optional |
Place to assemble | indoor/out door(concrete construction building/steel construction building) |
Temperature
cold storage goods | temperature range |
processing room | 10C |
fruit, vegetable, dry food | 0C~-5C |
medicine, cake, pastry, chemical material | 0C~-5C |
ice storage room | -5~-10C |
fish, meat storage | -18~-25C |
deep freezer | -25C~-60C |
Compressor type and condenser of cold storage/cold room for drink
compressor type | Germany bitzer / American copeland or others |
condenser | air cooled / water cooled / evaporation cooled |
Cold room install
To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:
1.What's the products do you want to store in this cold room?
2.Will this cold room be installed inside building or put outside?
3.Could you provide the detailed inside dimension of this cold room?(m)
4.What's the material of cold room panel,Polyurethane or EPS ?(Including the wall panel,floor and roof panel)
5.What's the thickness of cold room panel?(Including the wall panel, floor and roof panel)(mm)
6.Which kind of door do you prefer,Sliding type or hing type? Color steel or stainless steel?
We can do customized dimension according to customers'requirements.
We have access to all the leading Cold Room refrigerators brands and can offer independent advice, and recommend right equipment to meet your business requirements.
