Supermarket 4 glass doors display cold storage room beverage chiller
Supermarket 4 glass doors display cold storage room beverage chiller
Supermarket 4 glass doors display cold storage room beverage chiller
Supermarket 4 glass doors display cold storage room beverage chiller
Specifications
Brand Name :
EASYCOOL
Model Number :
EASYMAN COOL COLD ROOM
Certification :
CE, CB
Place of Origin :
Guangdong China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pieces per month
Delivery Time :
25-30working days after getting deposit payment
Packaging Details :
Wooden pallet
Temp. :
-20~10
Dimension(W*H*D) :
Customized
Applicable industrial :
Farms, Retail, Food Shop, Food & Beverage Shops
Voltage :
220V/380V
Compressor brand :
Bitzer, Emerson Copeland, Danfoss, Tecumseh
Refrigerant :
R404a
Size: :
6475*1800*2150mm
Doors :
Glass door
Thickness of panel :
50mm 75mm 100mm 120mm 150mm
External Material :
Painting steel sheet/SS/Aluminum/Galvanized sheet(Option)
Core Material :
Polyurethane
Warranty :
1 year
Description

Supermarket 4 glass doors display cold storage room beverage chiller

1. Easy to install: Modular portfolio, cam lock panels, easy and fast installation.
2. Economical and energy saving: PU panels foamed by high pressure, use life more than 20years, good preservation performance greatly saving the energy. High efficient compressor cave much operating cost, more economical.
3. Sanitary and enviroment friendly: The steel finish of PU panels conforms to international standards of food hygiene. Easy to clean.
4. Reliable quality: Cold rooms are produced according to quality management system standards of ISO, professinal testing &strict quality process assure product quanlity stability.
5. Professional services: We have wide experience in producing and assembling the cold rooms, we provide good services in design, producing, construction and after-sales service, and offer you competitive price.

The Panel details same as the walk in freezer cold room, see the chart as below:

Cold Room Panel Information

Material

Core Material

Polyurethane

External Material

Painting steel sheet/SS/Aluminum/Galvanized sheet(Option)

Thickness

Core Thickness

65mm

Extenal Thickness

0.726mm-1mm

Cold Room Panel Density

42KG/Cubic Meter

Compressor Brand

Panasonic, Copeland, Bitzer(option)

Fire Rating

B2, (B1 is coming soon)

Bonding Strength

≥0.100MPa

Glass door cold storage specifications:

Item No.

Dimension

Temperature

Doors

Rate Voltage

ELD-3HB

2245*1800*2150mm

0-10C/-20C

3

220v/380v-50hz/60Hz

ELD-4HB

2950*1800*2150mm

0-10C/-20C

4

220v/380v-50hz/60Hz

ELD-5HB

3655*1800*2150mm

0-10C/-20C

5

220v/380v-50hz/60Hz

ELD-6HB

4360*1800*2150mm

0-10C/-20C

6

220v/380v-50hz/60Hz

ELD-7HB

5065*1800*2150mm

0-10C/-20C

7

220v/380v-50hz/60Hz

ELD-8HB

5770*1800*2150mm

0-10C/-20C

8

220v/380v-50hz/60Hz

ELD-9HB

6475*1800*2150mm

0-10C/-20C

9

220v/380v-50hz/60Hz

For more details of glass door walk in freezer, call me or email me! I will always here wait for you!

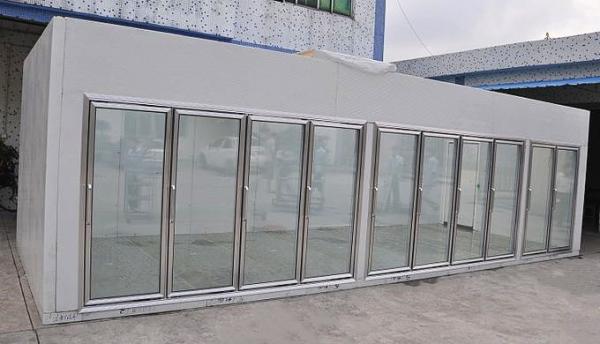

Glass door cold storage display:

Supermarket 4 glass doors display cold storage room beverage chiller

Supermarket 4 glass doors display cold storage room beverage chiller

We build a wide range of Coldrooms and Freezers for Commercial Refrigeration, With over 10 years of experience, the team at EASYMAN can work with you to find the right fit for your budget and needs. Whether you just need a small back up cold room or freezer room, or you are doing a large display room, we can help you from the design and layout of the project, to the final start up of your new venture.
Our cold room design team will produce working drawings of the cold-room layout, so you can see exactly what you are getting in the final build.
We also engineer the refrigeration equipment required to run your new cold-room. There are many different possibilities, so if you want to meet and discuss your individual requirements, we are pleased to do so. At EASYMAN, we can supply a cost effective outcome that is also energy efficient.
EASYMAN brings its expertise to coldroom construction with its extensive range of solutions, in a choice of temperatures to suit various requirements and budgets.


• FEATURES OF PANELS
• - Quick and easy-to-install modular construction
• - Optimal temperature management, with a choice of low-energy consuming, unitary or remote refrigeration system
• -Panel joints sealed with PVC gaskets, making routine cleaning easy and eliminating moisture penetration
• - Scale drawings for approval and sign-off before construction begins

• FEATURES OF REFRIGERATION UNITS
• - Imported energy-efficient compressors
• - Designed for high ambient conditions
• - Option of hermetic and semi-hermetic
