440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms
Specifications
Brand Name :
EASYCOOL
Model Number :
EASYCOOL COLD ROOM
Certification :
CE,ISO9001,SASO,SGS,
Place of Origin :
Guangdong China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Set/Sets per Month
Delivery Time :
10-15working days after getting deposit payment
Packaging Details :
Plywood case pallet for cold room
Panel Material :
Coated Steel, PU
Dimension(W*H*Dmm) :
Depend
Voltage :
220V /380V/420V/ 440V
Compressor :
Copeland Bitzer brand
PU panel thickness :
50mm 75mm 100mm 120mm 150mm 200mm
Refrigeration system :
Bitzer , copeland compressor,evaporator ,condenser etc
Cooling approach :
Water cooled or air cooled
Door :
Single swing door
Weight :
Customized
Application :
Beef storage
After warranty service :
Video technical support, Online support, Spare parts
Temp. Range :
-30~+10'C
Warranty :
1 year
Description

440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms

Cold Room full set includes: compressed air cooler + temperature control system + condensing unit + spare parts.

Cold Room Panel Information
Material Core Material Polyurethane
External Material Painting steel sheet/SS/Aluminum/Galvanized sheet(Option)
Thickness Core Thickness 100mm, 120mm, 150mm, 200mm(Option)
Extenal Thickness 0.726mm-1mm
Cold Room Panel Density 42KG/Cubic Meter
Compressor Brand Panasonic, Copeland, Bitzer(option)
Fire Rating B2, (B1 is coming soon)
Bonding Strength ≥0.100MPa
Fruit, Vegetable, Seefood Suggest 100mm, and temperature -5℃ to 20℃
Fish,Chicken, Beef, Mutton, Seafood Suggest 150mm, and temperature -18℃ to -25℃
Quick frozen meat, seafood, Suggest 200mm, and temperature -35℃ to -40℃


1.Thermal insulation panel:
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms

440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms

Panels thickness
Temperature difference inside and outside cold room
Suitable temperature for cold room
75mm
40℃
-5~25℃
100mm
50℃
-15~25℃
150mm
70℃
-25~25℃
180mm
80℃
-35~25℃
200mm
90℃
-50~25℃


Temperature recommend

Cold room function Designed temperature range
°C °F
Fresh keeping 0 ~ + 5 32~+41
Quick freezing/blast freezing cold storage -40~-35 -40~-31
Processing area e.g. processing, corridor, loading, +2~+8 +35.6~+46.2
Pre-cooling room/chilling room 0 +3~+2


2.Compressor unit:
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms
Features:
Save energy ,provide cooling capacity on demand；
Modular combination, compact structure and small footprint
Automatic control system,simple operation.

3.Air cooled:
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms
Features: High strength; Excellent finish; Precisely designed;
Coil: use new high efficient aluminum wave fin, high heat conductivity, fast water discharge, use the high efficient copper pipe, high heat transfer; use the new liquid distributor, uniform frost.
Fan: low cost, high reliability, lower temperature- resistant and low noise external Rotor fans.
Defrost: use electric heating stainless steel pipe, high leak proofs at the end, anti-electric leakage and long life.
Casing: use the aluminium plate and stainless steel or cold plastic spraying plate, nice appearance and durable.
Maintenance: flexible to disassemble and lean.

4. Our project:
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms

5.How to buiding a cold storage room?

Use cam lock system to lock the two pieces of cold room panels together after customer receive the cold room panels.


- Constructed of 100 mm thick Cold Storage Room panels insulated with polyurethane foam at a density of 38-45 kg/m³.
- Cold Room Panels can be assembled in any size or shape by means of interlock cam system that ensures a very rigid construction and enables dismantling the store to change the size of the entire store room or to facilitate the transportation to other sites.
- Panels are provided with a plastic rim all around. Rubber gaskets ensure air-tightness at all times and perfect thermal insulation. This also means low running costs and no exterior condensation of the panels.
- Exterior and interior are made of galvanized pre-painted anti-fungus and anti-bacteria.(Painting steel will be better) .

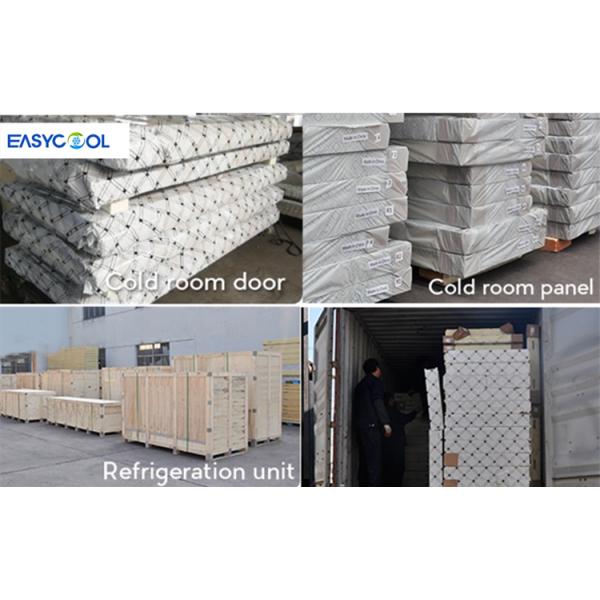

6. Packaging and delivery:
440V Cold Storage Room / Modular Potato Cold Store Fruit And Vegetables Prefabricated Cold Rooms



Product tags

vegetable cold storage room

,

potato cold storage design

,

build a cold storage room
