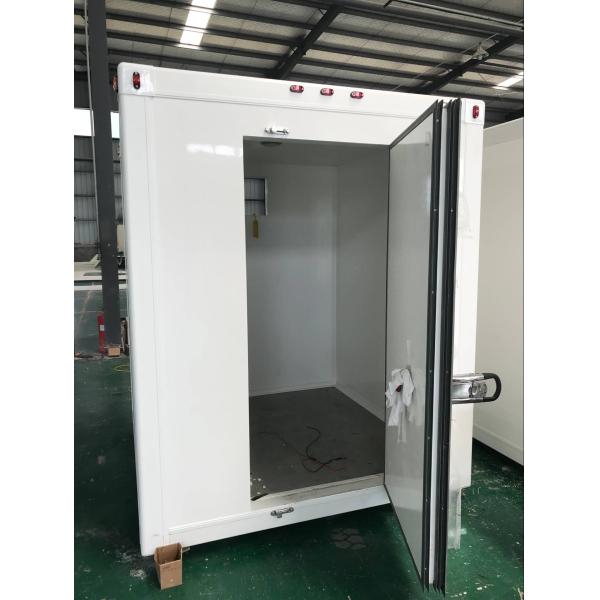

50cbm 15tons Insulated Doors Cold Room With Energy Saving
50cbm 15tons Insulated Doors Cold Room With Energy Saving
50cbm 15tons Insulated Doors Cold Room With Energy Saving
50cbm 15tons Insulated Doors Cold Room With Energy Saving
Specifications
Brand Name :
EASYCOOL
Model Number :
SR-3M
Place of Origin :
Foshan City
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs/year
Delivery Time :
20 days
Packaging Details :
Carton
Certification :
ISO2001
Name： :
cold room with energy saving
Dimension(L*W*H): :
6.8*3*2.5m
Refrigerant: :
R-404A
Compressor: :
Bitzer/Frascold
Panel type: :
polyurethane
Capacity: :
15 tons/customized
Temperature: :
5℃ ~ -50℃/customized
Usage: :
Food Freezing/Fresh Keeping
Warranty: :
12 Months
Description

50cbm 15tons Insulated Doors Cold Room With Energy Saving

Our modular walk in cold storage series is an integrated family of sandwich panels designed for quick cold room assembly. The panel configuration has been reduced to a minimum, so the overall effect is to offer the clients maximum design possibilities for cold rooms with a minimum amount of panels required on the site. All products from the modular range can be easily assembled without the need for special tools.
The system reduces the time required to complete the implementation of the project will begin BUSINESS quickly. Create market advantage and profits first.

Cold Room Features:
1. Modular insulation panel, CAM Lock, Installation is simple, easy to install
2. Refrigeration: R22, R404A, Glycol Secondary Refrigerant
3. Temperature Range: From - 35°C To + 30°C
4. Room Size: According to the customer request design
5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof,
6. The world famous brand refrigeration fittings
7. Long life cycle
8. Full automatic control, easy to operation and management
9. Defrost Type: Electric defrosting, Water defrosting
10.High efficiency and energy saving design

Specification for Cold room:

Dimension

Length x width x height customized

Panel

Polyurethane foam insulation panel,38~42kg/m3, fire resistance

Thickness of panel

75mm,100mm, 120mm,150mm,180mm,200mm optional

Surface steel

color steel or stainless steel option

Panel Connection

cam lock connection

Door type

sliding door, hinged door option, size can be customized

Cold room temperature

-35~+15'C

Refrigeration unit

Bitzer Tecumseh, Copeland compressor for options

refrigerant

R134a, R404a, R507c

voltage

380V/3ph/50~60hz, 230V/3PH/50~60HZ.

application

Seafood, meat quick freezing, and fruit and vegetable fresh keeping

Polyurethane foam panel advantage and specification:

Thickness(mm)

Temperature application(°C)

Weight(kg/m²)

R-value(m².k/w)

50

Above -5'C

12.8

2.28

75

above-15'C

13.8

3.42

100

above-15'C

14.8

4.55

120

above-15'C

15.7

5.6

150

above-15'C

16.8

6.82

200

above-15'C

18.8

9.12

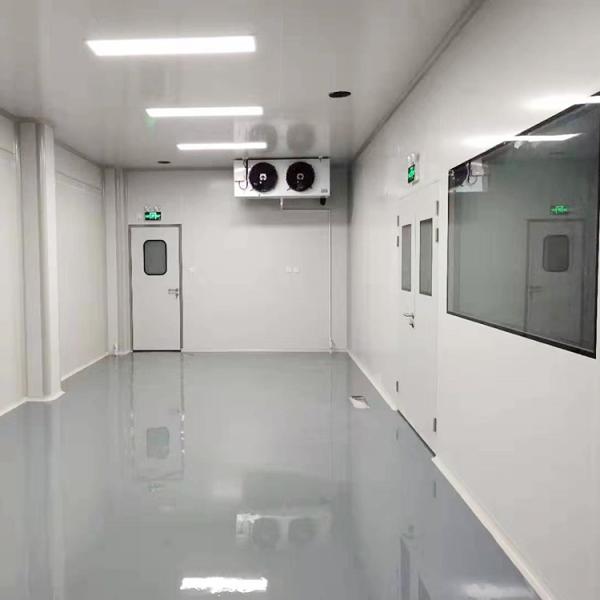

Our project:

50cbm 15tons Insulated Doors Cold Room With Energy Saving

50cbm 15tons Insulated Doors Cold Room With Energy Saving

Detailed description:

Condensing unit

Condensing unit: Bitzer, Copeland, Maneurop, Fusheng,etc.
Controller: PLC controller.
Insulation Panel: PU, EPS.
Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider

 50cbm 15tons Insulated Doors Cold Room With Energy Saving
50cbm 15tons Insulated Doors Cold Room With Energy Saving

Cold room insulation panel

use 100%polyurethane insulation panel,density about 38~46kg/m3,with gasket,with flame retardant,panel thickness:100mm~200mm, standard width of panel is 960mm

Walk in cooler room doors:

Swing door,Return Door and sliding door for choice.

Swing door:manual opened,automatic,etc.

Door board made with special pressing technology PU material.

Door frame:color steel or stainless steel.

Surface material:color steel or stainless steel with protecting film.

 50cbm 15tons Insulated Doors Cold Room With Energy Saving

Cold storage installation:

50cbm 15tons Insulated Doors Cold Room With Energy Saving

Our Services
1) Video service for installation
2) Accept OEM,ODM
3) 24 hours technical support and after sales services
4) Lifetime with professional engineer support.
5) Within 1 year, supply spare parts for free if the cold room for vegetables has manufacturer quality problem with convincing evidence.
