1. The cold room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel and durable for anti-scratch.
4. The hinged door panel of our cold room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasteners for tight connection and sealing of the cold room.

Cold storage specifications:

Product display:

Polyurethane panels:

Polyurethane panels specification

Standard Coldroom is Polyurethane panels are of 100% Polyurethane insulation, they have certain dimension, standard width is 1183mm, the maximum length is 12 meter. Equipped with highly efficient refrigeration units. Panel has a flame retardant.
Standard Coldroom is Polyurethane panel steel finish.
A. Stucco embossed aluminum
B. Stainless steel
C. Painted galvanized steel
D. PVC steel

Panel thickness
Panel THK(mm) Operating Temp.
50mm 5C (or above)
75mm -5C(or above)
100mm -25C (or above)
150mm -45C (or above)
200mm -55C (or above)

Our panel advantage

1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

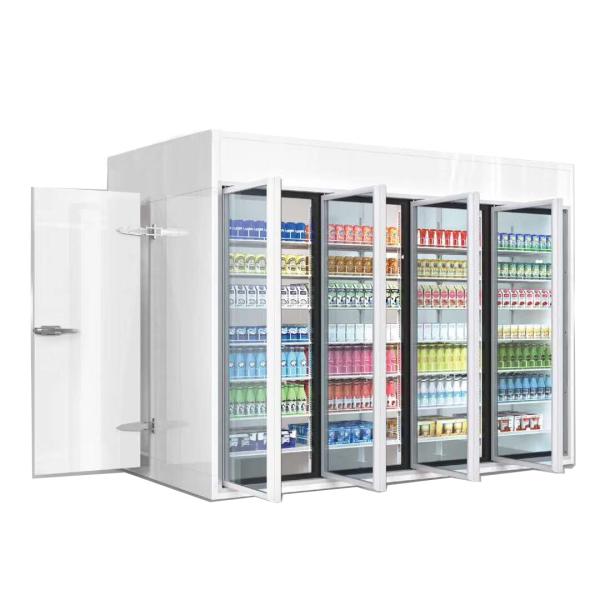

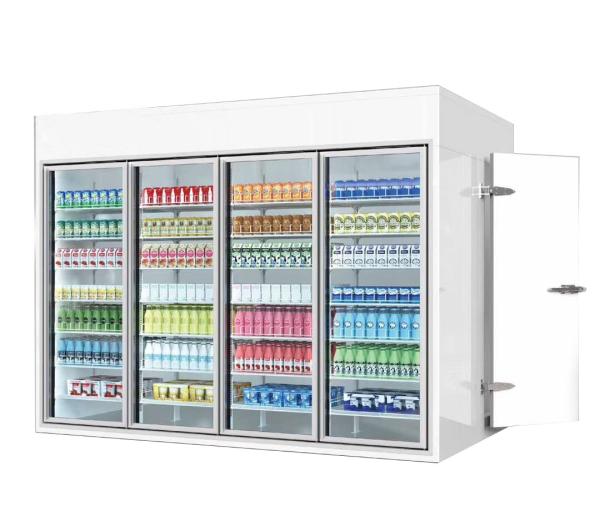

Glass door:

In order to facilitate design and installation, the standard dimensions of glass door cold storage are as follows:

Condensing unit:

We use the world famous compressor like German Bitzer, American Emerson, etc.
It is easy to operate the automatic high-precision digital controller with high efficiency.

Evaporator(Air cooler):

Other Accessories:

Packaging and delivery:

Cold room panels(PU sandwich panel) and doors will be packed by PVC film, refrigeration equipment will be packed by wooden case.
We have professional shipping companies like MSK,CSCL,CNC,COSCO,APL to support us on shipment. Your cargos will be delivered to you safely and quickly. We'll also choose the most suitable way and lowest delivery cost for you.

Installation:
Step 1:Floor panel
Step 2: Wall panel
Step 3: Ceiling panel
Panels will be marked according to drawing and connected by cam locks, you just need to lock different panels together, then seal them with sealant to keep sealed.
