Self Service 3P 3500w Automatic Ice Making Storage Freezer
Self Service 3P 3500w Automatic Ice Making Storage Freezer
Self Service 3P 3500w Automatic Ice Making Storage Freezer
Self Service 3P 3500w Automatic Ice Making Storage Freezer
Specifications
Brand Name :
OEM
Model Number :
ICE-300S
Certification :
ISO2001
Place of Origin :
Foshan City
MOQ :
1 unit
Price :
Negotiable
Supply Ability :
3000 units per month
Delivery Time :
10days
Packaging Details :
Carton
Dimension :
W120cmD100cmH220cm
Style :
ice vending machine for sale
Power :
3500w
Payment System :
QR code
24 hours capacity :
450KG/20℃
Ice cube size :
22mm×22mm×22mm
Ice mold cell number :
540
Compressor power :
3P
Refrigerant :
R404a
Ice making type :
Circulating spray
Cooling type :
Fan cooling
Warranty :
1 Year
Description

Automatic Ice Making And Ice Storage, Self-service Ice And Water Vending Machine

1. Luxurious waterproof carbon steel cabinets, the front door open design , safety and health , durable and easy installation.
2. Advanced RO purification techniques, 9 levels effective water treatment, the water quality accord with the national standards.
3. Adopt efficient spray ice film to make ice, automatically supply pure water, make ice, take off ice, stop, output bag, output ice.
4. Intelligent coin and induction IC card self-service techniques, billing accuracy reaches $0. 1.
5 use energy efficient ice mold cycle spray making ice technology , ice-cube is square and crystal clear .
6 High efficient and stable bagging technology ,achieve output bag, divide bag, bag ice seal ,and so one ,all is automatic.
7 It’s convenient to replace filters, and easy to maintain.
8 There are two options of bulk ice and bag ice to satisfy different requirements.

Parameters:

No.

Item

Parameter

1

Power Supply

Ac 220V-50Hz/ Ac 110V-60Hz

2

Consumption

3.5KW

3

Rated Current

220V 16A/110V 32A

4

Capacity Of Ice

450KG/24H(20°C Temperature )

6

Size Of The Ice-Cube

2.2cm×2.2cm×2.2cm

7

Capacity Of Ice Mould Space

540 Space

8

Spec Of Compressor

3P

9

Refrigerant

R404a

10

Cooling Method

Spray Cycling Spray

11

Radiating Method

Air (Can Customize Water Cold )

12

Capacity Of Ice Tank

200KG

13

Material Of Ice Tank

Stainless Steel 304

14

Water Source

Municipal Tap Water

15

Sales Method

Induction IC Card/Coin

16

Dispensing Ice

Bulk Ice/Bag Ice

17

Bag Ice

Auto Output Ice, Divide Bag, Measure Bag Ice, Seal (All Is Automatic )

18

Bag Size

22cm×50cm(2kg/bag)/22cm×75cm(4kg/bag)

19

Bag Thickness

0.05mm(Single Layer)

20

Range Of Bag Ice

1KG To 5KG

21

Capacity Of Inside Storage Bag

About 300 Pcs

22

Size Of Bulk Ice Tank

W45cm×D35cm×50cm (Incubator Within The Size)

23

Machine Size

W120cm×D100cm×H220cm

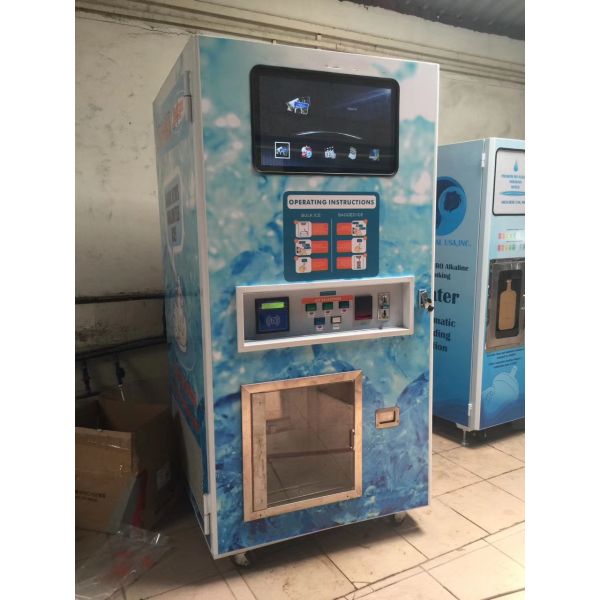

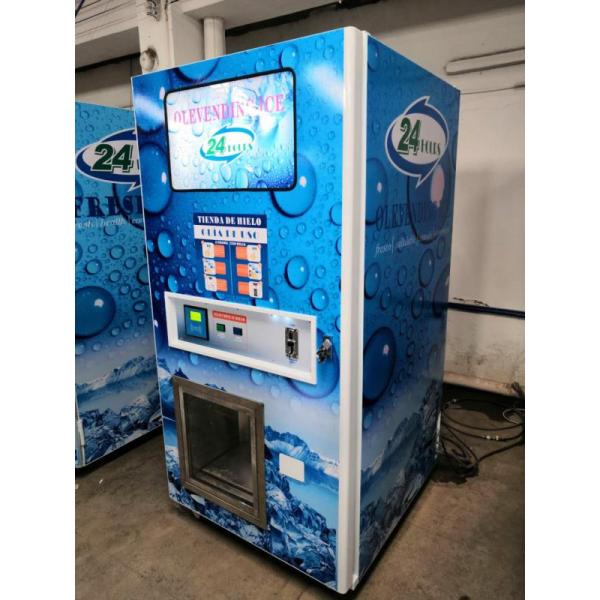

Product display:

Self Service 3P 3500w Automatic Ice Making Storage Freezer

Self Service 3P 3500w Automatic Ice Making Storage Freezer

Key features:

Self Service 3P 3500w Automatic Ice Making Storage Freezer

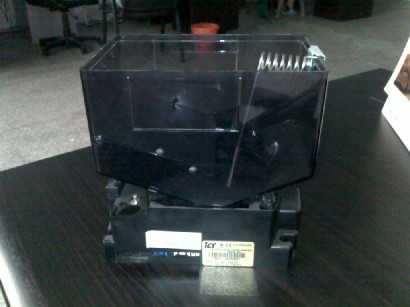

Coin acceptor


1. Receive pulse signal
2.can receive 5 kinds of different coins.

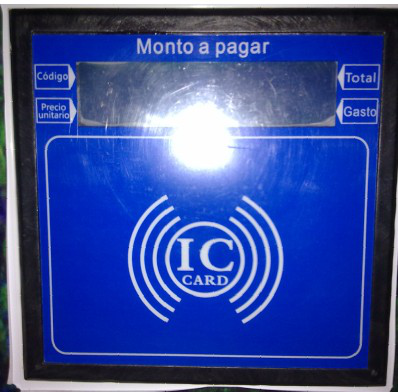

IC card reader


Can read induction cards when the cards near the induction area.

 Self Service 3P 3500w Automatic Ice Making Storage Freezer
Self Service 3P 3500w Automatic Ice Making Storage Freezer

Coin changer for only 1 kind of coin


Can give change only one kind of coin

Non-MDB bill acceptor


Receive pulse signal

 Self Service 3P 3500w Automatic Ice Making Storage Freezer
Self Service 3P 3500w Automatic Ice Making Storage Freezer

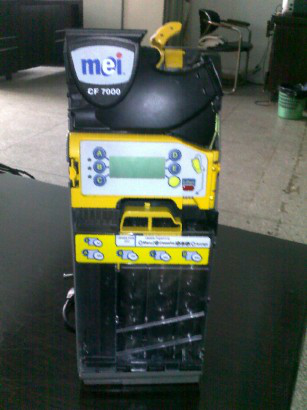

MDB coin changer, Normally with Coinco Brand


1.MDB protocol
2.Sort and separate coins, intelligent give change of several kinds of coins

Self Service 3P 3500w Automatic Ice Making Storage Freezer

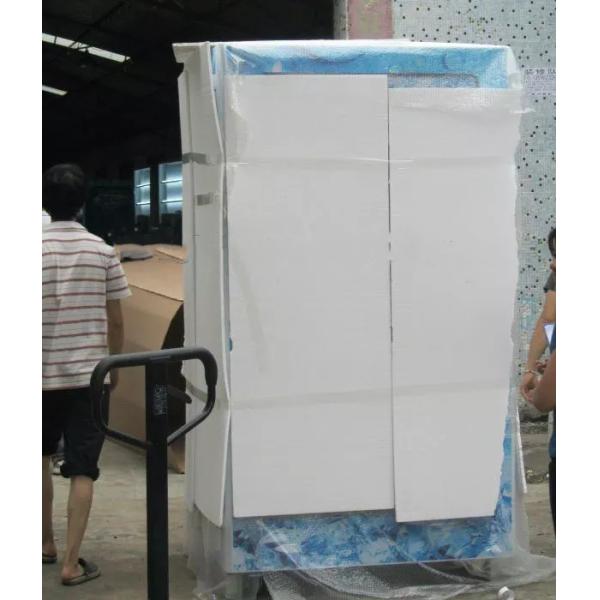

Package:

Self Service 3P 3500w Automatic Ice Making Storage Freezer
