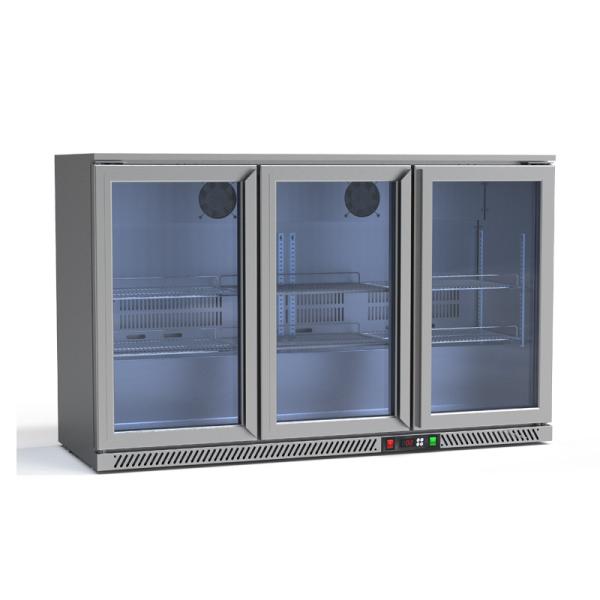

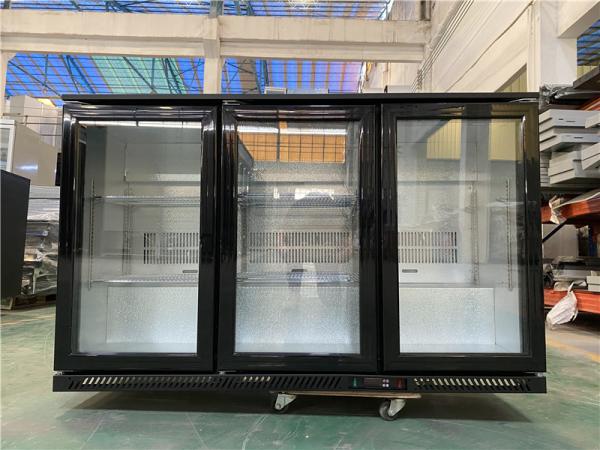

Commercial beer drink cooler glass door under counter mini bar fridge
Main features:
Digital temperature controller
Iron tube condenser&plate evaporator
Donper compressor refrigerant R290
Hinged door/sliding door are available
Inside embossed aluminum material
Efficient cooling system , low noise design.

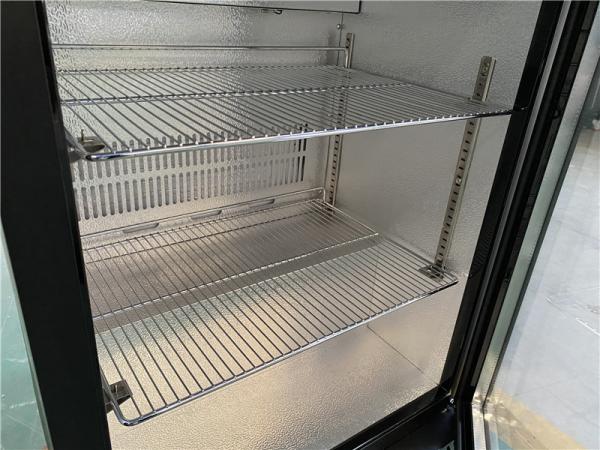

Moveable shelf can be adjusted according to different requirement.
Intensive circulating design,self-motion defrost great velocity of freezing.
Double layer tempered glass with argon injected in,food stuff can be displayed clearly.
Equipped with rotary caster,moving around is so easy and save labor.
Beer cooler Technical Features | |||||
MODEL | RB-150H | RB-220H | RB-220HS | RB-320H | RB-320HS |
Net (Liters) | 145 | 205 | 205 | 304 | 304 |
Door number | Single door | Double doors | Double doors | Triple doors | Triple doors |
Cooling system | Fan cooling | ||||
Auto-Defrost | Yes | ||||
Thermostat | Digital controller | ||||
External Dimension WxDxH(mm) | 595x536x840 | 900x536x840 | 900x536x840 | 1350x536x840 | 1350x536x840 |
Package dimensionWxDxH(mm) | 645x560x890 | 950x560x890 | 950x560x890 | 1400x560x890 | 1400x560x890 |
Power consumption (kw.h/24h) | 4 | 4.3 | 4.3 | 5.2 | 5.2 |
Glass Door type | Hinge door | Hinge door | Sliding door | Hinge door | Sliding door |
Door frame, door handle material | PVC | ||||
Glass type, (tempered)* | TEMPERED GLASS | ||||
Door Auto Closing | Auto Closing | ||||
Type | CYCLOPENTANE | ||||
Adjustable shelves (pcs) | 2 | 4 | 4 | 6 | 6 |
Internal light vert./hor.* | Horizontal*1 | ||||
Voltage/frequency | 220~240V/50HZ | ||||
Cabinet Tem. 0C | 0-10 0C | ||||
Temperature digital screen | Yes | ||||
Climate Class As per EN441-4 | Class 3 ~ 4 | ||||
Refrigerant (CFC-free) gr | R600a | ||||
Outer Cabinet | Pre-painted steel black color | ||||
Inside Cabinet | Embossed aluminium | ||||
Weight(KG) | 47 | 62 | 62 | 84 | 84 |
Loading qty(40HQ/20GP) | 225/74 | 150/48 | 150/48 | 99/32 | 99/32 |
1. OEM /ODM is welcome for bulk orders.
2.For the power supply, our standard products are 220V/50HZ.If you want to change it into 110/60hz,contact us.
3.We provide custom-made service for the power supply, plug, logo, size, style, etc.
