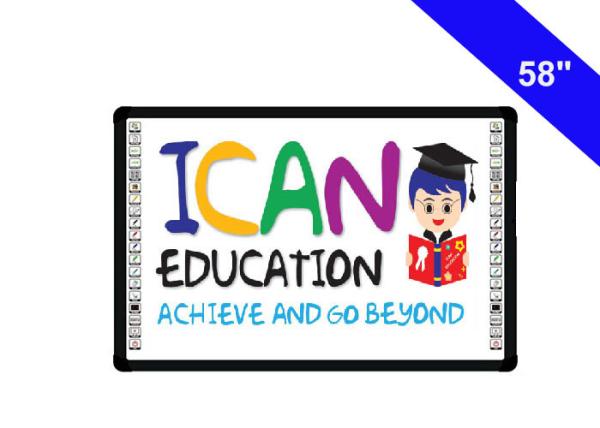

58 Digital Touch Screen Interactive Whiteboard In The Classroom USB Cable Power Supply
58 Digital Touch Screen Interactive Whiteboard In The Classroom USB Cable Power Supply
58 Digital Touch Screen Interactive Whiteboard In The Classroom USB Cable Power Supply
58 Digital Touch Screen Interactive Whiteboard In The Classroom USB Cable Power Supply
Specifications
Brand Name :
ZXT
Model Number :
ZXT-WP580AT
Certification :
CE/Rohs/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
10~20 working days after your confirmation
Packaging Details :
Packed in wooden case as outher package
Whiteboard Type :
Interactive Whiteboard
Panel size :
50"
OS :
windows or Android system is optional
Power supply :
Power by USB cable
Process rate :
12 m/second
cursor speed :
180 points/second
Description

58" Digital Touch Screen Interactive Whiteboard In The Classroom USB Cable Power Supply

1, Products Summary :

Interactive whiteboard is a new large interactive touch-sensitive system designed for education, business, military and other fields. The frame is made from silver-aluminum and eco-friendly material to meet everyone’s taste. The surface is made from new nanotechnology stearin wear-resistant paint sub-light projector film, tear proof, high-definition, easily cleaned (Board cleaner or wet cloth), no projection light spots, easily writing on, and chemical resistant. The back of board is made of aluminum honeycomb board, non-transformable, blow resistance, and lasts as long as 10 years.

2, Our advantages

1), Free drive and support Windows,Mac,Linux Android.

2), Calibration accuracy,simple 4points calibration can be ok even when the projection area displays a big trapezoid.

3), Brushed aluminium appearance not only can protect the circuit,make sure the board surface is smooth but also add a sense of technology

4), We choose good quality infrared filter which is strong toughness and it can be integrated perfectly with our aluminium frame. Human eyes can not see pcb board inside(make sure the beauty)and it is very fastening. Besides,it can not be moved by hand.

5), Product is easy to use.Just connect whiteboard USB to pc and start the software it can work.

6), PCB board location can be random and this simplify the production.It also make after-sale service much easier.

7), Free firmware update just by USB cable.

8), Network remoteness control is possible and this help to seek problems and solve problems.

9), Low power consumption.Tacteasy board power consumption is lower than 120MA.

58


4, Product Specification

Screen Panel size 58 inch
Viewing Area 1270.08 X 721.44mm
Resolution 1920 X 1080(pixels)
Brightness 400 cd/m2 nits(typ.)
Contrast 5000 :1 (typ.)
Pixel 0.334mm X 0.334mm
Visual Angle 178°(H)/178°(V)
Color 1.07G
Response Time 6.5ms
Life 50,000hrs(mini.)
TV TV Mainoard PAL, NTSC/SECAM(Optional)
Input

RFX1, TV-USBX2, CVBS X2(AVX1), HDMIX3(built-inx1),

VGAX1, PCAUDIOX1,YPBPRX1, RFX1, RS232X1, S-videoX1, Touch-usbX1
Output AVOUTX1, EARPHONEX1
I/O Optional Input : TV-USBX1, VGAX2, PCAUDIOX2 ; Output : VGAX1
Android Solution System Version Android 4.4.2 OS ; English language
Mainboard ARM Cortex A7, 1.4Ghz, Quad core ;
Memory RAM : 2GB DDR3, ROM 8GB
I/o ports Input Port(option)

HDMI *3,VGA*1,PC-Audio*1,YPbPr *1,AV*1,TV*1,
TV-MIC*1, RS232*1, UHD*2
Output Port

HDMI *1, AV*1, Earphone *1, coaxial *1, TV-AUDIO*1,
RS232*1
Touch System Other Port(option)

LAN*1, Media-USB2*1, PC-USB*1,Touch-USB*2,Media-USB*1,
PC-USB*2
Technology

Infrared multi touch,real 6 points to 10 points,support touch
by any opaque object(Such as finger or whiteboard pen)
Glass

4mm tempered glass, transparency rate >88%, resolution :
32768 X 32768, against light interface.
Technical Parameter

response time : 15ms,accuracy<2mm; power by USB port,
Voltage : DC 5v±6%, Power : 0.9W
Compatible System

Multi point touch : Window 7/8,Window 7 professional,
Window 7 Home Premium, Android(need add patch to
system code) ; Single point Touch : Window 7/ Windows XP/
Vista/Linux/Mac/Android/Wince

Built-in PC
(option)

 CPU

Intel Core I7 / i5/ i3 ; Integrated HD Graphics; Built-in HD
audio 6(Realtek ALC661)
Memory DDR3 1333Mhz 4G/8G option
HDD SATA 500GB/1TB option
WIFI Optional, WIFI with Antenna, 802.11 b/g/n
PC ports

HDMI x 1, VGA x 1, USB x4, RJ45 x1,Pcaudio X1, Rs232 X1,
DC 19V X1
Power Consume Max <200W
Standby ≤0.5W
Environment Working

Temperature : 0℃ ~ 40℃,
Humidity: 20%~80% non-condensing
Storage Humidity: 10%~90% non-condensing
Outlooking Material&Color Front case-metal ; backside : Plastic, Color : Black
Vesa Mount 600mm x 400mm(4-M8)
Dimension Product Dimension 1365.9 x 817.3 x 119.32mm

Package Dimension

 1475 x 910 x 215mm
CBM 0.3
Net Weight 54kg
Gross Weight 65kg
Accessory Remote Control *1, Power Cable *1, Touch Pen*2,User Guide*1,Warranty Card *1

58
We will default I3 processor as standard configuration of internal PC for touchscreen PC if you have no special configuration requirements in your inquiry,



5, Product Application

58

We are full of confidence and earnestly hopes to have your joint to enlarge our business, establish the health and long business relationship in the near feature. Welcome to visit us ! And please feel free contact with us for any order discussion !

If you have any other questions, please contact our salesman as soon as possible.


Email : kevin@zxtlcd.com

Skype ID : +8618814488091

Whats App ID : +8618814488091

Viber : +8618814488091

Wechat ID : ZXT18098949445

Twitter ID : Vinition

Facebook ID : kevin518112

Linkedin ID : 18814488091
