HD ultra narrow bezel lcd video wall high resolution industrial LCD display
HD ultra narrow bezel lcd video wall high resolution industrial LCD display
Specifications
Brand Name :
ZXT
Model Number :
ZXT-D3D550H
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after payment
Packaging Details :
Carton Box, Wooden Box or Flight Case
Panel Size :
55" LED Screen
Bezel Width :
5.3mm (between Screens)
Resolution :
1920X1080 (FULL HD )
Display Area :
1209.6(H)x680.4(V)mm
Visual Angle (H/V) :
178/178 ̊
Brightness :
700nits
Product Weight :
37KG
Remote controller :
yes
Video wall controller :
yes(Built-in each screen)
Splicing software :
yes
Description

HD ultra narrow bezel lcd video wall high resolution industrial LCD display

1, Product introduction

A video wall is a special multi-monitor setup that consists of multiple computer monitors,television sets tiled together contiguously or overlapped in order to form one large screen. Screens specifically designed for use in video walls usually have narrow bezels in order to minimize the gap between active display areas, and are built with long-term serviceability in mind. Such screens often contain the hardware necessary to stack similar screens together, along with connections to daisy chain power, video, and command signals between screens. A command signal may, for example, power all screens in the video wall on or off, or calibrate the brightness of a single screen after bulb replacement.

Reasons for using a video wall instead of a single large screen can include the ability to customize tile layouts, greater screen area per unit cost, and greater pixel density per unit cost, due to the economics of manufacturing single screens which are unusual in shape, size, or resolution.

Video walls are sometimes found in control rooms, stadiums, and other large public venues.

Simple video walls can be driven from multi-monitor video cards, however more complex arrangements may require specialized video processors, specifically designed to manage and drive large video walls.Software-based video wall technology that uses ordinary PCs, displays and networking equipment can also be used for video wall deployments.

Video walls are not limited to a single purpose but are now being used in dozens of different applications. The global video wall market is expected to double by 2020 as technology continues to advance.

HD ultra narrow bezel lcd video wall high resolution industrial LCD display

2, product specification :

.

Panel Specification
Model No VD-D3D550CH
Panel Size 5.3MM
Aspect Ratio 16 : 9
Active Display Area 1209.6(W) x 680.4(H)
Backlight LED
Max Resolution Support 1920x1080(Max)
Color 16.7M
Brightness(nits) 700nits
Contrast 4500 : 1
Visual Angle (H/V) 178°/178°
Response Time <6ms
Life(hrs) >50,000(hrs)
Video Wall Controller(Built-in each screen)
VGA input 1
DVI input 1
HDMI Input 1
Composite Video input 2(BNC x 2)
Y,Pb,Pr/Y,Cb,Cr input 1(BNC X 3)
Composite Video Output 2(BNC X 2)
S-video 2(BNC X 2)
Control signal input and loop out RS232(RJ45-8)
Split Screen (Matrix is optional) Support Picture in Picture(PIP/POP)
Video System
Color System PAL/NTSC/SECAM
HDTV Mode 480P, 576P, 720P, 1080P
OSD Display(Menu Language) Chinese/English
Power
Power supply AC 100V ~ 240V, 50/60Hz
Maximum Power Consumption <300W
Standby Power Consumption <3W
Temperature
Working Temperature 0° ~ 50°
Storage Temperature 20° ~ 60°
Working Humidity 20%~80%
Storage Humidity 20%~80%
Installation System
Installation With wall bracket for each single unit lcd
Gross Weight 37kg
Dimension 1215.3X686X137 mm
Accessories
Split LCD Unit Yes
Bracket Yes(wall bracket for each single unit lcd)
Power cable Yes
Remote controller Yes
Video wall controller Yes(Built-in each screen)
Splicing software Yes

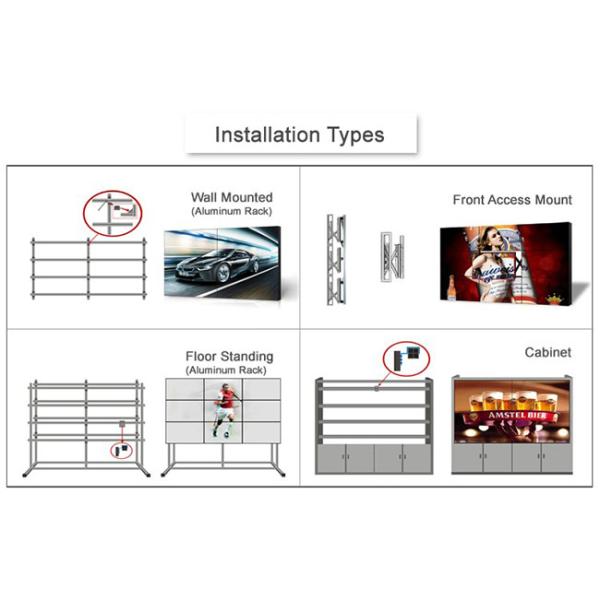

3, Installation Types.

HD ultra narrow bezel lcd video wall high resolution industrial LCD display

Which one video wall installation type can meet your requirements ? Please confirm installation type with our salesman. If you have any other question, please contact our salesman as soon as possible.
