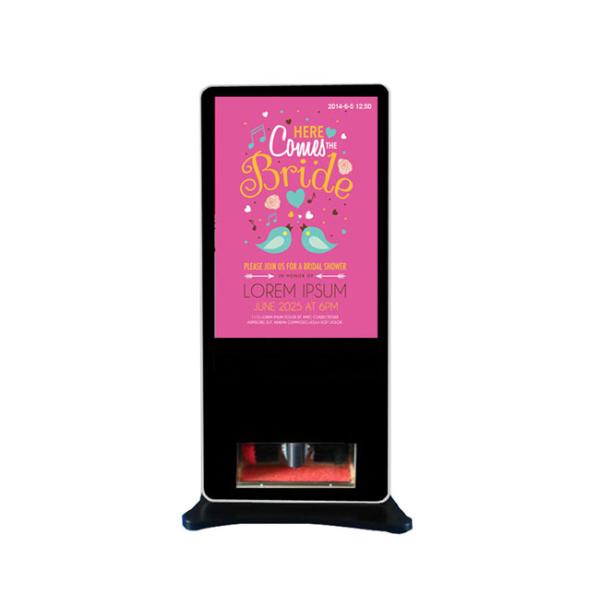

Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode
Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode
Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode
Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode
Specifications
Brand Name :
ZXT
Model Number :
ZXT-KU420CSP
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000pcs per month
Delivery Time :
5~10 working days after your confirmation
Packaging Details :
Packed in carton firstly, reinforced with wooden case as outer package
Panel size :
42"
Max Resolution :
1080 X 1920
Display area(mm)/mode :
521mm(H) X 927mm(V)
Pixel Pitch(mm) :
0.484(H)×0.484(V)
Brightness (nits) :
350cd/m2
Contrast :
1000:1
Description

Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode

1, The working Principle of Standalone version digital signage :

The PCB support Plug-and-Play function. You need save those ads content in USB memory card firstly, and then, when you plug memory card into the card slot, the screen will auto display video or photo. When you need update ads content in original USB memory card, you only need use USB copy by manual operation .

2, The specification of internal Standalone version media player

Main Feature Plug-and play, Auto loop play when power on
Chipset MCU
RAM 512
OS Linux
Network No
Input card slot 2 x USB2.0
Storage Media Default USB(SD card is optional)
Download Media Auto copy from USB
External storage Support 2G ~ 32GB
OSD language Chinese / English
Display Effect Support 720P/1080P Full HD video/Photo
Support Video Formats AVI,MPEG1,MPEG2,MPEG4,VOB and DIVX(5.0/6.0)
Support Audio Formats MP3
Support Photo Formats JPG
Support Doc formats TXT
Audio Output Built-in Power amplifer
Playback Mode Repeat one/all, choose to repeat playback one file or all the files
Power Supply AC 100~240V

Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode

3, The Product Specification :

Panel size 42"
Display area(mm)/mode 521(H) X 927(V)
Maximum resolution 1080 X 1920
Display color 16.7M
Pixel Pitch(mm) 0.484(H)×0.484(V)
Brightness (nits) 350cd/m2
Contrast 1000 : 1
Visual angle 178/178/178/178°
Response time 8ms
Life(hrs) 50,000(hrs)
Max Power Consumption 240W

4, The Features of Standing advertising display(Standalone Version)

Ads updated type

USB copy by manual operation
Plug-and-Play Plug-and-play /No windows OS, Auto loop play when power on
Playback Mode Repeat one/all, choose to repeat playback one file or all the files
Daily timer switch Power can turn on/off automatically at the designated time every day
Play logs Auto generate all detailed play record in memory card
Photo slide show The interval time can be adjusted, 5s/10s/15s/30s/60s/120s/180s is optional
Date-time display

Built-in Clock and Calendar, After you setting up date/ time, it can show them
Timing function It can create five sets of timing periods a day, settable in a week(7 days) with 24hours unmanned management
DIY Boot Screen User can use any JPG picture files as boot screen, or even video capture
Logo Display

User can make a JPG picture(240X240 pixel) of own logo,the upper left-hand corner

of screen will show this logo when play video or photo.
Playlist Function

We can offer you playlist software, you can edit those ad files which stored in memory

card, it will automatically play them one by one in the specified order
Scrolling marquee You can set up background color,font size and how fast marque scrolling
Ads spots

Some one advertisement(like your company promotion video) can auto insert into the

one which is curently playing video ads,you can set up the interval time, such as 10

minutes or 20minuts
Split-screen

Free to split screen, many mode to select(options are full screen,two split screens,three

split screens and so on) according to your needs.
Breakpoint memory

Enabling resumption of playing the present playing content on breakpoint memory which

the machine automatically recorded in case of breaking.
Time Volume User can set up different volume at different times, different db volume for morning and night separately, or holidays and special occasions.
Anti-theft lock It can prevent U disk and broadcast content from theft, At the same time, the content can be encrypted.
Scratch-resistant Screen surface with ultra-thin, high-transparency toughened glass or acrylic protection layer to protect the LCD screen from artificial damage
Installation Standing (An optional that we can install wheels to make the machine more mobile unless you need)

Digital Signage Kiosk 42 Inch Touch Screen Monitor Circulation Play Mode

5, Product introduction:

42 inch Kiosk floor standing Advertisement Screen is a LCD Display with an integral media player, Media files are stored and played back from internal SD card. When you boot the machine up, it would auto read those files (video/photo)from memory card simple one. Ad content can be created easily via wifi digital signage which allow advertisers to combine audio, video, image and interactivity by themselves. Digital signage are used for many different purposes. It helps to engage users and also helps advertisers to gain insight in customer behaviors. Ad contents displayed on the signage is presented in one of the following formats:

A, Text - Scrolling text. Either scrolling text, or text dynamically updated via external newsfeed source.

B, Images - Scrolling images, usually in the format of digital advertisement posters.

C, Video - Usually in the format of commercial TV advertisements.

If you have any other questions, please contact our salesman as soon as possible.

Email : kevin@zxtlcd.com

Skype ID : +8618814488091

Whats App ID : +8618814488091

Wechat ID : ZXT18098949445

Twitter ID : Vinition

Facebook ID : kevin518112

Linkedin ID : 18814488091
