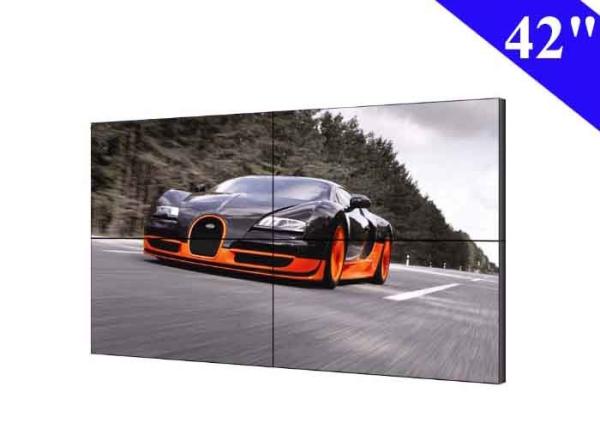

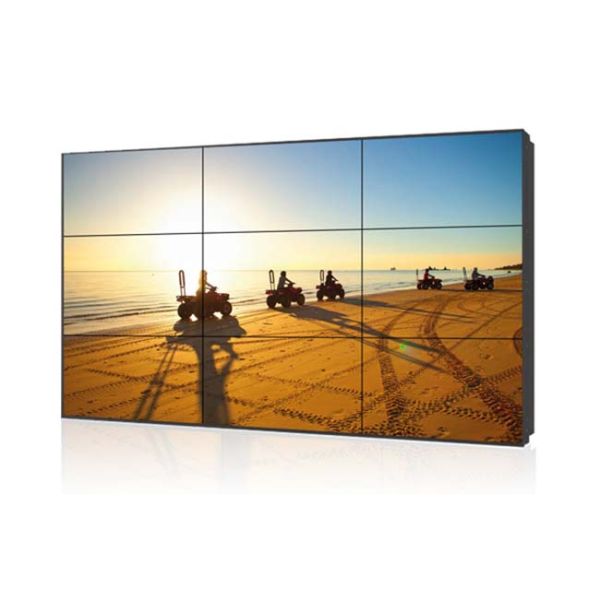

Full HD 2X2 DID video wall 42 inch lcd with 22mm screen bezel tv walls
Full HD 2X2 DID video wall 42 inch lcd with 22mm screen bezel tv walls
Specifications
Brand Name :
ZXT
Model Number :
ZXT-D2D420A
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after payment
Packaging Details :
Carton Box, Wooden Box or Flight Case
Panel Size :
42" LED Screen
Bezel Width :
22mm (between Screens)
Resolution :
1366X768
Aspect Ratio :
16 : 9
Composite Video Input/(AV) :
3(3xBNC)
Composite Video Output :
2(2xBNC)
Description

Full HD 2X2 DID video wall 42 inch lcd with 22mm screen bezel tv walls

1, Product introduction

LCD video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. our video wall use Samsung or LG high definition DID-LCD glass and stable LED back light for panel makes the panel stable and long working time as 7days and 24hours, high resolution up to 4K display. Driving & powerful monitor control board with multi types contectors as HDMI, VGA, DP and AV makes our video could meet various working scenes. Also, be based on few years experience and feedback from our client, our video wall unit not only can be use for landscape position but also could be portrait.

2, The solution of Video Wall

Our LCD&LED Video Wall provide many kinds of solutions with variety of signals. Our LCD Video Wall is easy to install and maintain, with high stability and reliablity, Providing cost-effective products and customer-oriented services. We are not just selling the complete set of equipment but also technical support service.

In general , our price usually only include original DID LCD or LED screen panel with video wall controller, free control software. Easy installation bracket and related accessories(HDMI Splitter and Rj45 cables, Power cables). As for other devices, you need prepare them by yourself. Our quotation not include PC, and connection matrix. Unless you need PC and connection matrix from us here, we can also buy them for you from the market. Besides, if you have a large project and need some help from our company. We can also arrange our engineer to go to your country to provide the indoor installation and equipment debugging service if you would like to afford the related expense of traveling.

Full HD 2X2 DID video wall 42 inch lcd with 22mm screen bezel tv walls

3, Product Specification

Panel Specification
Model No VD-D2D420A
Panel Size 22MM
Aspect Ratio 16 : 9
Active Display Area 919.296(W) x 517.104(H)
Backlight LCD
Max Resolution Support 1366x768
Color 16.7M
Brightness(nits) 700nits
Contrast 3000 : 1
Visual Angle (H/V) 178°/178°
Response Time <6ms
Life(hrs) >50,000(hrs)
Video Wall Controller(Built-in each screen)
VGA input 1
DVI input 1
HDMI Input 1
Composite Video input 2(BNC x 2)
Y,Pb,Pr/Y,Cb,Cr input 1(BNC X 3)
Composite Video Output 2(BNC X 2)
S-video 2(BNC X 2)
Control signal input and loop out RS232(RJ45-8)

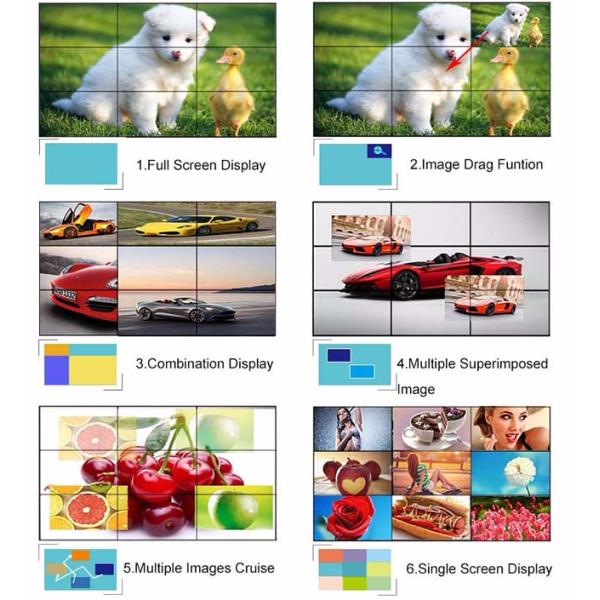

Split Screen (Matrix is optional) Support Picture in Picture(PIP/POP)
Video System
Color System PAL/NTSC/SECAM
HDTV Mode 480P, 576P, 720P, 1080P
OSD Display(Menu Language) Chinese/English
Power
Power supply AC 100V ~ 240V, 50/60Hz
Maximum Power Consumption <250W
Standby Power Consumption <3W
Temperature
Working Temperature 0° ~ 70°
Storage Temperature 20° ~ 60°
Working Humidity 5%~95% RH
Storage Humidity 20%~80%
Installation System
Installation With wall bracket for each single unit lcd
Gross Weight 25kg
Dimension 1025.65X579.84X126.73 mm
Accessories
Split LCD Unit Yes
Bracket Yes(wall bracket for each single unit lcd)
Power cable Yes
Remote controller Yes
Video wall controller Yes(Built-in each screen)
Splicing software Yes

Full HD 2X2 DID video wall 42 inch lcd with 22mm screen bezel tv walls
