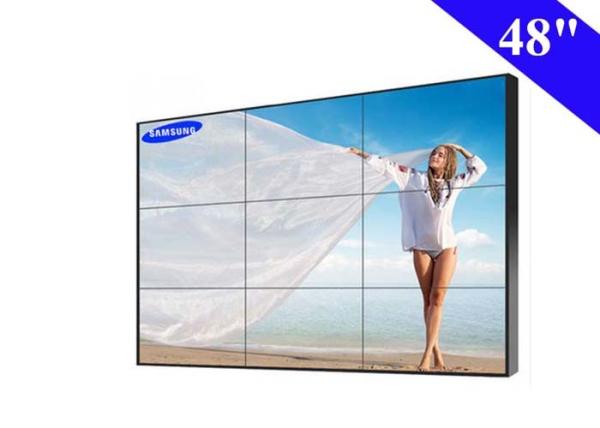

Ultra narrow bezel seamless DID lcd video wall for rental exhibition show
Ultra narrow bezel seamless DID lcd video wall for rental exhibition show
Specifications
Brand Name :
ZXT
Model Number :
ZXT-D3D480A
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after payment
Packaging Details :
Carton Box, Wooden Box or Flight Case
Panel Size :
48"
Bezel Width :
15mm
Brightness :
700nits
Panel Type :
DID-LCD
Power Input :
100V ~ 240V
Stock situation :
No
Description

Ultra narrow bezel seamless DID lcd video wall for rental exhibition show

1, Description :


This model uses a liquid crystal display (LCD) of amorphous silicon TFT as switching components. This model is composed of a TFT LCD panel, a driver circuit, and an ass’y KIT of source PBA. This 48.0”
model has a resolution of a 1920 x 1080 and can display up to 16.7 million colors with the wide viewing
angle of 89° or a higher degree in all directions. This panel is designed to support applications by
providing a excellent performance function of the flat panel display such as home-alone multimedia TFT-
LCD TV and a high definition TV.

We provide many kinds of solutions with variety of signals. Our LCD Video Wall is easy to install and maintain, with high stability and reliability,Providing cost-effective products and customer-oriented services.we are not just selling the complete set of equipment but also technical support service.


In general, our offer only includes Original DID LCD or LED Screen Panel with video wall controller, free control software, Easy installation bracket and related Accessories(VGA Cables or RJ45 Cables, Power Cables). As for other devices, you need prepare them by yourself, Our quotation not include PC, VGA/HDMI Splitter, RS232-RJ45 Connectors and Connection matrix, Unless you need them from us here, We can also buy them for you from the market. Besides, If you have a large project, need some help from our company. We can also arrange our engineer to go to your country to provide the in-door installation and equipment debugging service if you would like to afford the related expenses of traveling.

Ultra narrow bezel seamless DID lcd video wall for rental exhibition show

2, Product Specification


Panel Specification
Model No VD-D3D480A
Panel Size 15MM
Aspect Ratio 16 : 9
Active Display Area 1054.08(W) x 592.92(H)
Backlight LED
Max Resolution Support 1920x1080(Max)
Color 16.7M
Brightness(nits) 700nits
Contrast 5000 : 1
Visual Angle (H/V) 178°/178°
Response Time <6ms
Life(hrs) >50,000(hrs)

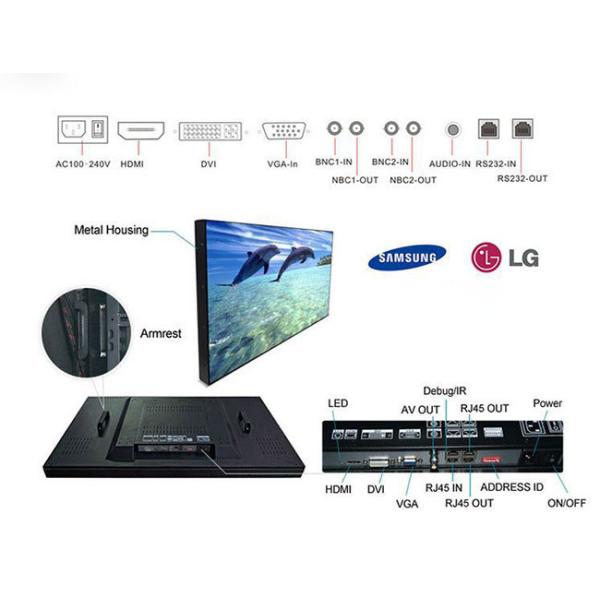

Video Wall Controller(Built-in each screen)
VGA input 1
DVI input 1
HDMI Input 1
Composite Video input 2(BNC x 2)
Y,Pb,Pr/Y,Cb,Cr input 1(BNC X 3)
Composite Video Output 2(BNC X 2)
S-video 2(BNC X 2)
Control signal input and loop out RS232(RJ45-8)
Split Screen (Matrix is optional) Support Picture in Picture(PIP/POP)
Video System
Color System PAL/NTSC/SECAM
HDTV Mode 480P, 576P, 720P, 1080P
OSD Display(Menu Language) Chinese/English
Power
Power supply AC 100V ~ 240V, 50/60Hz
Maximum Power Consumption <240W
Standby Power Consumption <3W
Temperature
Working Temperature 0° ~ 50°
Storage Temperature 20° ~ 60°
Working Humidity 20%~80%
Storage Humidity 20%~80%
Installation System
Installation With wall bracket for each single unit lcd
Gross Weight 35kg
Dimension 1067.2X608.5X128 mm
Accessories
Split LCD Unit Yes
Bracket Yes(wall bracket for each single unit lcd)
Power cable Yes
Remote controller Yes
Video wall controller Yes(Built-in each screen)
Splicing software Yes

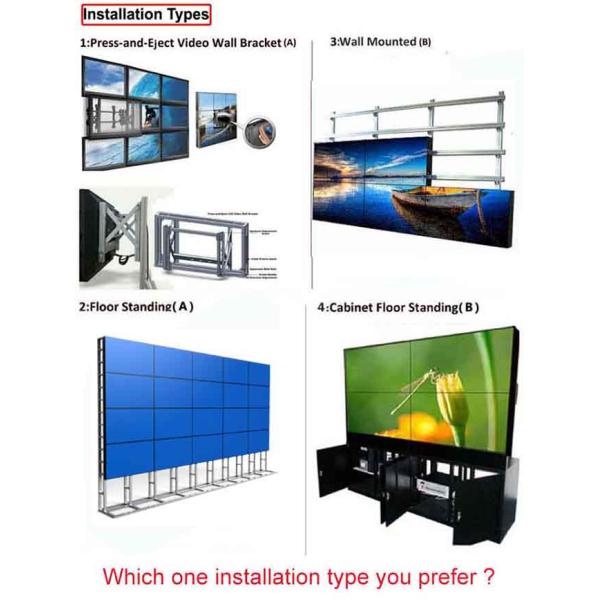

3, Installation Types.

Ultra narrow bezel seamless DID lcd video wall for rental exhibition show

Which one video wall solution can meet your requirements ? Please confirm the solution with our salesman. If you have any other question, please contact our salesman as soon as possible

If you have any other questions, please contact our salesman as soon as possible.

Email : kevin@zxtlcd.com

Skype ID : +8618814488091

Whats App ID : +8618814488091

Wechat ID : ZXT18098949445

Twitter ID : Vinition

Facebook ID : kevin518112

Linkedin ID : 18814488091
