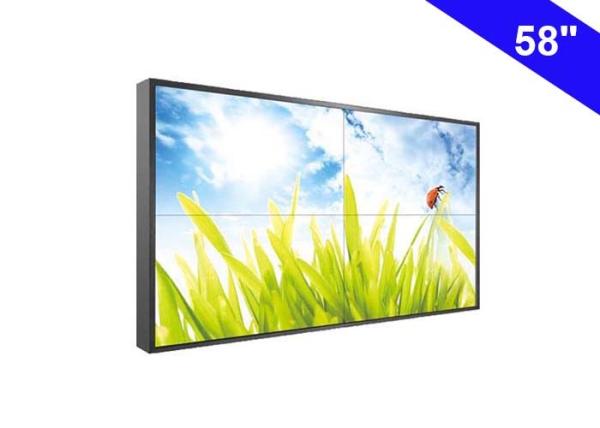

Big Size DID Splicing LCD Wall Mount Video Wall advertising media player
Big Size DID Splicing LCD Wall Mount Video Wall advertising media player
Specifications
Brand Name :
ZXT
Model Number :
ZXT-D3D580H
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after payment
Packaging Details :
Carton Box, Wooden Box or Flight Case
Panel Size :
58" LED Screen
Bezel Width :
3.8mm (between Screens)
Resolution :
1920X1080
Display Area :
1279.28(H)x734.44(V)mm
Visual Angle (H/V) :
178/178 ̊
Brightness :
800nits
Product Weight :
35KG
warranty time :
1 year
package :
wooden case
delivery time :
one week
Description

Big Size DID Splicing LCD Wall Mount Video Wall advertising media player

1, Product introduction

See your message displayed bold, bright, and big. Our LCD video wall displays are an ideal solution for demanding space-constrained control rooms. LCD displays can be stacked together to achieve virtually any screen size, setting a new standard for large format, high-impact display solutions. Your message is as limitless as your imagination. Built with high quality industrial grade components for demanding applications. LCD displays deliver you an unsurpassed image quality with incredible color depth and contrast. The LCD video walls solutions are available in High Definition (Full HD) Resolution (1920 x 1080).

2, Product Specification

Panel Specification
Model No VD-D3D580CH
Panel Size 3.8MM
Aspect Ratio 16 : 9
Active Display Area 1279.28(W) x 734.44(H)
Backlight LED
Max Resolution Support 1920x1080(Max)
Color 16.7M
Brightness(nits) 800nits
Contrast 4000 : 1
Visual Angle (H/V) 178°/178°
Response Time <6ms
Life(hrs) >50,000(hrs)
Video Wall Controller(Built-in each screen)
VGA input 1
DVI input 1
HDMI Input 1
Composite Video input 2(BNC x 2)
Y,Pb,Pr/Y,Cb,Cr input 1(BNC X 3)
Composite Video Output 2(BNC X 2)
S-video 2(BNC X 2)
Control signal input and loop out RS232(RJ45-8)
Split Screen (Matrix is optional) Support Picture in Picture(PIP/POP)
Video System
Color System PAL/NTSC/SECAM
HDTV Mode 480P, 576P, 720P, 1080P
OSD Display(Menu Language) Chinese/English
Power
Power supply AC 100V ~ 240V, 50/60Hz
Maximum Power Consumption <300W
Standby Power Consumption <3W
Temperature
Working Temperature 0° ~ 50°
Storage Temperature 20° ~ 60°
Working Humidity 20%~80%
Storage Humidity 20%~80%
Installation System
Installation With wall bracket for each single unit lcd
Gross Weight 37kg
Dimension 1215.3X686X137 mm
Accessories
Split LCD Unit Yes
Bracket Yes(wall bracket for each single unit lcd)
Power cable Yes
Remote controller Yes
Video wall controller Yes(Built-in each screen)
Splicing software Yes

3, Installation Types.

Big Size DID Splicing LCD Wall Mount Video Wall advertising media player

Which one video wall installation types can meet your requirements ? Please confirm the installaion types with our salesman.

If you have any other questions, please contact our salesman as soon as possible.

Email : kevin@zxtlcd.com

Skype ID : +8618814488091

Whats App ID : +8618814488091

Wechat ID : ZXT18098949445

Twitter ID : Vinition

Facebook ID : kevin518112

Linkedin ID : 18814488091
