Power Distribution Metal - Clad Drawable AC High Voltage Switchgear ​

Product description:

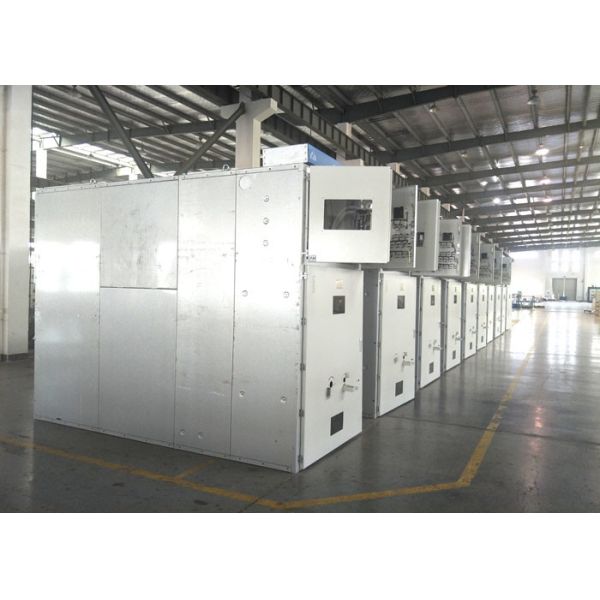

KYN61-40.5(Z) Air Insulated Metal-clad Switchgear is suitable for

application at three phases, 50Hz, 40.5kV power distribution system. This product has functions of protection, control and monitoring.

Service condition:

1. Ambient air temperature: -15°C~+40°C.
2. Altitude: ≤1000m.
3. Relative humidity : Daily average≤95%,monthly averange≤90%.
4. Earthquake intensity: ≤magnitude 8.
5. Applicable in the places without corrosive and flammable gas and water vapor.
6. Used in place without frequently intense vibrant.
Note: Customized products are available.

Technical Data:

No. Name Unit Data
1 Rated voltage kV 40.5
2 Rated current A 1250, 1600, 2000
3 Rated frequency Hz 50
4 Rated short time withstand current kA 20, 25, 31.5
5 Rated peak withstand current kA 50, 63, 80
6 Rated power frequency withstand voltage kV 95/1min
7 Rated lightning impulse withstand voltage kV 185
8 Rated duration of short circuit S 4
9 The degree of protection IP3X

Main Technical Data of the Vacuum Circuit Breaker

No. Name Unit Data
1 Rated voltage kV 40.5
2 Rated frequency Hz 50
3 Rated power frequency withstand voltage kV 95/1min
4 Rated lightning impulse withstand voltage kV 185
5 Rated current A 1250, 1600, 2000
6 Rated short time withstand current kA 20, 25, 31.5
7 Rated short circuit breaking current kA 20, 25, 31.5
8 Rated peak withstand current kA 50, 63, 80
9 Rated duration of short circuit S 4
10 Opening time ms 30≤t≤60
11 Closing time ms 50≤t≤100
12 Breaking times of the rated short circui breaking current Cycle 20
13 Mechanical endurance Cycle 10000

Main Technical Data of Spring Operating Mechanism

Name Unit Data
Rated operating voltage Opening coil V DC220/110 AC220/110
Closing coil
Rated operating current Opening coil A 0.96(220V) 1.05(110V)
Closing coil
Power of energy-stored motor W 230
Rated voltage of energy-stored motor V DC220/110 AC220/110
Duration for storing energy S

≤12
