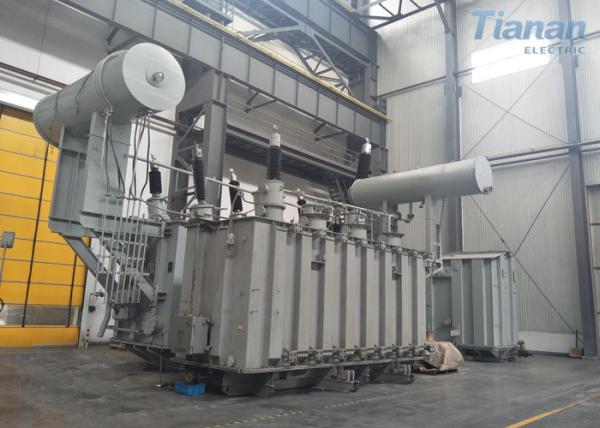

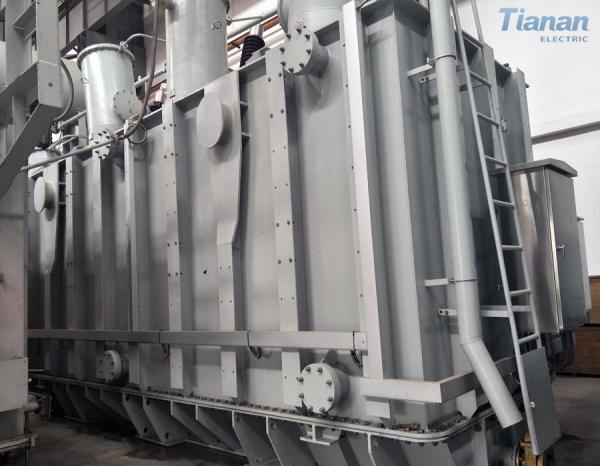

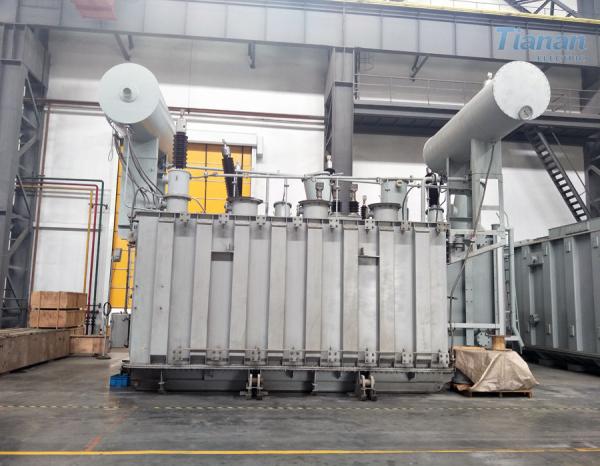

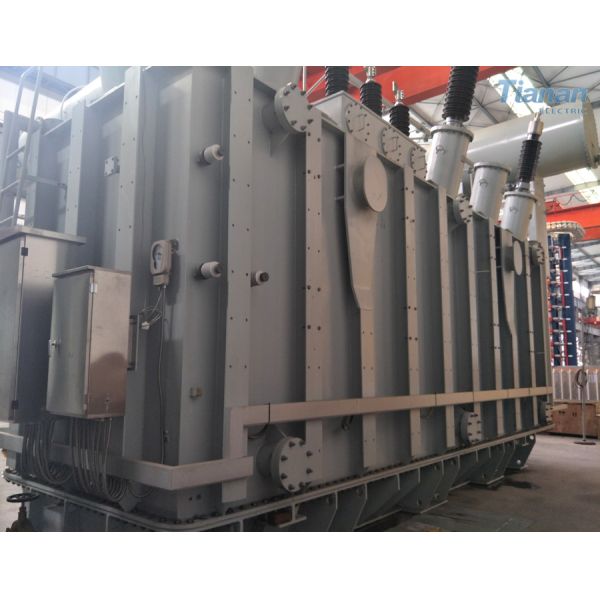

Earthing Oil Immersed Power Transformer 220kv 240mva Compact Structure
Earthing Oil Immersed Power Transformer 220kv 240mva Compact Structure
Earthing Oil Immersed Power Transformer 220kv 240mva Compact Structure
Earthing Oil Immersed Power Transformer 220kv 240mva Compact Structure
Earthing Oil Immersed Power Transformer 220kv 240mva Compact Structure
Earthing Oil Immersed Power Transformer 220kv 240mva Compact Structure
Specifications
Brand Name :
Tianan Electric
Model Number :
SFSZ11
Certification :
CESI,CCC,ISO,IEC
Place of Origin :
Ningbo,China
MOQ :
1set
Price :
Pending
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000sets per year
Delivery Time :
60 days
Packaging Details :
Nude/ wooden cases
Power capacity :
240MVA
Rated Voltage :
220KV
Transformer type :
Oil type
Coil Structure :
Toroidal
Cooling method :
ONAN / ONAF
winding material :
Copper
Description

220 Kv 240 MVA Oil Immersed Power Transformer Earthing Transformer

Product Overview

For 220kV Oil immersed type transformer,which is substation main transformer.The grounding transformer is used to provide a path to an ungrounded system or when the system neutral is not available for some reason, for example, when a system is delta connected. It provides a low impedance path to the neutral and also limits the transient overvoltage when the ground faults occur in the system. The grounding of the system can be done in the following way

Usage Environment

1. Elevation: Not more than 2000 meters.

2. Ambient temperature:

Max. + 50℃.

Min.: -45℃.

To be defined in details at ordering.

Standard

GB 1094.1-2003 GB 1094.2-2003

GB 1094.3-2003 GB 1094.5-2003

JB/T 5344.1-2004 J B/T 6303-2004

JB/T 8506-1996 JB/T 8636-1997

JB/T 9640-1999

Technical Parameters

Rated
capacity
(kVA) 		Voltage combination Connection
symbol		 No
-load
loss
(kW)		 Load
loss
(kW)		 No
-load
current
(%)		 Short
-circuit
impedence
(%)		 Cross weight(t)
HV(kV) HV
tapping range
(%)		 LV(kV)
31500 220 242 ±2×2.5 6.3 6.6 10.5 YNd11 28 128 0.56 12~14 40
40000 32 149 0.56 45
50000 39 179 0.52 55
63000 46 209 0.52 65
75000 10.5 13.8 53 237 0.48 75
90000 61 273 0.44 85
120000 75 338 0.44 110
150000 10.5 13.8 15.75 18 21 89 400 0.40 125
160000 93 420 0.39 130
180000 102 459 0.36 145
240000 128 538 0.33 180
300000 15.75 18 21 151 641 0.30 210
360000 173 735 0.30 240
370000 176 750 0.30 250
