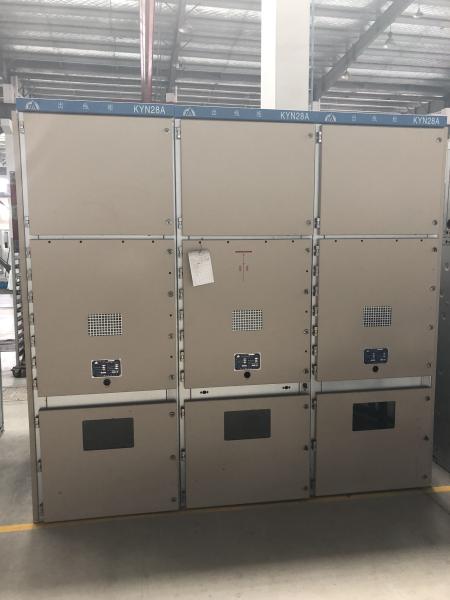

24KV Distribution Panel Board KYN28 Switchgear Metal Clad / Metal Enclosed Switchgear

NINGBO TIANAN (GROUP) CO., LTD.

Transportation and stroage

• Seriously forbid turnover, upset, intense shake, and avoid accessing water resource;
• Keep from rain to avoid moist;
• Forbid disassembly the parts and components willingly

Features of KYN28-24System

• Metal-cald and partition completely,efectively prevent faults spreading.
• The low voltage section is completely separated from the high voltage sections.
• Enclosure p rotection deg ree is IP4X, protect against electric shock and ing ress of solid foreign bodies.
• Simple but effective interlocking prevents maloperation.
• Space is provided for multiple cable connections,Installation and maintenance is convenient.
• Withd rawble part of the same design are mutually interchangeable,an exchange of VCB is very simple.

Operating conditionsTransportation and stroage

• Ambient temperature:max. to +40℃min. to-10℃.
• Altitude:1000m(max).
• Relative humidity:daily average less than 95% ,monthly less than 90%.
• Shock of earthquake:less than 8 magnitude.
• This product should not be used under conditions of fire, explosion, earthquake and chemical corrosion environments.
  Note:Special condition and requirement, consult with the manufacturer.

• During operation, operator shall note as following except observing correlative rules.
• Operation sequence :Although the interlock function to ensure the operation sequence of the parts of the switchgear correct according the design, the operating personnel should operate every part of the switchgear according to regulation of sequence and technical requirements, avoiding free operation, and seriously avoiding operating with force manner without analyzing, otherwise it is very easy to cause the damage of equipment or accidence.
• 7.Operation for circuit breaker cabinet which has no earthing switch
