Indoor High Voltage Load Switch MCCB Structure Vacuum Load Break Switch
Indoor High Voltage Load Switch MCCB Structure Vacuum Load Break Switch
Indoor High Voltage Load Switch MCCB Structure Vacuum Load Break Switch
Indoor High Voltage Load Switch MCCB Structure Vacuum Load Break Switch
Specifications
Brand Name :
TIANAN
Model Number :
FNl6A-12
Certification :
ISO;CE
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
3000 Sets
Packaging Details :
Nude
Price :
Pending
Delivery Time :
35 work days
Arc-extinguishing medium :
Vacuum
Structure :
MCCB
No. of pole :
Three
Rated current :
630A
Description

Indoor High Voltage Load Switch MCCB Structure Vacuum Load Break Switch

Overview

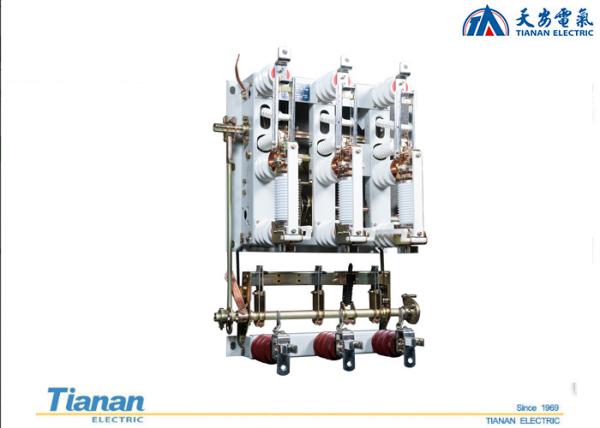

FN16A-12 Series switch for AC 50Hz, rated voltage of 10kV network, can be breaking the load current, overload current and closing short-circuit current. Combination of electrical short-circuit breaking current, especially for oil-free, no maintenance required and frequent operation places.
The innovative product design, small size, flexible installation, simple operation, with manual, electric two-function operation. With its operating mechanism CS6-1 type of CS or dedicated type, can also be directly manipulated in the back of the switch, you do not need to reprovision operating mechanism.

Technical parameters: load switch

No. Item Unit Parameters
1 Rated voltage kV 12
2 Rated frequency Hz 50
3 Rated current A 630
4 Rated active load breaking current A 630
5 Rated breaking current loop A 630
6 5% rated active load breaking current A 31.5
7 Rated cable charging breaking current A 10
8 Rated capacitor breaking current A 400
9 Rated no-load transformer breaking current 1600kVA
Transformer no-load current
10 1 min Frequency withstand voltage (rms) to
ground, interphase, vacuum fracture / isolation port		 kV 42/48
11 Full prey electrical impulse withstand voltage (peak)
to ground, interphase, vacuum fracture / isolation port		 kV 75/85
12 Rated short time withstand current (thermal stability) kA/s 20/3
13 Rated peak withstand current (dynamic stability) kA 50
14 Rated short-circuit current kA 50
15 Rated current breaking times time 10000
16 Mechanical life time 10000
17 Contact permission attrition accumulation thickness mm 3
18 Open and close operating torque (force) Nm 120(240)
19 Secondary control power voltage V AC / DC 240
20 Net weight kg 61
21 Dimensions mm 720 x 490 x 885
22 Package dimension mm 830 x 900 x 520
