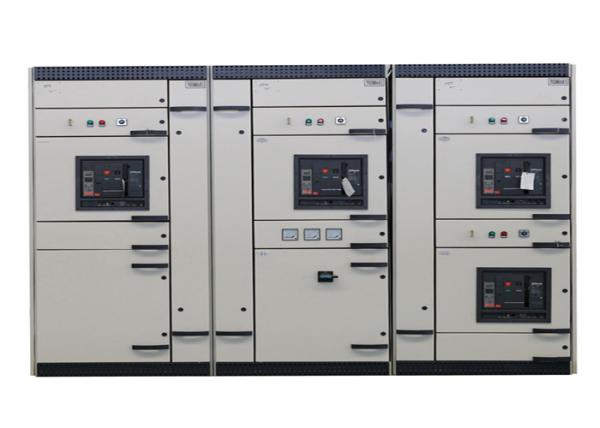

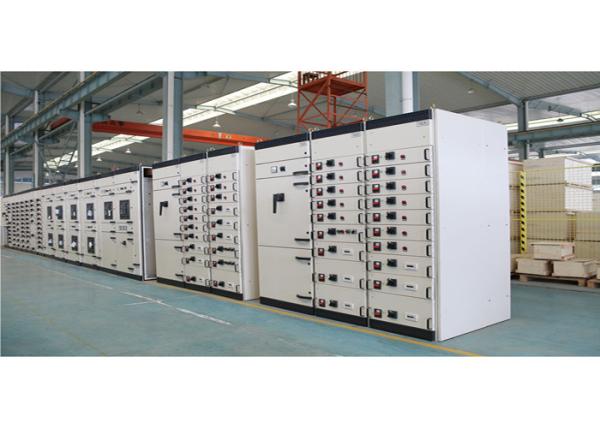

Indoor Electric Cabinet Distribution Low Voltage And Mv Switchgear

Product Description:

This product is suitable for power distribution systems of power plants, oil and chemical industry, metallurgy industry and high-rise buildings, especially in some places where requires for high automation and connection to computers such as larger power plants and petrochemical industry. It adapts to 3-phase system with frequency 50 (60) Hz, rated voltage 380V (400), (600), rated current 4000A (Max), and is used for low voltage distribution equipment of power supply system, motor control center and reactive power compensation.

Features:

a. The main structure is made of shaped steel of type 8MF with two mounting holes

(m=20mm, 100mm, and diameter=9.2mm). On both sides. It is flexible and convenient to assemble.

b. The function units are divided into three compartments: Function compartment, busbar compartment

and cable compartment, each has independent function.

c. The horizontal busbars are arranged in parallel at the back of cubicle to strength their resistance

to electric power, which is the basic measure to make main circuit have high intensity of short circuit.

d. The design of disconnected unit for cable makes it convenient for cable's use.

Reference specification:

Rated voltage of main circuit( V) 400, 690
Rated insulation voltage( V) 690, 1000
Rated frequency( Hz) 50
Rated insulation voltage( V) 660( 1000)
Rated current ( A) Horizontal busbar < =4000
Vertical busbar 1000
Rated short time withstand current of busbar( kA/1s) 80
Rated peak withstand current of busbar( kA/0.1s) 176
Power frequency testing voltage (V/1min) Main circuit 2500
Auxiliary circuit 1760
Busbar 3-phase and 4-wire A. B. C. PEN
3-phase and 5-wire A. B. C. PE. N
Protection degree IP30. IP40
Dimensions 2200x (600 800 1000)x600(800 1000)

Reference data for Breaker:

Type TANW1-2000 TANW1-3200 TANW1-4000 TANW1-6300
Frame rated current
Inm(A)		 2000 3200 4000 6300
Rated current In(A) 630,800,
1000,1250,1600,2000		 2000,2500,2900,3200 3200,3600,
4000		 4000,5000,
6300
Rated insulation voltage Ui(V) 1000
Rated operational voltage Ue(V) AC400,AC690
Rated limit short circuit breaking capacity Icu(kA) AC400V 80 100 100 120
AC690V 50 65 75 85
Rated running short circuit breaking capacity Ics(kA) AC400V 50 65 80 100
AC690V 40 65 65 75
Rated short time withstand current 1cw,1s AC400V 50 65 65/80 85/100
Rated impulse withstand current Uimp(V) 8000
Dielectric property(V) 3000
