Product Description:

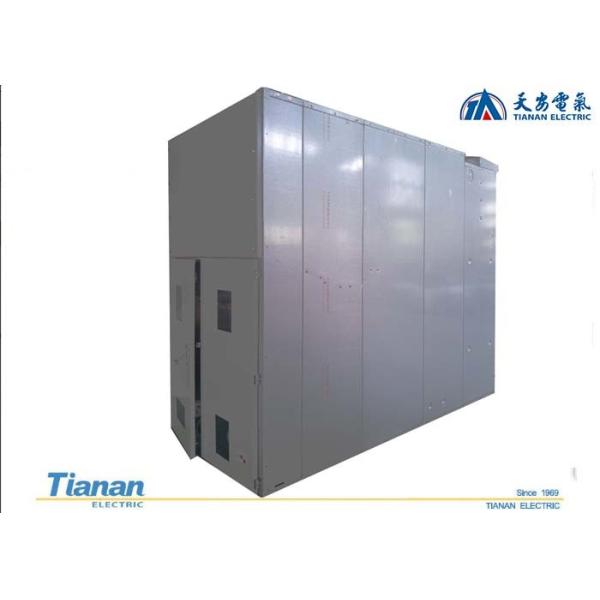

Our High Voltage Gas Insulated Switchgear also boasts a rated peak withstand current of 63 KA, making it a dependable choice for high voltage applications. With a rated voltage of 12/24 KV, it is equipped to handle a range of voltage levels.

Not only is this product powerful, it is also durable. It can operate in temperatures ranging from -40℃ to 50℃, allowing it to function in a variety of weather conditions.

Trust in our High Voltage Gas Insulated Switchgear for all your high voltage electrical distribution panel needs.

Features:

• Product Name: High Voltage Switchgear
• Rated frequency: 50 Hz
• Altitude height: ≤4000m
• Rated charging pressure(20℃ gauge pressure): 0.04 MPa
• Rated transmission current: 1700/1400 A
• Circuit resistance: ≤150 μΩ

Other names for this product include:

• High Voltage Gas Insulated Switchgear
• Power Switchgear

Technical Parameters:

Applications:

This high voltage switchgear is designed for various occasions and scenarios, including power plants, substations, industrial and mining enterprises, residential areas, and commercial buildings. It is suitable for use in power distribution systems rated at 12/24 KV. The anti-shock level is 9 degrees and the circuit resistance is less than or equal to 150 μΩ. The rated transmission current is 1700/1400 A. The gas annual relative leakage rate is only 0.05%.

The Box Type Gas Insulation Metal-clad Switchgear is an ideal product for high voltage load break switch applications. It is designed to provide reliable and stable power transmission and distribution for various power systems. It can withstand high temperatures and harsh environments, making it suitable for use in a wide range of scenarios. The switchgear is easy to install, operate, and maintain, and it is highly customizable to meet specific customer needs.

Furthermore, the High Voltage Modular Switchgear is built to last and can withstand extreme conditions. It is highly resistant to corrosion, moisture, and other environmental factors. It is also equipped with advanced safety features, such as interlock protection and grounding protection, to ensure maximum safety for the user. Overall, this product is a must-have for anyone looking for reliable and efficient power switchgear solutions.

Customization:

Brand Name: Box Type Gas Insulation Metal-clad Switchgear

Model Number: HXGT6-12

Place of Origin: CHINA

Certification: IEC& GB

Minimum Order Quantity: 2 SET

Price: To be confirmed

Packaging Details: WOODEN CASE

Delivery Time: 40 DAYS/SET

Payment Terms: FOB,EXW,CIF......

Supply Ability: 500 PER YEAR/ SET

Rated charging pressure(20℃ gauge pressure): 0.04 MPa

Ambient temperature: -40~50℃

Rated peak withstand current: 63 KA

Rated frequency: 50 Hz

Circuit resistance: ≤150 μΩ

The High Voltage Gas Insulated Switchgear is a High-voltage Power Distribution Unit that can be customized to suit your specific needs and requirements. Contact us today to learn more about our product customization services.
