Product Description:

The Medium Voltage Switchgear is a crucial component in electrical power systems, providing reliable protection and control for medium voltage applications. Designed to meet the demanding requirements of various industries, this product offers exceptional performance and durability.

Rated for a frequency of 50Hz, the Medium Voltage Switchgear is optimized for optimal operation within this standard frequency range. This ensures compatibility with a wide range of electrical systems and applications, allowing for seamless integration.

In terms of ambient temperature, the Medium Voltage Switchgear is built to withstand extreme conditions. With a maximum ambient temperature of 40℃ and a minimum of -15℃, this product is suitable for use in a variety of environments, from hot and humid to cold and harsh conditions.

When it comes to seismic resistance, the Medium Voltage Switchgear is designed to withstand seismic events with a level of less than 8 degrees. This ensures that the product remains operational and reliable even in areas prone to seismic activity, providing peace of mind for users.

The Medium Voltage Switchgear is rated for a peak withstand current of 63, 80 KA, making it ideal for handling high levels of current in medium voltage applications. This high rating ensures efficient and reliable performance, even under heavy loads and demanding conditions.

With an enclosure protection degree of IP4X, the Medium Voltage Switchgear offers robust protection against dust and other solid particles. This ensures that the internal components remain safe and secure, reducing the risk of damage and ensuring long-term reliability.

In conclusion, the Medium Voltage Switchgear is a versatile and reliable product that meets the stringent requirements of medium voltage applications. With its advanced features and high performance capabilities, this product is an essential component for electronic dimmer switches, high voltage disconnect switches, and other critical systems.

Features:

• Product Name: Medium Voltage Switchgear
• Rated frequency: 50Hz
• KYN61: Type Of Tianan
• Rated current: 1250, 1600, 2000, 2500, 3150 A
• Altitude: ＜1000 M
• Seismic resistant level: ＜8 Degree

Technical Parameters:

Applications:

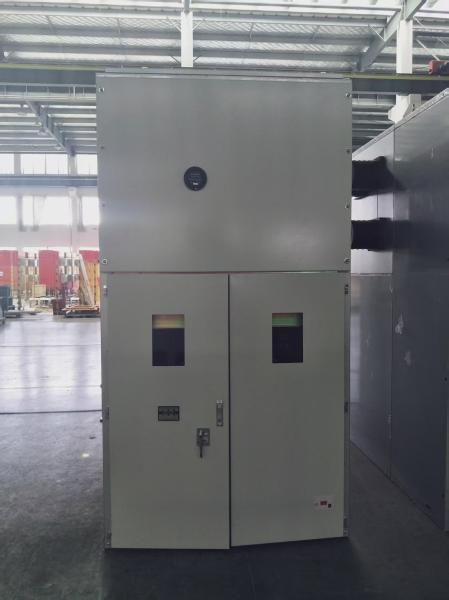

TIANAN Medium Voltage Switchgear (Model: KYN61-40.5) is a reliable and efficient solution for various application occasions and scenarios that require high-performance electrical distribution equipment. With its origin in China and certifications meeting IEC&GB standards, this switchgear is designed to meet the needs of diverse industries.

One of the key product attributes of the TIANAN Medium Voltage Switchgear is its versatility in different environments. It is suitable for use in locations with altitudes below 1000 meters, making it ideal for a wide range of installations.

The switchgear's rated current options of 1250, 1600, 2000, 2500, and 3150 A, along with a rated peak withstand current of 63, 80 KA, ensure reliable performance in demanding situations. Whether it's for handling high voltage disconnect switch operations or electronic dimmer switch functionalities, this product offers exceptional functionality.

With an ambient temperature range from -15℃ to 40℃, the TIANAN Medium Voltage Switchgear can operate effectively in various climates, making it suitable for both indoor and outdoor applications.

Furthermore, the outline dimensions of 1200x2600x2400 and 1400x2800x2600 meters provide flexibility in installation, allowing for seamless integration into different setups. The product is packaged in wooden cases for secure transportation and has a minimum order quantity of 1 set.

Customers can benefit from a supply ability of 500 sets per year, ensuring consistent availability of the product. The delivery time of 30 days per set and payment terms including FOB, EXW, CIF, among others, offer convenience and flexibility in procurement.

In conclusion, the TIANAN Medium Voltage Switchgear (Model: KYN61-40.5) is a top-tier solution for applications requiring a high voltage disconnecting switch. Its robust design, versatile features, and adherence to international standards make it a reliable choice for various scenarios.

Customization:

Product Customization Services for the Medium Voltage Switchgear:

- Brand Name: TIANAN

- Model Number: KYN61-40.5

- Place of Origin: CHINA

- Certification: IEC&GB

- Minimum Order Quantity: 1 SET

- Price: To be confirmed

- Packaging Details: WOODEN CASE

- Delivery Time: 30 DAYS/SET

- Payment Terms: FOB,EXW,CIF and so on

- Supply Ability: 500 PER YEAR

- KYN61: Type Of Tianan

- Ambient temperature: Max: 40℃, Min: -15℃

- Seismic resistant level: <8 Degree

- Power frequency withstand voltage(1min): 95, 118 KV; 118, 215 KV

- Protection degree: Enclosure IP4X

Product Attributes: Electronic Dimmer Switch, High Voltage Disconnecting Switch, Electronic Dimmer Switch

Support and Services:

Our Product Technical Support and Services for the Medium Voltage Switchgear include:

- Installation guidance and support

- Commissioning services

- Training programs for operators and maintenance personnel

- Remote technical assistance

- Troubleshooting and diagnostics

- Spare parts availability and replacement services

- Scheduled maintenance and service contracts

Packing and Shipping:

Product Packaging:

The Medium Voltage Switchgear product is carefully packaged to ensure its safety during transportation and handling. It is wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage. Additionally, the product is labeled clearly with handling instructions and product information for easy identification.

Shipping:

Once packaged, the Medium Voltage Switchgear product is ready for shipping. We partner with reliable shipping companies to ensure timely delivery to our customers. The product is shipped securely to prevent any mishandling or damage during transit. Customers will receive a tracking number to monitor the status of their shipment and ensure a smooth delivery process.

FAQ:

Q: What is the brand name of this Medium Voltage Switchgear product?

A: The brand name is TIANAN.

Q: What is the model number of this Medium Voltage Switchgear product?

A: The model number is KYN61-40.5.

Q: What is the place of origin of this Medium Voltage Switchgear product?

A: It is manufactured in CHINA.

Q: What certifications does this Medium Voltage Switchgear product have?

A: It is certified by IEC&GB.

Q: What is the minimum order quantity for this Medium Voltage Switchgear product?

A: The minimum order quantity is 1 SET.
