Front Head 1.5t Heavy Equipment Wheel Loader For Construction Engineering
Front Head 1.5t Heavy Equipment Wheel Loader For Construction Engineering
Front Head 1.5t Heavy Equipment Wheel Loader For Construction Engineering
Front Head 1.5t Heavy Equipment Wheel Loader For Construction Engineering
Front Head 1.5t Heavy Equipment Wheel Loader For Construction Engineering
Front Head 1.5t Heavy Equipment Wheel Loader For Construction Engineering
Specifications
Brand Name :
MCLLROY
Model Number :
MCL926
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 Unit
Price :
$4000-6000/
Payment Terms :
30% T / T in advance and 70% balance before shipment / 100% L / C at sight
Supply Ability :
100 Units / Month
Delivery Time :
5-8 days
Packaging Details :
Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ
Engine Model :
Yun Nei 490
RPM :
2400
Rated Power :
42 kW
Emissions :
EU Stage II
Operating Weight :
3340 kg
Rated Load :
1500 kg
Bucket Capacities :
0.6-1.0 m³
Max. Travel Speed :
28 km/h
Gear Box :
Mechanical Transmission(3F+2R)
Alex :
Isuzu
Axle Base :
2210 mm
Brake :
Disc Brake
Hydraulic Cycle time - lift :
≤ 7 s
Min. Ground Clearance :
340 mm
Wheel Base :
1400 mm
Reach at Max.Dump Height :
3200 mm
Dump Reach :
≤ 650 mm
Overall Length - With Bucket :
5340 mm
Overall Width :
Overall Width
Overall Height :
2670 mm
Tyre Size :
20.5-16
Joystick :
Mechanical
Min. turning radius :
≤ 6800 mm
Hour meter :
Yes
Tool Box :
Yes
Dual Hight&Low Speed Handle :
Yes
Air Conditioning/heater :
Option
Quick Change :
Option
Description

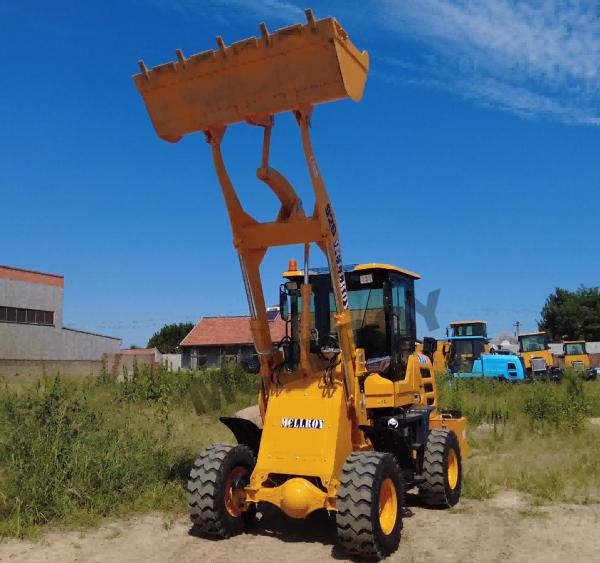

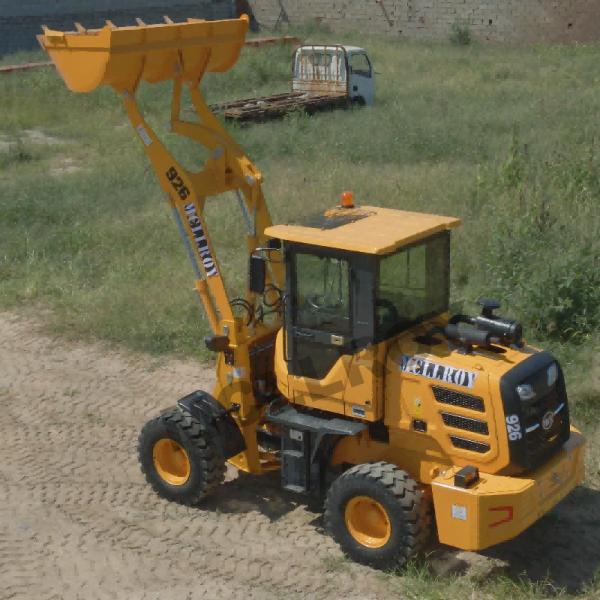

Front Head Wheel Loader For Construction Engineering

1. Products Description of MCLLROY Wheel Loader

If you require a small machine with exceptional performance, then the MCLLROY Wheel Loader is perfect for you with its impressive lifting and dumping height and remarkable breakout force when equipped with buckets or pallet forks - ensuring maximum productivity.

We have incorporated a Yunnei engine into this loader. This decision was made based on the fact that several developing countries presently do not have strict requirements pertaining to engine emissions. Therefore, for export to Southeast Asia, we have opted to use Yunnei engines. These engines are highly stable in performance, cost-effective, and can be considered as the most economical engine option among small loaders.

2.Specification
MCL 926
Engine Model Yun Nei 490
RPM 2400
Rated Power 42 kW
Emissions EU Stage II
Operating Weight 3340 kg
Rated Load 1500 kg
Bucket Capacities 0.6-1.0 m³
Max. Travel Speed 28 km/h
Gear Box Mechanical Transmission(3F+2R)
Alex Isuzu
Axle Base 2210 mm
Brake Disc Brake
Hydraulic Cycle time - lift ≤ 7 s
Min. Ground Clearance 340 mm
Wheel Base 1400 mm
Reach at Max.Dump Height 3200 mm
Dump Reach ≤ 650 mm
Overall Length - With Bucket 5340 mm
Overall Width 1820 mm
Overall Height 2670 mm
Tyre Size 20.5-16
Joystick Mechanical
Min. turning radius ≤ 6800 mm
Hour meter Yes
Tool Box Yes
Dual Hight&Low Speed Handle Yes
Air Conditioning/heater Option
Quick Change Option


3. Details and Advantages of MCLLROY Compact Wheel Loader

1) The hydraulic system is both reliable and well-established, featuring triple-wire hydraulic hoses to facilitate short cycle times and streamlined operation.

2) The anti-rollover cab is engineered with safety as a top priority. The high-pressure tempered glass construction ensures that, even in the unlikely event of glass breakage, individuals are less likely to suffer injury.

3) The adjustable seat has been ergonomically designed to minimize driver fatigue.

4 Featuring a user-friendly dashboard and an integrated hydraulic operating lever design, the loader offers effortless handling and uncomplicated operation.


4.Attachment of MCLLROY Wheel Loader
The MCLLROY compact wheel loader can be equipped with an optional quick hitch that enables quick switching among various attachments, including V-shaped snow plows, snow buckets, drum grabs, barrel grapples, snow blowers, street sweepers, sand buckets, and more. This feature significantly enhances the machine's flexibility and versatility, making it an essential asset for a wide range of applications, such as snow removal, waste management, and road cleaning.
Front Head 1.5t Heavy Equipment Wheel Loader For Construction EngineeringFront Head 1.5t Heavy Equipment Wheel Loader For Construction EngineeringFront Head 1.5t Heavy Equipment Wheel Loader For Construction EngineeringFront Head 1.5t Heavy Equipment Wheel Loader For Construction Engineering
