Specifications
Brand Name :
MCLLROY
Model Number :
MCL930 ZL930
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
$ 4000-6000 /Unit
Payment Terms :
30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
Supply Ability :
100 sets / month
Delivery Time :
5-8 working days
Packaging Details :
Nude ，3 Sets Fasten Packing in 1 40HQ
Moving type :
Wheel Loader
Condition :
New
Engine power :
42kw
Rated load :
1800KG
Bucket capacity :
1.3cbm
Dumping height :
3200mm
Machine weight :
3500KG
RPM :
2400
Emissions :
EU Stage II
Axle Base :
2210 mm
Brake :
Air Brake
Reach at Max.Dump Height :
3200 mm
Dump Reach :
700 mm
Overall Length - With Bucket :
5300 mm
Overall Width :
1820 mm
Overall Height :
2760 mm
Tyre Size :
20.5-16
Breakout Force :
40 KN
Joystick :
Mechanical
Min. turning radius :
≤ 7000 mm
Hour meter :
Yes
Tool Box :
Yes
Description

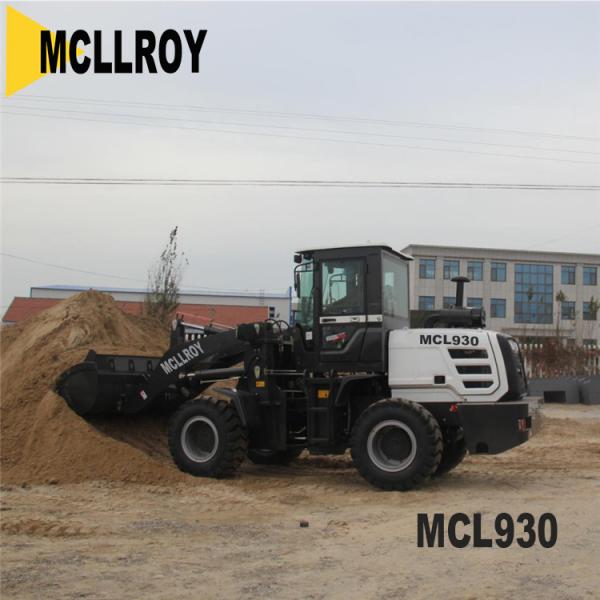

Small Shovel Wheel Loader Multifunctional Applications In Construction And Agricultural

1. Products Description

MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.

For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.

2. Specification

MODEL MCL930/ ZL930 Metric Units
ENGINE Engine Model Yun Nei 490
RPM 2400
Rated Power 42 kW
Emissions EU Stage II
WEIGHTS Operating Weight 3500 kg
Rated Load 1600 kg
BUCKETS Bucket Capacities 0.6-1.0 m³
TRANSMISSION Max. Travel Speed 28 km/h
Gear Box CVT
265 torque converter
Alex Small hub
Axle Base 2210 mm
Brake Air Brake
HYDRAULIC SYSTEM Hydraulic Cycle time - lift ≤ 7 s
DIMENSIONS(APPROXIMATE) Min. Ground Clearance 290 mm
Wheel Base 1490 mm
Reach at Max.Dump Height 3200 mm
Dump Reach 700 mm
Overall Length - With Bucket 5300 mm
Overall Width 1820 mm
Overall Height 2760 mm
OPERATING SPECIFICATIONS Tyre Size 20.5-16
Breakout Force 40 KN
Joystick Machanical
Min. turning radius ≤ 7000 mm
STANDARD EQUIPMENT Hour meter Yes
Tool Box Yes
Dual Hight&Low Speed Handle Yes
OPTIONAL EQUIPMENT Air Conditioning/heater Option
Quick Change Option
Multifunctional Attachment Option
Hydraulic Pilot Option

3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Tire:A variety of patterns to adapt to different perorations ,solid tires available.

2) Frame:Strong hinge joint.

3) Cab:

I. Electronic oil level indicator.

II. Comfortable seat with safety belt.

III. Intelligent instrument.

IV. Pilot valve hydraulic operation.

4) Wide-opening hood for easier servicing & maintenance of engine.

5) MCLLROY design engine cover,automatic power-off electronic flame-out ,no knife.

4.Attachment

MCLLROY compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade etc.

Multifunctional Front Loader Construction Equipment Small Shovel For Agricultural 42kw

Multifunctional Front Loader Construction Equipment Small Shovel For Agricultural 42kw

Multifunctional Front Loader Construction Equipment Small Shovel For Agricultural 42kw

Multifunctional Front Loader Construction Equipment Small Shovel For Agricultural 42kw

Multifunctional Front Loader Construction Equipment Small Shovel For Agricultural 42kw

Multifunctional Front Loader Construction Equipment Small Shovel For Agricultural 42kw

Similar Model:

Cat 903D/906M/907M/908M

XCMG LW156/LW160/LW180/LW186/LW200

Liugong 816C

SDLG LG916 LG918 L918
