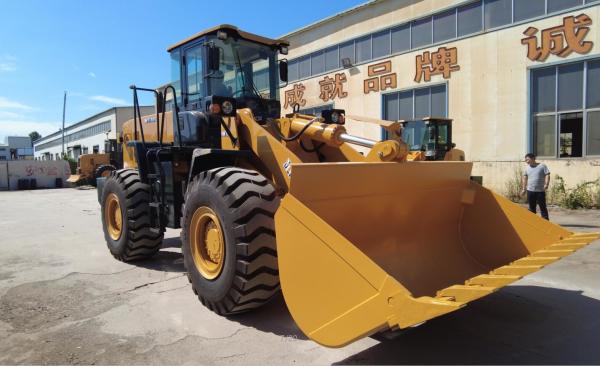

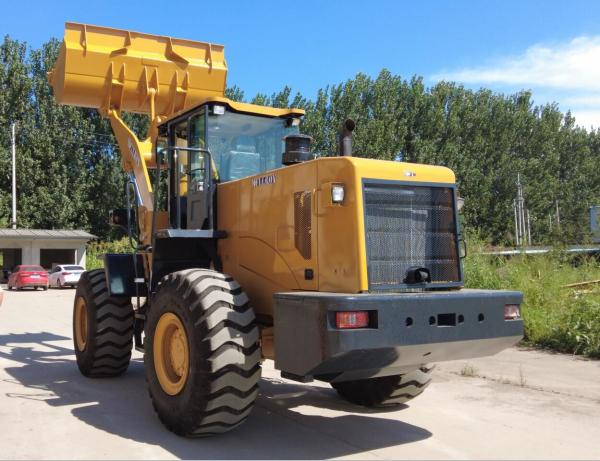

Front End Industrial 5 Ton Wheel Loader Medium With 2.7m3 Bucket
Front End Industrial 5 Ton Wheel Loader Medium With 2.7m3 Bucket
Front End Industrial 5 Ton Wheel Loader Medium With 2.7m3 Bucket
Front End Industrial 5 Ton Wheel Loader Medium With 2.7m3 Bucket
Front End Industrial 5 Ton Wheel Loader Medium With 2.7m3 Bucket
Front End Industrial 5 Ton Wheel Loader Medium With 2.7m3 Bucket
Specifications
Brand Name :
MCLLROY
Model Number :
MCL656G 656G
Certification :
CE/ISO
Place of Origin :
SHANGDONG ,CHINA
MOQ :
1 Set
Price :
20000-35000 USD
Supply Ability :
30 SETS PER MONTH
Delivery Time :
10 working days
Packaging Details :
Nude , 1 sets in 1 40HQ
rated load :
5000kg
Operating weight :
16700kg
rated bucket capacity :
2.7-4.5 m³
maximum tractive force :
172KN
maximum breakout force :
≥163KN
maximum grade ability :
30°
maximum dump height :
3200mm
maximum dump reach :
1260mm
overall dimension (L×W×H) :
8247×3060×3410mm
Engine type :
lnline water cooling dry cylinder injection
minimum turning radius :
(Bucket lateral) 5917mm
No. of cylinder :
6
bore x stroke :
126×130mm
Description

Medium Front End 5 Ton Wheel Loader 2.7m³ 4.5m³ Bucket Capacity

1.General Description

DAILY CHECKS AND MAINTENANCE SHOULDN’T BE TOUGH

Simple daily checks and maintenance prolong machine performance but, they can be difficult and time consuming on tough jobsites where time is precious. Not with our wheel loaders.

The wide opening fiberglass hood gives fast and easy access to the engine and regular service points – that’s good news for operators who want to reduce maintenance time to the minimum.

2.Specification

Model MCL 656G
Performance rated load 5000kg
Operating weight 16700kg
rated bucket capacity 2.7-4.5 m³
maximum tractive force 172KN
maximum breakout force ≥163KN
maximum grade ability 30°
maximum dump height 3200mm
maximum dump reach 1260mm
overall dimension (L×W×H) 8247×3060×3410mm
minimum turning radius (Bucket lateral) 5917mm
(Tire lateral) 6931mm
Engine Model Weichai Steyr WD10G210E22
Engine type lnline water cooling dry cylinder injection
No. of cylinder 6
bore x stroke 126×130mm
rated power 162kw
Speed/min 2400r/min
maximum torque 920N.m
min fuel-consume ratio ≤215g/kw.h
Transmission system torque converter YJ375
gearbox mode power shift normally engaged straight gear
gear shift 4 forward shift 4reverse shift
maximum speed 41km/h
Drive axles main reducing spiral bevel gear grade 1 reduction
decelerating mode planetary reduction, grade I
wheel base 3300mm
wheel tread 1800mm
minimum ground clearance 450mm
Front and rear axle 4WD,front fiexed ,rear swing

3. Details and Advantages

POWERFUL TRACTION

Limited-slip differential axles match themselves to the toughest terrain, automatically delivering

power to all four tires and increasing traction for maximized bucket-filling performance. Advanced axle engineering increases the resistance to both internal torque loads and the external forces helping to get tough work done easily.

RIDE CONTROL

MCLLROY wheel loaders excel in adapting to any jobsite conditions.

Our new generation ride control, coupled with an automated bucket positioning feature, absorbs shocks and improves ride quality for the operator over any terrain. Importantly, our new ride control significantly prevents material loss and perfectly complements our new buckets which are easier to fill, load and carry, noticeably increasing productivity and earning potential.

4.Certification

Product quality determines customer satisfaction thus the life span of a company.

MCLLROY not only acknowledged by the ISO9001:2000 international quality control system

and ISO 9001:2015 quality management system certification,but acquired the CE certificate.

MCLLROY CE certificate is for wheel loader, backhoe loader,excavator ,mixer truck .etc.
