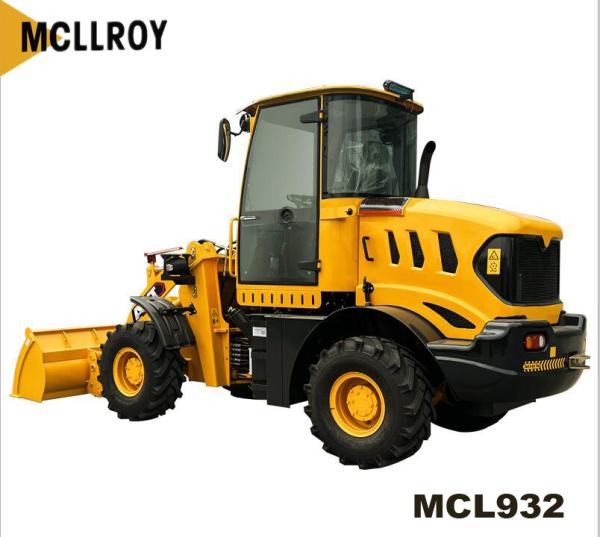

58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump
58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump
Specifications
Brand Name :
MCLLROY
Model Number :
MCL932 ZL932
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
$ 4000-6000 /Unit
Payment Terms :
30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
Supply Ability :
100 sets / month
Delivery Time :
5-8 working days
Packaging Details :
Nude ，3 Sets Fasten Packing in 1 40HQ
Max.Dump Clearance :
3200mm
Rated power :
58kw
Rated Load :
1800kg
Operating Weight :
3500 kg
Dump Reach :
1350mm
Engine Model :
YN490 Supercharged
speed/min :
2400 rpm
Gear Box :
CTV
Alex :
S-hub reductro
Frame :
Articulated
Tire :
20.5-16
Joystick :
Mechanical
Brake Type :
Air brake
Air conditioner :
Option
Description

3200mm Dump Shovel Bucket Wheel Loader, Airconditioner Option Compact shovel Wheel Loader

1. Products Description

We need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.

2. Specification

Model MCL932
ZL932
Max.Dump Clearance mm 3200
Rated power kw 58
Rated Load kg 1800
Bucket Capacity m³ 1.0
Overall Size (L*W*H) mm 5500*1620*2750
Operating Weight kg 3500
Bucket Length m 1.9
Dump Reach mm 1350
Engine Model YN490 Supercharged
Engine speed/min rpm 2400
Gear Box CVT
Alex S-hub reductro
Frame Articulated
Tire 20.5-16
Joystick Mechanical
Brake Type Air brake
Air conditioner Option
Hydraulic pilot Option

3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Tire:38% Rubber content tire,Wider off-road tire

2) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.

3) Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.

4) Complete safety signs.

5) Large steps on the side of the frame also enhance accessibility.

4. Attachment

Lift higher and reach further with optional high lift attachments available on all models.

With quick loading performance and optimized .

Multi-work just simple to accomplish.

Well-designed quick hitch can be coupled with attachments as following:


58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump

58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump

58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump

58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump

58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump

58kw Articulated Front Loader , Shovel Wheel Loader 3200mm Dump
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
