Specifications
Brand Name :
MCLLROY
Model Number :
MCL936 ZL936
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
$5000-7000 /Unit
Payment Terms :
30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
Supply Ability :
100 sets / month
Delivery Time :
5-8 working days
Packaging Details :
Nude ,3 Sets Fasten Packing in 1 40HQ
Moving type :
Wheel Loader
Dimension(long * breadth * high) :
6025*2000*3000mm
Condition :
New
Dumping height :
3500mm
Machine weight :
5300KG
Engine power :
65kw
Type :
Front Loader
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Color :
Customize
Attachments :
Fork,Snow bucket,Kinds,trencher
Engine Brand :
Yunnei YN4100 Supercharged
Alex :
Middle-Hub
Brake Type :
Air brake
Air conditioner :
Option
Hydraulic pilot :
Option
Running hour meter :
Option
Description

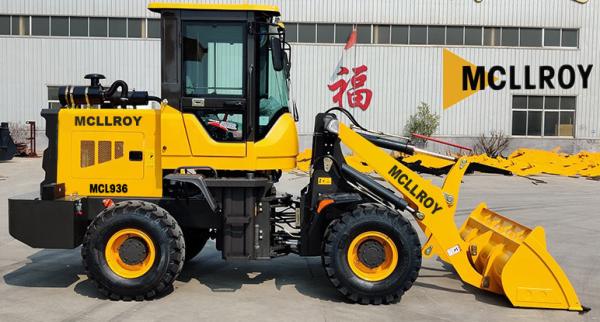

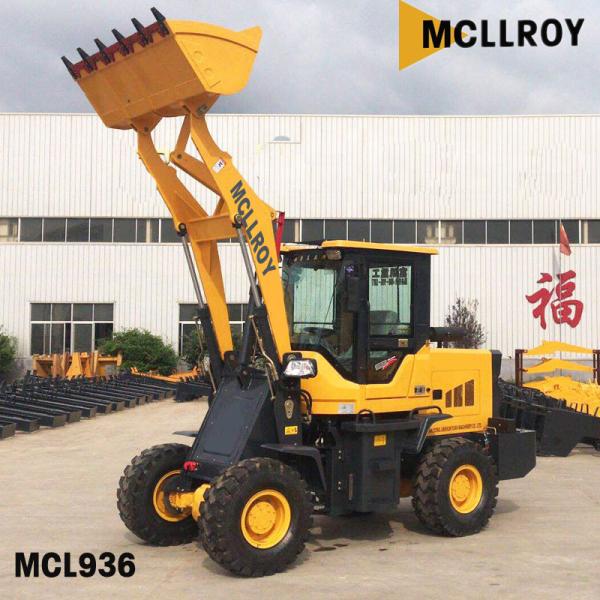

Compact shovel 2.5 Ton Wheel Loader 65kw 88hp Power

1. Products Description

we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.

2. Specification

Model MCL936
ZL936
Rated Load kg 2000
Dipper Bucket Capacity m³/m 1.1/2.0m
Max.Dump Clearance mm 3500
Dump Reach mm 1650
Overall Size (L*W*H) mm 6025*2000*3000
Engine Model YN4100 Supercharged
Rated power kw 65
speed/min rpm 2400
Gear Box 280B Split Torque converter
Alex M-hub reductro
Operating Weight kg 5300
Articulated Articulated
Tyre Size 1670-20
Joystick included Mechanical
Aircon included
Hydraulic pilot(option) Without
running hour meter running hour meter
air brake air brake

3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.

2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.

3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.

4) Hydraulic system:Precision hydraulic cylinder and the fourth generation hydraulic transmission system give large breakout force for earth-moving work.

4.Production lines:

A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection

Assembly:

Our factory arrange seven steps for assembly. There are over a thousand parts in a loader. I will talk about assembly of major components.

First, our workers will assemble the front frame, rear frame, swing frame, front axle, rear axle together, and then install air tank, relief valve, air booster pump on the frame.

At this step, the worker should pay attention to the tightness of the screws and adjust the gap: for example, the hinged part is not supposed to move up and down and must be tight (can be shaken left and right); there is also a gap between the swing frame and rear frame, which can be moved up and down, but not back and forth; and Gear oil should be added to the front and rear axles.

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

2.5 Ton Front Wheel Loader Machine Compact With 65kw 88hp Power

Similar Model:

Cat 903D/906M/907M/908M

XCMG LW156/LW160/LW180/LW186/LW200

Liugong 816C

SDLG LG916 LG918 L918
