Specifications
Brand Name :
MCLLROY
Model Number :
MCL936 ZL936
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
$5000-7000 /Unit
Payment Terms :
30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
Supply Ability :
100 sets / month
Delivery Time :
5-8 working days
Packaging Details :
Nude ,3 Sets Fasten Packing in 1 40HQ
Moving type :
Wheel Loader
Dimension(long * breadth * high) :
6025*2000*3000mm
Condition :
New
Dumping height :
3500mm
Machine weight :
5300KG
Engine power :
65kw
Type :
Front Loader
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Color :
Customize
Attachments :
Fork,Snow bucket,Kinds,trencher
Engine Brand :
Yunnei YN4100 Supercharged
Alex :
Middle-Hub
Rated Load :
2000kg
Bucket Capacity :
1.1m3
Bucket Length :
2m
Dump Reach :
1650mm
Description

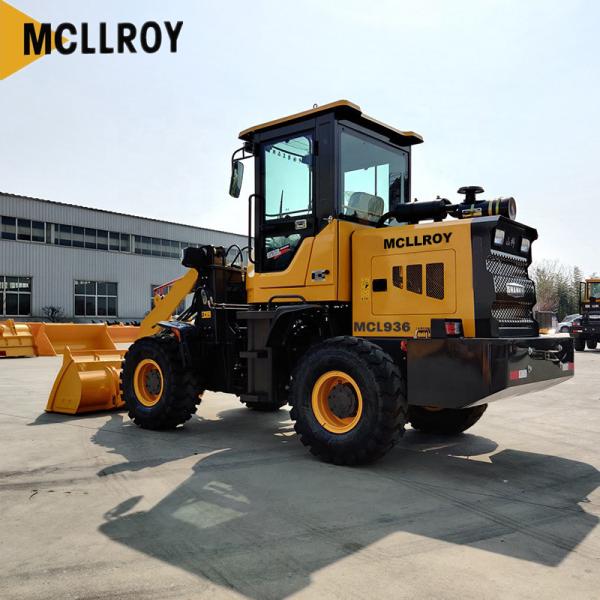

Small Front End 2.5 Ton Wheel Loader 5300kg Operating Weight

1. Products Description

In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.

The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.

The flexibility and light operation mainly depends on the hydraulic system of the loader.

The low failure rate depends on quality as well as the after-sales service.


MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.

2. Specification

Model MCL936
ZL936
Rated Load kg 2000
Dipper Bucket Capacity m³/m 1.1/2.0m
Max.Dump Clearance mm 3500
Dump Reach mm 1650
Overall Size (L*W*H) mm 6025*2000*3000
Engine Model YN4100 Supercharged
Rated power kw 65
speed/min rpm 2400
Gear Box 280B Split Torque converter
Alex M-hub reductro
Operating Weight kg 5300
Articulated Articulated
Tyre Size 1670-20
Joystick included Mechanical
Aircon included
Hydraulic pilot(option) Without
running hour meter running hour meter
air brake air brake

3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Tire:38% Rubber content tire,Wider off-road tire

2) Frame:The thickened frame has strong impact resistance and remarkable passing performance, enabling the loader to pass unimpeded in the difficult working environment.

3) Cab:Large space in the H-series cab The low-noise and shock-absorbing cab

4) The brake caliper is exposed to facilitate servicing.

5) The bucket with high wear-resistant material even is used for stone.

4. Inspection

The inspection is as important as any other procedure. MCLLROY technicians usually need to inspect the followings (Part I):

1) Adjust the tire pressure, drive the loader to the inspection platform, to see if the bucket is level to the ground when it is on the ground.

2) Check if the hydraulic oil is enough, and then lift the arm, withdraw the bucket and check the hydraulic oil level again, check the hydraulic oil tank scale (scale at 11 to 13 means enough)

3) Check if any bolts are loose or missing, and if there is a oil leaking problem.

4) Check the track width to see if it is different from standard.

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Front End Wheel Loader Machine Small 2.5 Ton With 5300kg Operating Weight

Similar Model:

Cat 903D/906M/907M/908M

XCMG LW156/LW160/LW180/LW186/LW200

Liugong 816C

SDLG LG916 LG918 L918
