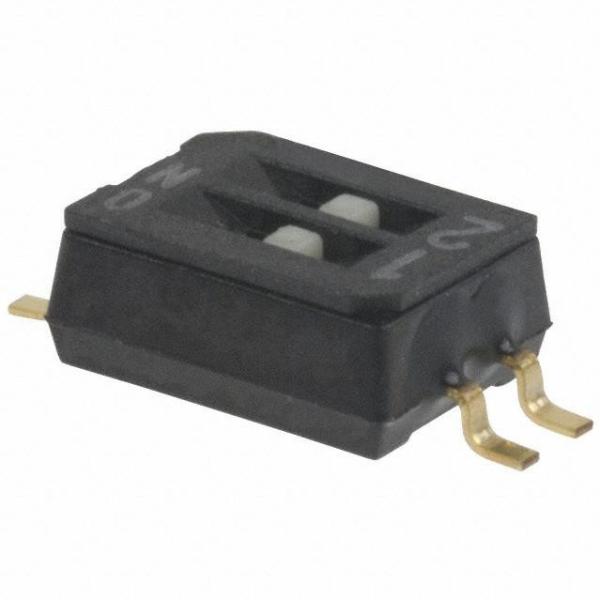

CHS-02TB COPAL Switch Slide OFF ON DPST Recessed Slide 0.1A 24VDC Gull Wing SMD T/R
CHS-02TB COPAL Switch Slide OFF ON DPST Recessed Slide 0.1A 24VDC Gull Wing SMD T/R
Specifications
Brand Name :
COPAL
Model Number :
CHS-02TB
Place of Origin :
CHINA
MOQ :
package qty
Price :
contact sales for updated price
Packaging Details :
tape and reel
Delivery Time :
2 weeks
Payment Terms :
T/T
Supply Ability :
1000+
Description

CHS-02TB COPAL Switch Slide OFF ON DPST Recessed Slide 0.1A 24VDC Gull Wing SMD T/R

Product Technical Specifications

EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Type Low Profile
Actuator Style Recessed Slide
Pole Throw Configuration DPST
Switch Configuration OFF ON
Maximum Current Rating (A) 0.1@6VDC
Dielectric Strength 500VAC
Minimum Insulation Resistance (MOhm) 1000
Maximum Contact Resistance (MOhm) 50
Electrical Life (Cycles) 2000
Actuator Length (mm) 0
Number of Rows 2
Row Spacing (mm) 1.27
Mounting Surface Mount
Termination Style Gull Wing
Number of Terminals 4
Terminal Length (mm) 1.3
Terminal Pitch (mm) 6.7
Seal Description Tape
Housing Material Polyphenylene Sulphide
Body Orientation Straight
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Packaging Tape and Reel
Body Length (mm) 5.4
Body Depth (mm) 4.1
Body Height (mm) 2.4
Product Weight (g) 0.08
Product Length (mm) 8
Product Depth (mm) 4.1
Product Height (mm) 2.5
Number of Positions 2
