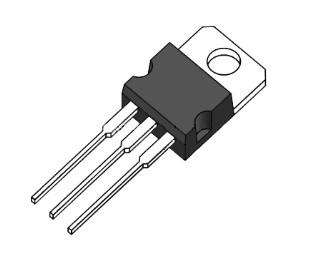

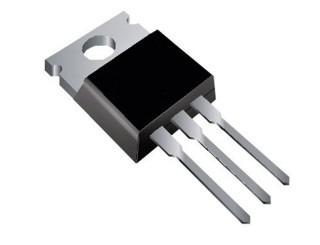

IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
IRFB4115PBF High Power MOSFET N-CH Si 150V 104A 3 Pin TO-220AB Tube
Specifications
Brand Name :
Infineon
Model Number :
IRFB4115PBF
Place of Origin :
CHINA
MPN :
IRFB4115PBF
MFR :
Infineon
Category :
Mosfet
Size :
9.02*10.67*4.83mm
MOQ :
package qty
Price :
contact sales for updated price
Packaging Details :
tape and reel
Delivery Time :
2 weeks
Payment Terms :
T/T
Supply Ability :
1000+
Description

IRFB4115PBF Infineon Trans MOSFET N-CH Si 150V 104A 3-Pin(3+Tab) TO-220AB Tube

Product Technical Specifications

EU RoHS Compliant with Exemption
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Product Category Power MOSFET
Material Si
Configuration Single
Process Technology HEXFET
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 150
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 104
Maximum Drain Source Resistance (MOhm) 11@10V
Typical Gate Charge @ Vgs (nC) 77@10V
Typical Gate Charge @ 10V (nC) 77
Typical Input Capacitance @ Vds (pF) 5270@50V
Maximum Power Dissipation (mW) 380000
Typical Fall Time (ns) 39
Typical Rise Time (ns) 73
Typical Turn-Off Delay Time (ns) 41
Typical Turn-On Delay Time (ns) 18
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175
Packaging Tube
Pin Count 3
Standard Package Name TO-220
Supplier Package TO-220AB
Mounting Through Hole
Package Height 9.02(Max)
Package Length 10.67(Max)
Package Width 4.83(Max)
PCB changed 3
Tab Tab
Lead Shape Through Hole
