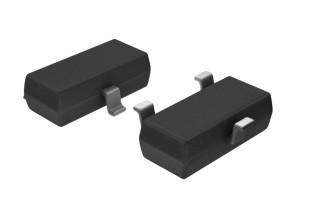

IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
IRLML2803TRPBF High Power MOSFET N-CH Si 30V 1.2A 3 Pin SOT-23 T/R
Specifications
Brand Name :
Infineon
Model Number :
IRLML2803TRPBF
Place of Origin :
CHINA
MPN :
IRLML2803TRPBF
MFR :
Infineon
Category :
Mosfet
Size :
1.02*3.04*1.4mm
MOQ :
package qty
Price :
contact sales for updated price
Packaging Details :
tape and reel
Delivery Time :
2 weeks
Payment Terms :
T/T
Supply Ability :
1000+
Description

IRLML2803TRPBF Infineon Trans MOSFET N-CH Si 30V 1.2A 3-Pin SOT-23 T/R

Product Technical Specifications

EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
Automotive No
PPAP No
Product Category Power MOSFET
Material Si
Configuration Single
Process Technology HEXFET
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 30
Maximum Gate Source Voltage (V) ±20
Maximum Gate Threshold Voltage (V) 1(Min)
Maximum Continuous Drain Current (A) 1.2
Maximum Drain Source Resistance (MOhm) 250@10V
Typical Gate Charge @ Vgs (nC) 3.3@10V
Typical Gate Charge @ 10V (nC) 3.3
Typical Gate to Drain Charge (nC) 1.1
Typical Gate to Source Charge (nC) 0.48
Typical Reverse Recovery Charge (nC) 22
Typical Input Capacitance @ Vds (pF) 85@25V
Typical Output Capacitance (pF) 34
Maximum Power Dissipation (mW) 540
Typical Fall Time (ns) 1.7
Typical Rise Time (ns) 4
Typical Turn-Off Delay Time (ns) 9
Typical Turn-On Delay Time (ns) 3.9
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Pin Count 3
Standard Package Name SOT
Supplier Package SOT-23
Mounting Surface Mount
Package Height 1.02(Max)
Package Length 3.04(Max)
Package Width 1.4(Max)
PCB changed 3
Lead Shape Gull-wing
