Refrigeration Air Compressor Air Dryer 35°Inlet Temperature 220V 50HZ 1PH
Refrigeration Air Compressor Air Dryer 35°Inlet Temperature 220V 50HZ 1PH
Specifications
Brand Name :
Willing-cool
Model Number :
YD-1S
Certification :
CO
Place of Origin :
Xiamen, China
MOQ :
10pcs per item
Price :
FOB Xiamen, $200-300/pcs
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
3,000pcs/month
Delivery Time :
5-30 work days
Packaging Details :
carton as custom
Working Pressure/Rated Pressure :
≤0.8MPa
Power Voltage :
220V/50HZ/1PH
Capacity :
150L/min
Power :
240W
Product Name :
refrigeration air dryer
Pressure Dew Point :
0-5°C
Support :
1 Year warranty
Key Selling Points :
Energy Saving
Description

Long Lifetime 240W Refrigerated Compressed Air Dryer For Biological Pharmaceutical Industry

Main Features

1. Air inlet pressure:0.8MPa
Air inlet temp:35 ℃
Ambient temp:5-50 ℃

2. Three-in-one design for all series: Heat exchanger, Evaporator and Gas-liquid Separator be combined
together with compact size.
3. Energy saving of 20% for compressor power.
4. Bigger pre cooler and back heating design to reduce the 15% load for the evaporator to reduce the cost.
5. Standard configuration of real time display the dew point
6. Standard configuration of expansion valve and hot gas by pass valve
7. Standard configuration of electronic drainer

Product Info

Model No. YD-1S YD-1 YD-2 YD-3
Inlet flow
L/min@0.8MPa*		 150L/min 150L/min 280L/min 420L/min
Power 240W 240W 290W 390W
Working Pressure ≤0.8MPa ≤0.8MPa ≤0.8MPa ≤0.8MPa
Voltage 220V/110V 220V/110V 220V/110V 220V/110V
Inlet Temperature 35℃ 35℃ 35℃ 35℃
Filter Accuracy 50um 50um 50um 50um
Inlet / Outlet connector G1/2 G1/2 G1/2 G1/2
Overall Dimensions 210*162*200mm 230*161*285mm 230*161*285mm 230*167*345mm
Wight 6kg 7kg 7.5kg 9.5kg

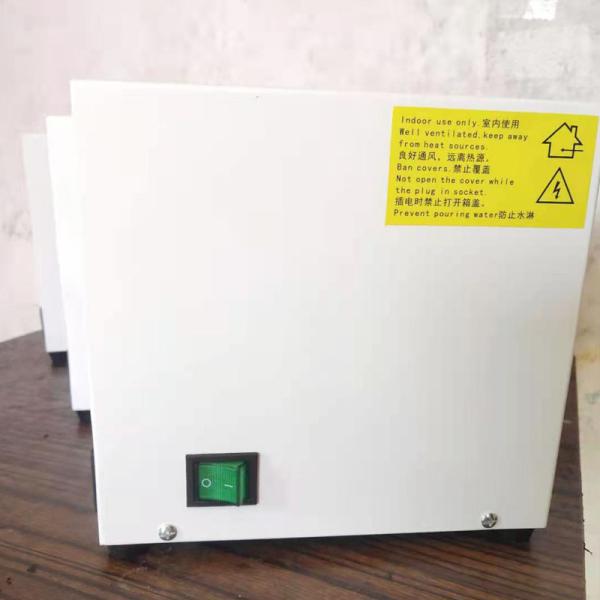

product photos:

Refrigeration Air Compressor Air Dryer 35°Inlet Temperature 220V 50HZ 1PH

Refrigeration Air Compressor Air Dryer 35°Inlet Temperature 220V 50HZ 1PH

Comprehensive product line


*Refrigerated air dryer
Air cooled, water cooled, normal temperature, high inlet temperature, combined one and so on.
*Desiccant air dryer
Heatless, heated, Heat of compression, Blowing heat
*Energy - saving products
Zero gas consumption compression heat, blast heat dryer
*Other products
Pre-cooler machine, water chiller, heat recovery unit, filter accessories and other products

FAQ

Q1. Are you trading company or manufacture ?
A: We are professional manufacture of air compressor dryer of Xiamen, China several years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.

Q5. How about your warranty?
A: One year for the whole machine.
