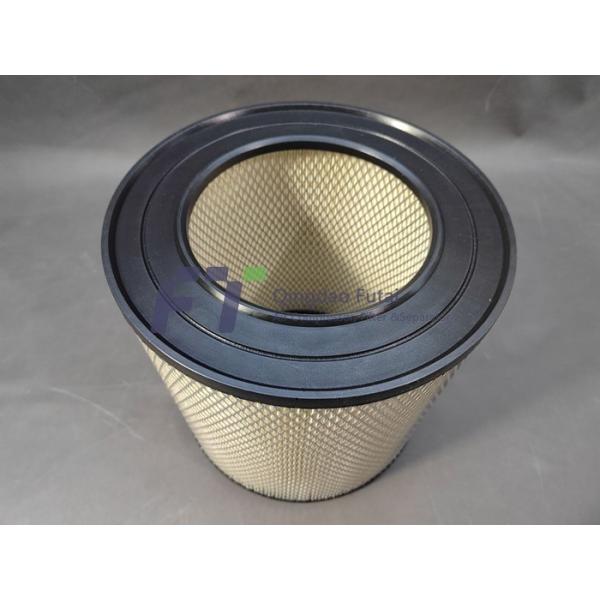

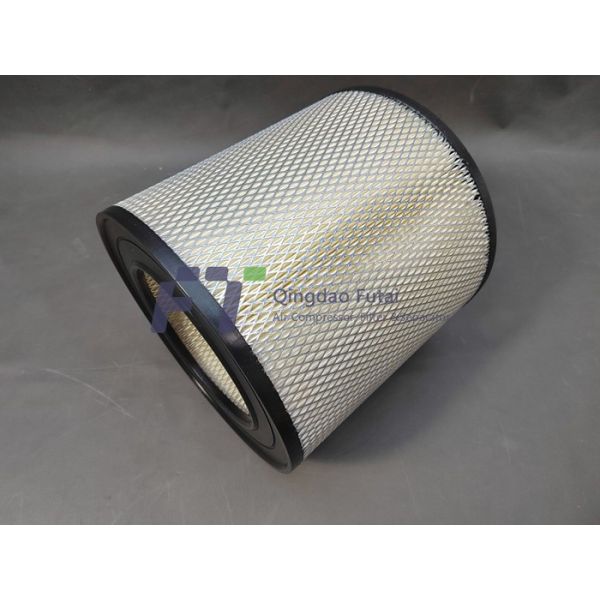

Alternative High Quality Screw Compressor Air Filter 1031636

Product Description:

Air Compressor filter is composed of an Air filter assembly and a filter element. Externally, it is connected to the Air inlet valve of the Air compressor through joint and threaded pipe to filter dust, particles and other impurities in the Air.Different air compressor models can choose the air filter to be installed according to the size of the intake air volume.

Air filter element classification:

1.Vertical air filter: consists of four basic housings and a variety of filter connectors to meet customer's special requirements.The shell, filter joint and filter element do not contain metal parts.Depending on the design, the rated flow rate of the module system can range from 0.8m³/min to 5.0m³/min.

2.Horizontal air filter: collision-proof plastic case, no rust.Large air intake, high filtration efficiency.The product consists of seven different housings and two types of exhausts to meet the special requirements of customers.Depending on the design, the rated flow rate of the module system can range from 3.5 m³/min to 28 m³/min.

When the use of air filter filter element expires, the necessary maintenance should be carried out, maintenance should comply with the following basic guidelines:

1.According to the differential pressure switch, or the information of the differential pressure indicator to select the maintenance time.Periodic site inspections or cleaning can sometimes do more harm than good.There is a risk of dust entering the engine because the filter element is damaged.

2.It is recommended to replace the filter element rather than clean it, which can avoid the damage of the filter element and protect the engine to the maximum extent.

3.When you have to clean the filter element, special attention should be paid not to wash the filter element.

4.Please note that the safety core cannot be cleaned and can only be replaced.

5.After maintenance, clean the interior and sealing surface of the shell carefully with a wet cloth.

Cross Reference:

If you don't find the part number you want in my online shop, please do not hesitate to contact us, Maybe I can check it for you. At the same time, we are a factory and can also customize unconventional filter elements for you at any time.
