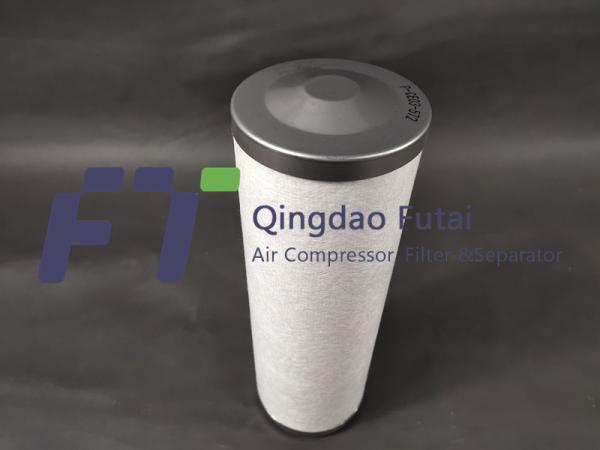

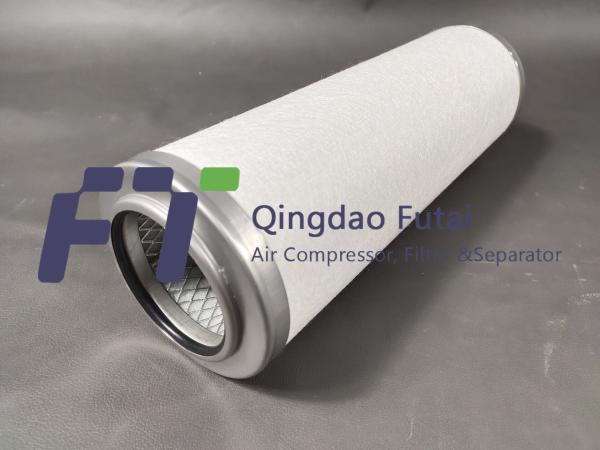

Kobelco Screw Compressor Oil Separator Replacement P-CE03-572
Kobelco Screw Compressor Oil Separator Replacement P-CE03-572
Kobelco Screw Compressor Oil Separator Replacement P-CE03-572
Kobelco Screw Compressor Oil Separator Replacement P-CE03-572
Specifications
Brand Name :
QINGDAO FUTAI
Model Number :
P-CE03-572
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1
Packaging Details :
Carton, Wooden cases, Plastic bag, etc, make the package as your requirement.
Part Number :
P-CE03-572
Product Name :
Oil Separator Element
Application :
KOBELCO Screw Air Compressor
Warranty :
4000 hours
Package :
Customers' Request
MOQ :
1
Filtration efficiency :
99.9%
Dimension :
Standard
Description

Kobelco Replacement P-CE03-572 Screw Compressor Air Oil Separator

One failure is the rupture of an oil and gas separator.Performance is that the oil in the screw air compressor is taken away by compressed air, the drain pipe of the pipe filter is filled with oil, the screw air compressor oil level is reduced, and it is forced to emergency stop for replacement.From the fault point of view, because the oil and gas separator used is dirty, the penetration resistance of compressed air is added and the pressure is increased during the oil and gas separation, which finally leads to the rupture of the oil and gas separator.

Screw or sliding vane air compressor and other oil injection, oil drop lubrication air compressor, oil channel, oil cost is severe, it is likely that the oil and gas separator filter element has failed or damaged, commonly known as fly oil, may need to replace the oil and gas separator filter element, the relevant position of seals such as O-ring, gaskets, etc.There is also a possibility that the oil filter or valve is blocked and the pipeline is damaged. The oil after separation can not return to the suction end, resulting in the loss of lubricating oil.

Machine Model Oil Separator Air Filter Oil Filter
AG280A-15/SG280A-15 P-CE03-596/592 S-CE05-502 P-CE13-526
AG390A-22 P-CE03-596/592 S-CE05-503 P-CE13-526
SG390-22 P-CE03-596/592 S-CE05-503 P-CE13-526
VS420A-22 P-CE03-596/592 S-CE05-503 P-CE13-526
AG580A-30 P-CE03-577 S-CE05-503 P-CE13-528
SG580A-30 P-CE03-577 S-CE05-503 P-CE13-528
AG720A-37 P-CE03-577 S-CE05-504 P-CE13-528
SG702A-37 P-CE03-577 S-CE05-504 P-CE13-528
VS730A-37 P-CE03-577 S-CE05-504 P-CE13-528
AG1070A-55 P-CE03-595 P-CE05-576 P-CE13-533
SG1070A-55 P-CE03-595 P-CE05-576 P-CE13-533

AIR OIL SEPARATOR — SEPARATES THE OIL FROM THE COMPRESSED AIR

Kobelco Screw Compressor Oil Separator Replacement P-CE03-572

Kobelco Screw Compressor Oil Separator Replacement P-CE03-572

Features


1. Low pressure drop and energy saving

2. High quality filtration media
3. Low oil consumption
4. Reliable and stable
5. Compact design
6. Long life span
