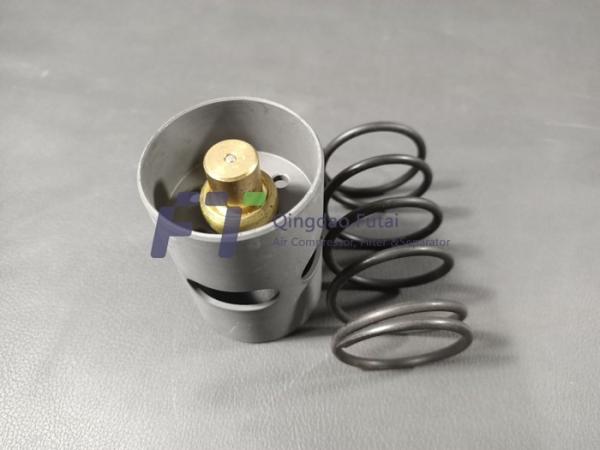

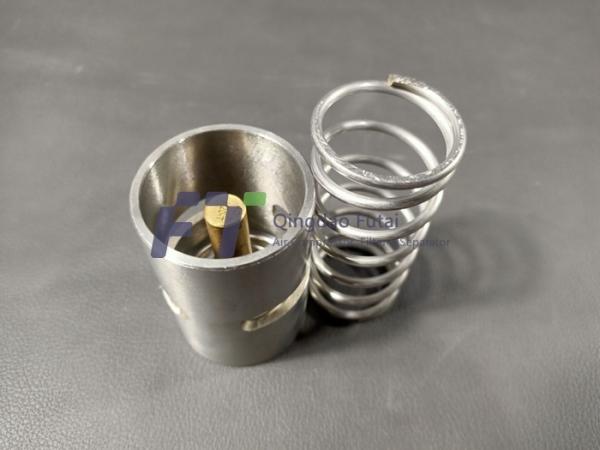

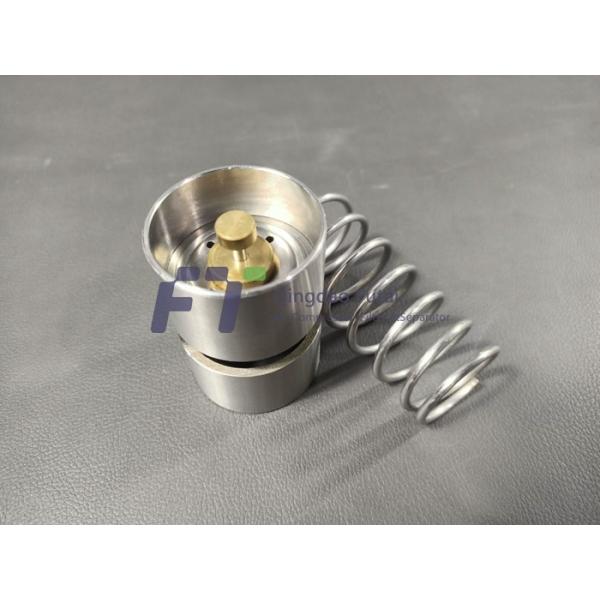

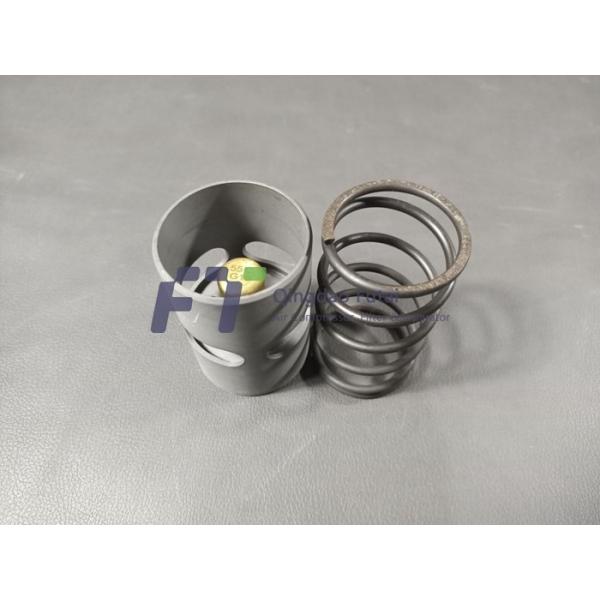

1623992500 Replacement Air Compressor Thermostat Valve For Atlas Copco

Product Description:

Atlas air compressor temperature control valve is usually called solenoid temperature control valve in the early stage. In recent years, through the digestion and absorption of imported air compressor technology, temperature control valve is also used more. This kind of temperature control valve is composed of two parts: valve and temperature control element.
The temperature control element includes special expansion temperature sensing paraffin and copper shell. At a specific phase change temperature, the expansion stress of the paraffin is a constant value, which is far greater than the thrust required by the thermostatic valve.
The expanded paraffin is sealed in the shell, and when the temperature rises to the paraffin melting point, the volume pushes the jacking rod.
The slide valve that drives the temperature control valve moves. When the temperature drops, the paraffin shrinks when it is cold. Under the action of spring rebound, the valve is reset.

This Atlas air compressor features:

Large thrust, paraffin expansion inside the component can reach more than 200 atmospheric pressure, forming a good linear temperature curve, so the temperature control ability is strong, the component is rigid, high strength, long life.

Matters needed for air compressor temperature control valve:

1.The installation step is a key step for the precautions of the air compressor temperature control valve. In the installation step, the steps must be strictly followed and the process cannot be omitted.

2.Regular maintenance is required during use to ensure that it does not affect its normal function. After working for a long time, certain impurities will remain on the surface, so we must do a good job of cleaning and keep records.

3.When cleaning the temperature control valve, every step must be taken seriously. Because the temperature control valve is composed of multiple small parts, the disassembly and installation should be carried out gradually according to the manual. If any damage or deformation is found, immediately Replace it.

Pressure Sensor P.N:

If you don't find the part number you want in my online shop, please do not hesitate to contact us, Maybe I can check it for you. At the same time, we are a factory and can also customize unconventional filter elements for you at any time.
