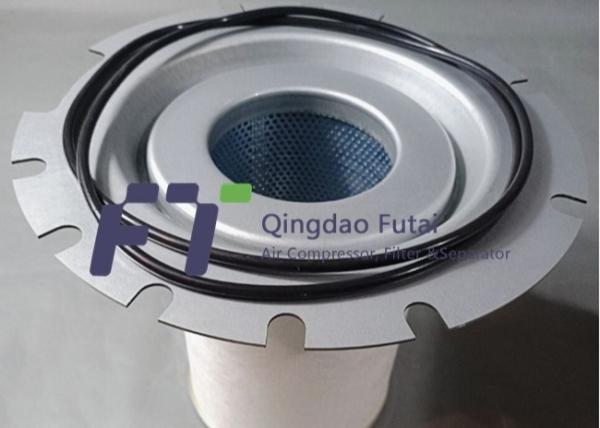

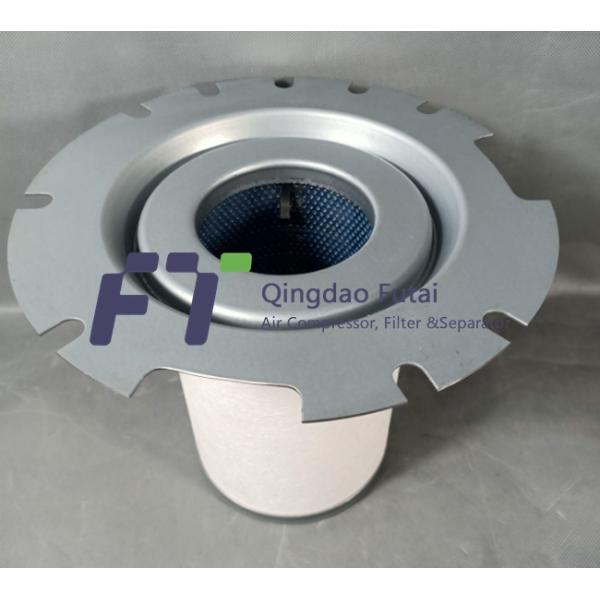

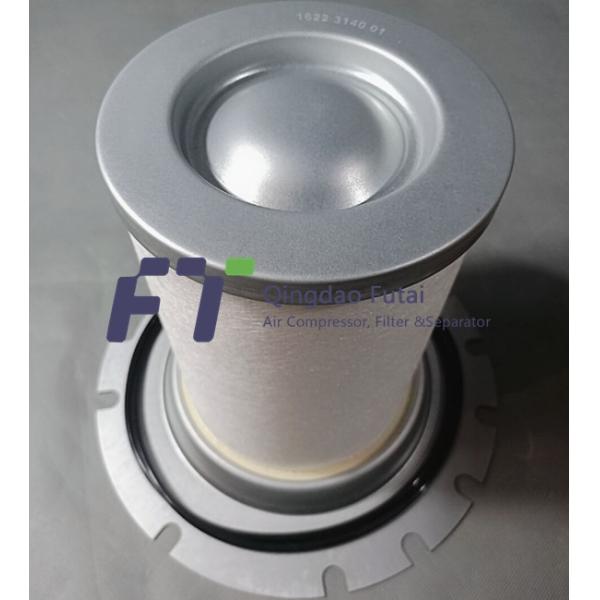

Atlas Copco Alternative 1622314001 Screw Compressor Air Oil Separator
Atlas Copco Alternative 1622314001 Screw Compressor Air Oil Separator
Atlas Copco Alternative 1622314001 Screw Compressor Air Oil Separator
Atlas Copco Alternative 1622314001 Screw Compressor Air Oil Separator
Specifications
Model Number :
1622314001
MOQ :
1
Packaging Details :
Carton, Wooden cases, Plastic bag, etc, make the package as your requirement.
Place of Origin :
CHINA
Brand Name :
QINGDAO FUTAI
Certification :
ISO 9001:2015
Part Number :
1622314001
Product Name :
Air Oil Separator
Application :
Atlas Copco Compressor
Warranty :
4000 hours
Material :
Fiber Glass
Type of spare part :
Alternative / Compatible
Size :
Standard Size
Efficiency :
99.9%
Description

Atlas Copco OEM 1622314001 Screw Compressor Air Oil Separator

Causes of failures/ apparent failures

  • Scavenge line too short

Scavenge line does not reach into internal bowl at the base of the separator.

Result: high oil carry over

  • Scavenge line too long

End of scavenge line seats against base of bowl forming a seal. No oil, or an insufficient quantity is sucked up by the scavenge line. Compressor manufacturer’s gap clearance is normally 1 to 2 mm alternatively, ensure tapered cut to end of scavenge line.

Result: high oil carry over

  • Scavenge line blocked with dirt

Result: high oil carry over

  • Scavenge line filter blocked

Some compressor models are fitted wit a small stainless steel mesh filter at some point in the scavenge line which is to be cleaned on a regular basis. If not cleaned the filter will block resulting in no scavenge action.

Result: high oil carry over.

  • Scavenge line cracked / damaged

Allows atmospheric air to be ingested and insufficient or no oil removed from separator.

Result: high oil carry over.

Part No.

1622314001
Filtration efficiency 98%
Working Life ﹥4000H
Filter Material HV Filter
Residual Oil ＜3PPM


Features

1. Low pressure drop and energy saving

2. High quality filtration media
3. Low oil consumption
4. Reliable and stable
5. Compact design
6. Long life span

Notes for air oil separator:

  • The air oil separator can only be replaced, not cleaned;
  • Do not connect the filter with a flange.
  • The oil return pipe must be inserted into the bottom of the filter to avoid affecting the oil return.

AIR OIL SEPARATOR — SEPARATES THE OIL FROM THE COMPRESSED AIR

Atlas Copco Alternative 1622314001 Screw Compressor Air Oil Separator

Atlas Copco Alternative 1622314001 Screw Compressor Air Oil Separator
