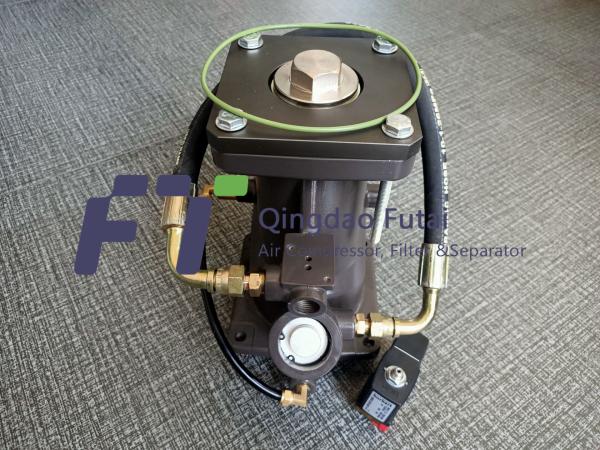

Intake Valve 1613683600 For Atlas Copco Air Compressor

Common faults

1,Is not loaded

The intake valve does not load the main reasons are: the solenoid valve does not get electricity; Solenoid valve damage; Solenoid valve with impurities caused by bad action or exhaust port blockage; Due to the deterioration of lubricating oil caused by the intake valve piston seal ring and cylinder friction increased and cannot be reset; The accommodating valve controls the closing of the intake valve. Elimination method: check the equipment circuit, to ensure that the solenoid valve is normal; Replace the solenoid valve coil or the entire solenoid valve body; Remove the solenoid valve to remove internal impurities; Clean the oil stains inside the intake valve, clean the oil stains inside the cylinder of the intake valve, and replace the high-quality lubricating oil; It is not recommended for non-professionals to adjust the adjusting valve (module) of the intake valve.

2,Not unloaded

The intake valve does not unload the main reasons are: the solenoid valve is not powered off; Solenoid valve damage; The small hole in the solenoid valve is blocked; The cut-off hole in the intake valve is blocked; The unloading speed is too fast. Elimination method: check the circuit, restore the solenoid valve normal; Replace the solenoid valve coil or the entire solenoid valve body; Open the solenoid valve to remove internal impurities; Open the intake valve to remove impurities in the closure hole; Adjust the discharge speed, increase the pipe diameter or add an elbow.

32, Fuel injection of the intake valve

The main reasons for the injection of the intake valve are: poor oil and gas separator; Oil return check valve is blocked; The air filtration effect is not good, the inlet valve core sealing surface adhesion impurities caused by poor sealing; Compressor working environment is bad, inlet valve piston and spring seat matching pair wear. Elimination method: check the oil and gas separator, and replace the new oil core; Remove the oil return check valve, remove the internal impurities of the check valve; Check the air filter, and replace the new air filter, air inlet valve pipe clean; Shorten the maintenance period and suggest the user to improve the compressor working environment

Intake Valve
