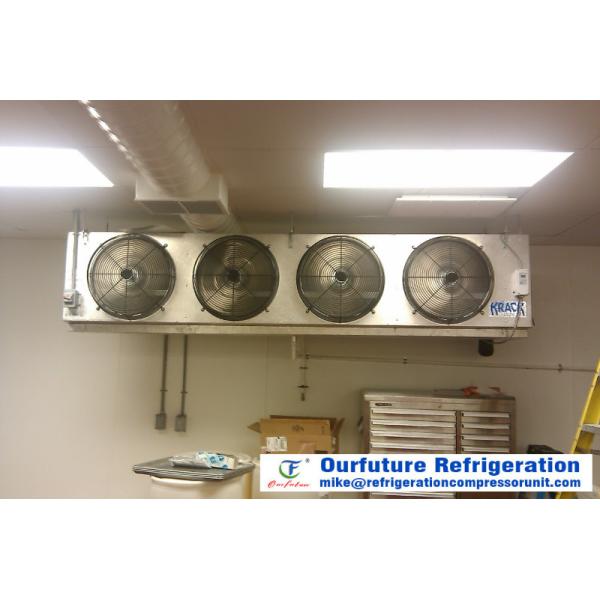

Low Noise Air Cooling Units With Water Spray Defrosting For Refrigerated Cooling
Low Noise Air Cooling Units With Water Spray Defrosting For Refrigerated Cooling
Low Noise Air Cooling Units With Water Spray Defrosting For Refrigerated Cooling
Low Noise Air Cooling Units With Water Spray Defrosting For Refrigerated Cooling
Low Noise Air Cooling Units With Water Spray Defrosting For Refrigerated Cooling
Low Noise Air Cooling Units With Water Spray Defrosting For Refrigerated Cooling
Specifications
Model Number :
TAF250-0404E
Certification :
ISO 9001:2008, CE, CCC, QS
Place of Origin :
China
MOQ :
1 unit
Price :
nigotiation
Supply Ability :
800 units per month
Delivery Time :
20 days
Packaging Details :
Plastic film + Plywood case
Fan brand :
Ebmpapst, Ziehl;Abegg, Dunli, etc.
Defrost Type :
Water flush, hot gas defrost, electrical heating defrost
Refrigerant :
R404a, R507a, R407c, R22, CO2
Voltage :
380V/3P/50Hz, 220V/1P/60Hz
Use :
Cold room, blast freezer, cold chain logistic, pharacy, refrigeration
Description

Ourfuture unit cooler has the following characteristic to provide excellent performance:

We use low noise fan, main tenance free fan-motors, with protection class F and IP54, compliant to DIN 40050. Standard motors are suitable for temperatures from -40 deg C to 45 deg C, however motors with other temperature requirements are available on request. Standard motors are 2 speed and capacities and air flow shown in tables are at high speed(delta wired). Standard air discharge is horizontal, draw through, yet other arrangements are possible.

The integral thermal contact(termistors) must be used as motor protection. We reserve the right to use different fan manufactueres and technical motor data may vary. Power consumption may also vary at different operating temperatures and due to external pressure drop. For corresponding electrical data please refer to fan/motor labels on units.

Our noise pressure levels shown in tables are calculated in accordance with EN 13487

For defrosting we can provide defrosting by water spray, electrical defrosting or hot gas defrosting.

Model Diameter of fan No. of fans Capacity R404A SC5 Air throw Capacity R404A SC5 Air throw Exchange surface
kW m kW ㎡
BVF180-V110 800 1 25.2 43 24.4 40 160
BVF180-V212 1 29.2 39 28.6 38 211
BVF280-V110 2H 50.4 45 48.8 42 321
BVF280-V212 2H 58.4 41 57.3 40 421
BVF280-V110 2V 51.2 45 49.5 42 321
BVF280-V212 2V 56.2 41 55.3 40 321
BVF480-V110 4 102.2 47 98.9 44 642
BVF480-V212 4 112.3 43 110.5 42 842
BAF180-V110 800 1 25.2 22 24.4 21 160
BAF180-V212 1 29.2 20 28.6 19 211
BAF280-V110 2H 50.4 23 48.8 22 321
BAF280-V212 2H 58.4 21 57.3 20 421
BAF280-V110 2V 51.2 23 49.5 22 321
BAF280-V212 2V 56.2 21 55.3 20 321
BAF480-V110 4 102.2 25 98.9 24 642
BAF480-V212 4 112.3 23 110.5 22 842
