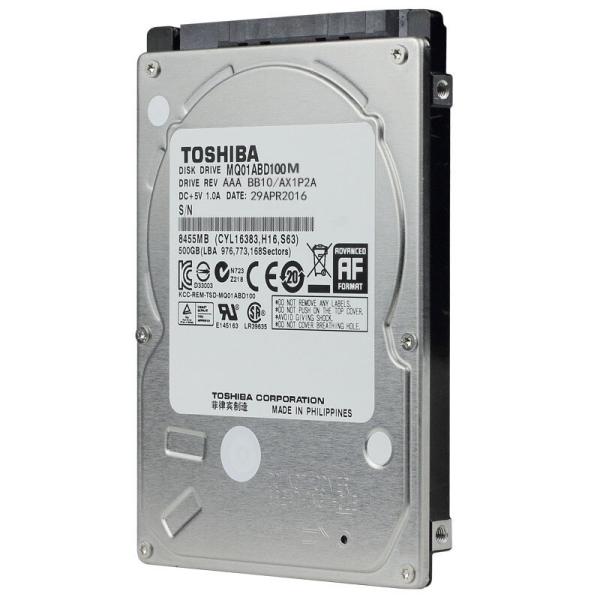

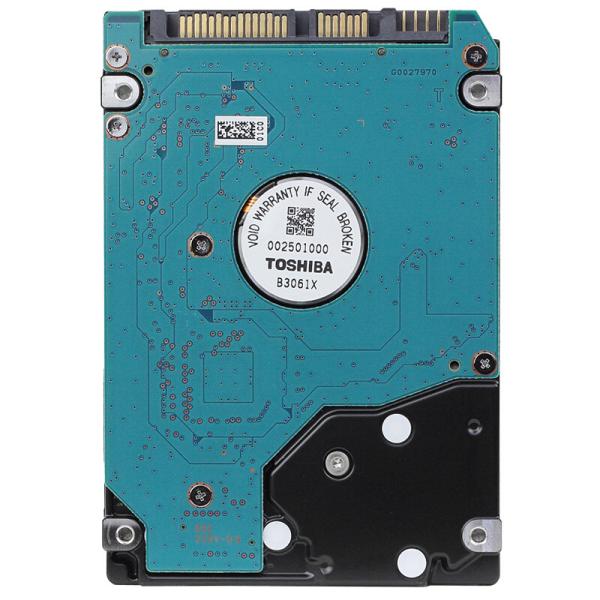

5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
5400 RPM 1TB Computer Hard Disk Drive 2.5 Inch With Low Power Consumption
Specifications
Brand Name :
Brand
Model Number :
MQ01ABDXXX
Place of Origin :
CN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
Negotiable
Delivery Time :
5-8 working day
Packaging Details :
Industrial packing
HDD Formatted Capacity :
1TB/500GB/320GB
HDD size :
2.5-inch, Low Profile Form Factor
HDD Rotation Speed :
5,400 rpm
Interface :
Serial ATA 2.6 / ATA-8
Weight :
117 g
Dimension :
100.45*69.85*9.5
Description

2.5" 1TB HDD 5400RPM Internal Hard Drive Bare Drive For Laptop Usage

KEY FEATURES

  • Up to 1 TB of Storage Capacity
  • 2.5-inch 9.5 mm Height Form Factor
  • SATA up to 6.0 Gbit/s with SATA Power Save
  • Advanced Format (AF) 512e
  • MTTF of 600,000 hours
  • Low Power Consumption versus 3.5-inch HDDs (DT01ACA series)
  • SATA Power Save
  • RoHS compatible, halogen free, antimony free
  • Improved Performance with Native Command Queue (NCQ)
  • Optimize HDD health with SMART

APPLICATIONS

  • For General-Purpose Notebook PCs
  • For TV and Recorder
  • Gaming Consoles
  • External Storage


MAIN SPECIFICATIONS

Interface Serial ATA 2.6 / ATA-8
Formatted Capacity 1 TB 500 GB 320 GB

Performance

 Interface Speed 6.0 Gbit/s Max.
Rotation Speed 5,400 rpm

Average Latency

Time

 5.56 ms
Buffer Size 8 MiB

Logical Data

Block Length

 MQ01ABDxxx HOST: 512 B, DISK: 4,096 B
Supply Voltage Allowable Voltage 5 V ± 5%

Power

Consumption

 Read / Write 1.5 W Typ.
Low Power Idle 0.55 W Typ.

Acoustics

(Sound Power)

 Idle 23 dB 17 dB
Seek 24 dB 19 dB

RELIABILITY

Model Number

MQ01ABDxxx
MTTF 600,000 hours
Non-recoverable Error Rate 1 error per 1014 bits read

MECHANICAL SPECIFICATIONS

Model Number

MQ01ABD100

MQ01ABD050

MQ01ABD032
Height 9.5 ± 0.2 mm
Width 69.85 ± 0.25 mm
Length 100.45 mm Max.
Weight 117 g Max. 107 g Max.

ENVIRONMENTAL LIMITS

Item

Specification

Temperature

 Operating 0 °C to 60 °C
Non-Operating - 40 °C to 70 °C

Humidity

 Operating 8 % to 90 % R.H. (No condensation)
Non-Operating 5 % to 95 % R.H. (No condensation)


Shock

 Operating 686 m/s2 {70 G} (2 ms half sine wave)


Non-Operating

2,940 m/s2 {300 G}

(2 ms half sine wave )

3,430 m/s2 { 350 G }

(2 ms half sine wave)

Vibration

 Operating 6.57 m/s2 { 0.67 G } ( 5 to 500 Hz )
Non-Operating 10.2 m/s2 { 1.04 G } ( 2 to 200 Hz )

Altitude

 Operating - 300 m to +3,048 m
Non-Operating - 300 m to +12,000 m


ENVIRONMENTAL LIMITS

Item

Specification

Temperature

 Operating 5 °C to 55 °C
Non-Operating - 40 °C to 65 °C

Humidity

 Operating 8 % to 90 % R.H. (No condensation)
Non-Operating 8 % to 90 % R.H. (No condensation)

Shock

 Operating 3,920 m/s2 {400 G} (2 ms half sine wave)
Non-Operating 8,820 m/s2 {900 G} (1 ms half sine wave )

Vibration

 Operating 9.8 m/s2 {1.0 G} (5 to 500Hz)
Non-Operating 49 m/s2 {5.0 G} (15 to 500Hz)

Altitude

 Operating - 300 m to +3,000 m
Non-Operating - 300 m to +12,000 m

REMARK

Read and write speed may vary depending on the host device, read and write conditions, and file size."2.5-inch" and "3.5-inch" mean the form factor of HDDs or SSDs. They do not indicate drive's physical size.

Item Notice

1.Please confirm the model and part number you want.

2.Leaving us messages or sending E-mail to us including your email address so that we can reply u as soon as we can!

Our Services

1. 30 days warranty

2. Returning policy:

1) Full warranty against any defective product

2) Refund is for the product price only

3) Handling, postage and shipping charges are not refundable.

4) Defective product must be returned within 30 days of original arrival date.

5) Refund or replacement will be arrange after receipt of the returned item

6) Buyer must return item at his/her own cost

Packaging & Shipping

1. Generally, We will ship the items within 3 -5working days(depends on Qty) after the payment is reached.

2. All the goods will be tested before shipment.

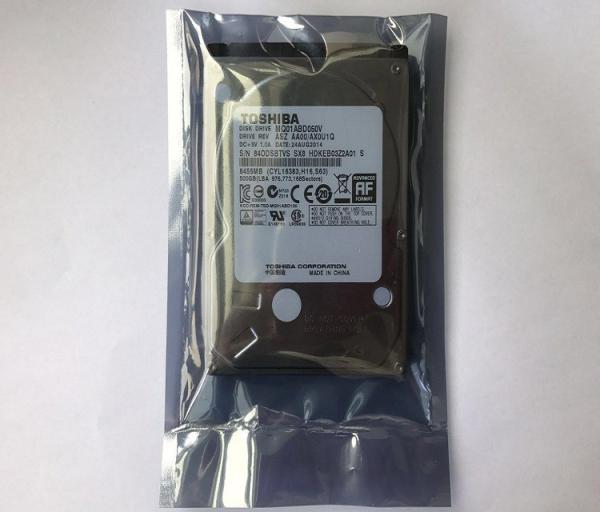

3. Packing in professional anti-static bag.
