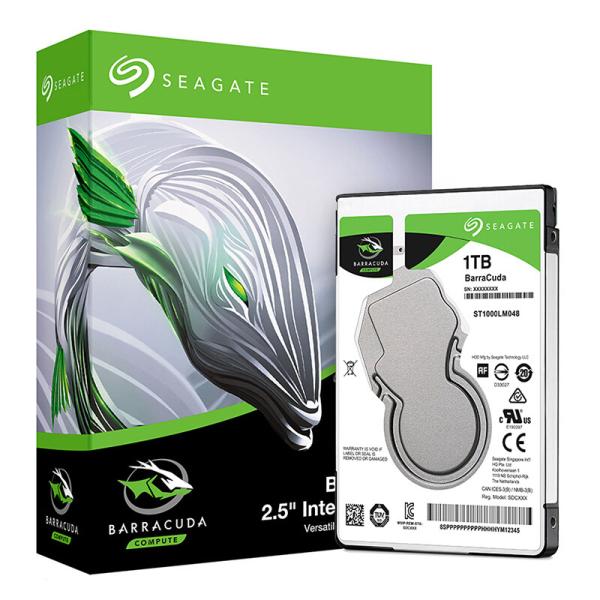

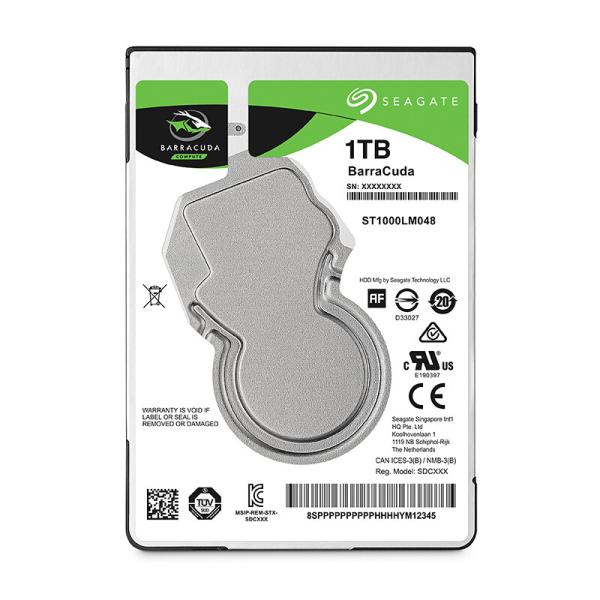

Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Seagate BarraCuda 2.5 SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop
Specifications
Brand Name :
Seagate
Model Number :
PN: ST1000LM048
Place of Origin :
CN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Negotiable
Delivery Time :
5-8 working day
Packaging Details :
Industrial Packaing
Color :
Green
Interface :
SATA 3
Capacity :
1T
Cache :
128 MB
Speed :
5400 RPM
Warranty :
2 Years
Size :
100*67*7mm
Description

Seagate BarraCuda 2.5 " SATA Interface Internal Hard Drive 1TB 5400 RPM 128MB Cache For Laptop

Key Advantages

Broadest 2.5-inch hard drive portfolio with up to 5TB capacity and both 7mm and 15mm form factors suitable for a variety of compute applications.

Thinnest and lightest 2.5-inch hard drive with up to 2TB storage in a

7mm z-height, providing seamless upgrades of thin and light laptops and smaller form factor systems.

Fast data rates of up to 140MB/s enables superior PC end-user experience and snappier file transfers.

2.5-inch, 15mm z-height hard drives provide 3TB to 5TB in capacity, offering the highest-capacity 2.5-inch hard drives available for external or all-in-one storage.

15mm z-height enables slimmer all-in-one desktop PC drives while helping reduce system heat generation and vibration.

Low startup current configurations for 3TB to 5TB drives enable use in legacy low-current systems like USB-2 external boxes, while simultaneously lowering power consumption.

5TB drives can store more than 1.25 million songs and 600 hours of HD video

Application

Best-Fit Applications

• Laptops

• Mobile storage

• External storage systems

• All-in-one PCs

• Ultra-slim desktop PCs

HDD Specification

Specifications 5TB 4TB 3TB 2TB 1TB 500GB
Model Numbers ST5000LM000 ST4000LM024 ST3000LM024 ST2000LM015 ST1000LM048 ST500LM030
Bytes per Sector (logical/physical) 512/4096 512/4096 512/4096 512/4096 512/4096 512/4096
Performance
Interface SATA 6Gb/s SATA 6Gb/s SATA 6Gb/s SATA 6Gb/s SATA 6Gb/s SATA 6Gb/s
Data Transfer Rate (MB/s) Up to 140 Up to 140 Up to 140 Up to 140 Up to 140 Up to 140
Cache (MB) 128 128 128 128 128 128
Spindle Speed (RPM) 5400 5400 5400 5400 5400 5400
Reliability/Data Integrity
Load/Unload Cycles 600,000 600,000 600,000 600,000 600,000 600,000
Head-Rest Method QuietStep™ Ramp Load QuietStep Ramp Load QuietStep Ramp Load QuietStep Ramp Load QuietStep Ramp Load QuietStep Ramp Load
Nonrecoverable Read Errors per Bits Read, Max 1 per 10E14 1 per 10E14 1 per 10E14 1 per 10E14 1 per 10E14 1 per 10E14
Limited Warranty2 2 2 2 2 2 2
Power Management
Startup Current (+5V, A) 1.2 1.2 1.2 1.0 1.0 1.0
Read/Write Power, Average (W) 1.9/2.1 1.9/2.1 1.9/2.1 1.7/1.8 1.6/1.7 1.6/1.7
Idle Power, Average (W) 1.1 1.1 1.1 0.5 0.45 0.45
Environmental
Temperature, Operating (°C) 0 to 60 0 to 60 0 to 60 0 to 60 0 to 60 0 to 60
Temperature, Nonoperating (°C) –40 to 70 –40 to 70 –40 to 70 –40 to 70 –40 to 70 –40 to 70
Shock, Operating: 2ms (Gs) 300 300 300 400 400 400
Shock, Nonoperating: 1ms (Gs) 650 650 650 1000 1000 1000
Acoustics, Idle, Typical (bels—sound power) 2.6 2.6 2.6 2.2 2.0 2.0
Acoustics, Seek, Typical (bels—sound power) 2.7 2.7 2.7 2.4 2.2 2.2
Physical
Height (mm/in) 15/0.59 15/0.59 15/0.59 7.0/0.276 7.0/0.276 7.0/0.276
Width (mm/in) 69.85/2.750 69.85/2.750 69.85/2.750 69.85/2.750 69.85/2.750 69.85/2.750
Depth (mm/in) 100.35/3.951 100.35/3.951 100.35/3.951 100.35/3.951 100.35/3.951 100.35/3.951
Weight (g/lb, max) 190/0.42 190/0.42 190/0.42 90/0.198 90/0.198 90/0.198
Carton Unit Quantity 40 40 40 50 50 50
Cartons Per Pallet/Layer 60/10 60/10 60/10 60/10 60/10 60/10
Special Features
Multi-Tier Caching Technology™ Yes Yes Yes Yes Yes Yes
Halogen Free Yes Yes Yes Yes Yes Yes

Seagate BarraCuda 2.5
