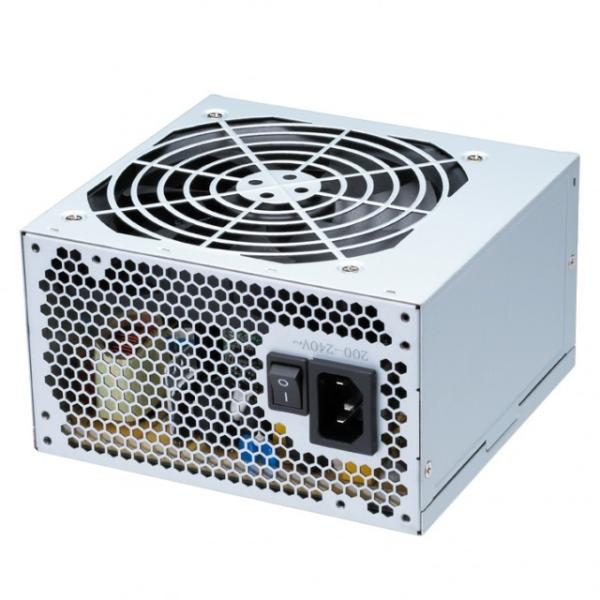

High Safety Standard Computer Power Supply With 12cm Fan Providing Ultra Silent Environment
High Safety Standard Computer Power Supply With 12cm Fan Providing Ultra Silent Environment
Specifications
Brand Name :
OEM
Model Number :
RPD450-60EPN(80)
Place of Origin :
CN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
Industrial package
PC PSU :
80 PLUS power supply 450w Desktop PSU
APPLICATION: :
Desktop
Efficiency :
90% 92% 89%
Dimension :
140 (L) x 150 (W) x 86 (H) mm
Input :
100-240 Vac
Output Wattage :
450W
Description

80 PLUS power supply 450W Desktop PSU RPD450-60EPN(80)


The Product Features

  • Worldwide Input Voltage 100Vac-240Vac
  • Active PFC Within 0.99 Power Factor Correction
  • Dual 12V Rails To Fulfill System Protection Demand
  • Forward & Mega Amp To Offer High Performance And Efficiency
  • 12cm Fan Provide Ultra Silent User Environment

PC PSU Introduction

  • Dimension 140 (L) x 150 (W) x 86 (H) mm
  • Output Wattage 450W
  • Efficiency 82% 85% 82%


The PC PSU DESCRIPTION

This specification describes a 450 watts power supply. With +5V stand-by, second 12V rail and remote ON/OFF control for ATX-12V system and a “Power factor collector (PFC)” circuit to meet EPA requirement of input range with in 115V/60HZ & 230V/50Hz.


APPLICATION: Desktop

WATTAGE: 450W

DIMENSION : 140mm(L) x 150mm(W) x 86mm(H)

PRODUCT HIGHLIGHT

  • Efficiency Level: 80PLUS Bronze
  • Erp Lot: <0.5W
  • Input Voltage: 100~240Vac

INPUT SPECIFICATION

  • Input Range: 100-240 Vac
  • Input Frequency: 47-63 Hz
  • Input Current:7.0 Amp (maximum) at 115 Vrms/ 60 Hz 3.5 Amp (maximum) at 230 Vrms/ 50 Hz.

OUTPUT SPECIFICATION

Output Rise Time:

  • +3.3V 20mS (maximum)
  • +5V 20mS (maximum)
  • +12 V1 20mS (maximum)
  • +12 V2 20mS (maximum)
  • -12 V 20mS (maximum)

GENERAL SPECIFICATION

  • Efficiency: 82%@ 20% load; 85%@ 50% load; 82%@ 100% load
  • PWOK Delay Time: 500ms > PWOK > 100ms
  • EMC Performance: EN55022 class B

​ENVIRONMENTAL SPECIFICATION

  • TEMP.Range: Storage Temperature: -40°C to + 70℃
  • MTBF:The power supply reliability, when calculated by “Bellcore” latest revision are exceed 100,000 hours with all output at maximum load and an ambient temperature of 25℃
  • The special requirement is for cooling fan that MTTF be guarantee over 30,000 hours at 25℃ ambient temperature.

Output Voltage and Current Rating

+3.3V +5V +12V1 +12V2 -12V +5Vsb
Ripple-Noise(R-P) mV 50mV 50mV 50mV 120mV 200mV 50mV
Regulation Load % ±5% ±5% ±5% ±5% ±10% ±5%
Output Max.(A) 24A 15A 18A 18A 0.3A 2.5A
Output Min.(A) 0.5A 0.3A 0.5A 0.5A 0A 0A



NOTES

  • +3.3V & +5V total output not exceed 120W.
  • When +5V is load to 15A, the +3.3V maximum load is 13.63A.
  • When +3.3V is load to 24A, the +5V maximum load is 8A.
  • +12V1 & +12V2 total output not exceed 360W

This content is subject to change, please refer to specification for more detail.
