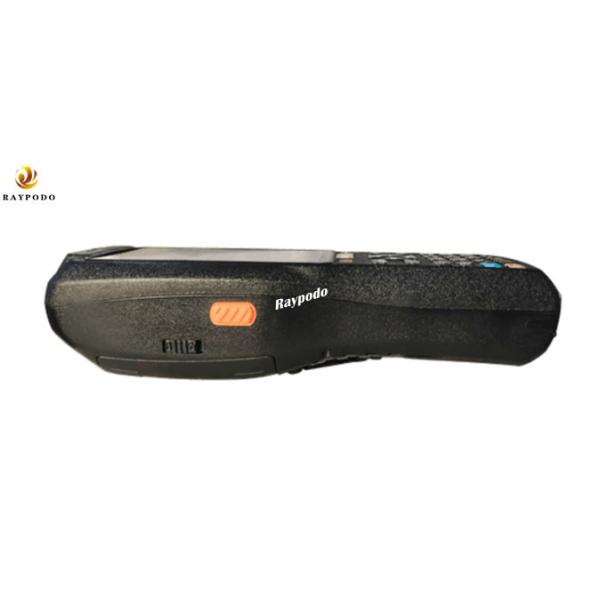

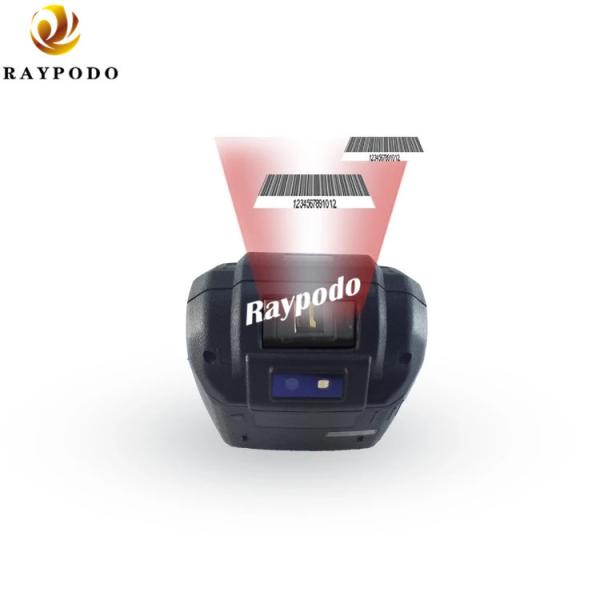

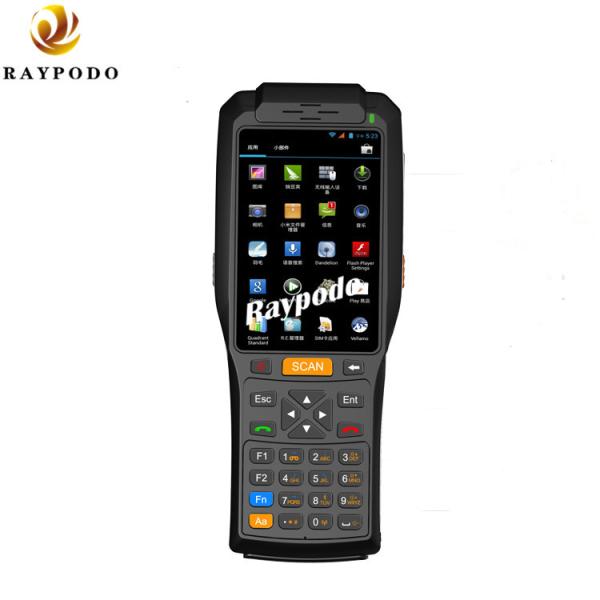

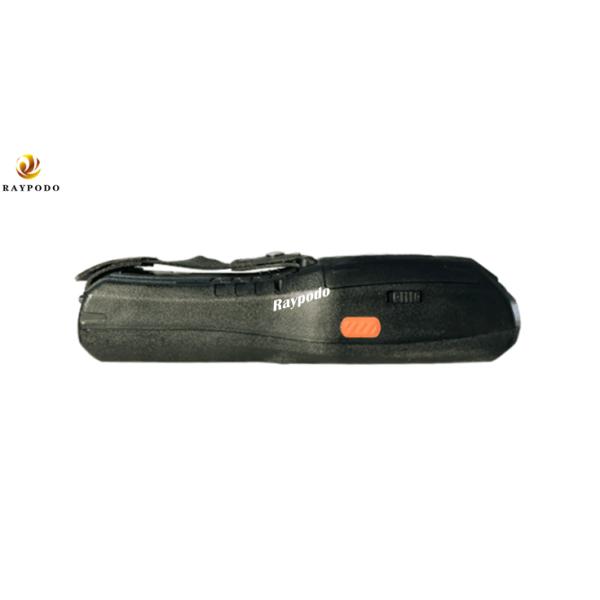

Raypodo RPDPC003 PDA support different ways of data collection, especially for Logistics tracking, business data management, mobile communication, Service and other filed. The barcode scanning and QR code scanning, RFID and NFC reading ,GPS Navigation and HD camera function that is eay to collect data anytime and anywhere.
Product Parameter
Performance | CPU | Qualcomm 8909 Cortex-A7 | |
Quad-core 1.5GHZ | |||
OS | Android 5.1 OS | ||
Memory | RAM: 1G | ||
NAND Flash: 8G | |||
Supports up to 32GB Micro SD card | |||
Physical Characteristics | Color | Black | |
Display | Size: 4'' | ||
IPS HD Color Touch Screen | |||
Resolution 800*480 | |||
Keyboard | Vitual qwerty keyboard and actual figure button | ||
interface | Mirco USB2.0 (supports OTG output) | ||
TF Card, Max extension 32G | |||
SIM card slot | |||
PSAM slot | |||
Battery | capacity 3200mA 7.4V lithium battery | ||
Duration 7-8 hours | |||
standby time over 120 hours | |||
Dimension | 209mm*83mm*49mm | ||
Accessories | 1*power adaptor, 1*USB cable, 1*OTG cable, 1*battery , 1*belt | ||
Communication | 4G/3G/2G | LTE-FDD B1 B3 B8 LTE-TDD B38 B39 B40 B41 WCDMA Band1 Band8 TD-SCDMA Band34 Band39 CDMA BC0 DCS1800 EGSM900 | |
GPS | Built-in GPS Support A-GPS(optional) | ||
Bluetooth | Bluetooth 4.0 | ||
WIFI | IEEE802.11b/IEEE802.11g | ||
Basic Functions | NFC | 13.56MHz, ISO14443A/B,ISO15693 protocol | |
Printer | 58mm thermal printer | ||
PSAM | ISO7816 protocol | ||
camera | 8MP, auto-focus | ||
Optional | 1D barcode | Symbol SE955 scan engine EAN-13,UPC-A,UPC-E,EAN-8, Code 128,Code 39,interleavd 2 of 5 etc. | |
2D barcode | Newland EM3096 scan engine. PDF417,EAN-13,UPC-A,UPC-E,EAN-8, Code 128,Code 39,interleavd 2 of 5 etc. | ||
Photo camera | 8MP, auto-focus |
Packaging and Shipping
Delivery Time: Shipped in 2 days after payment

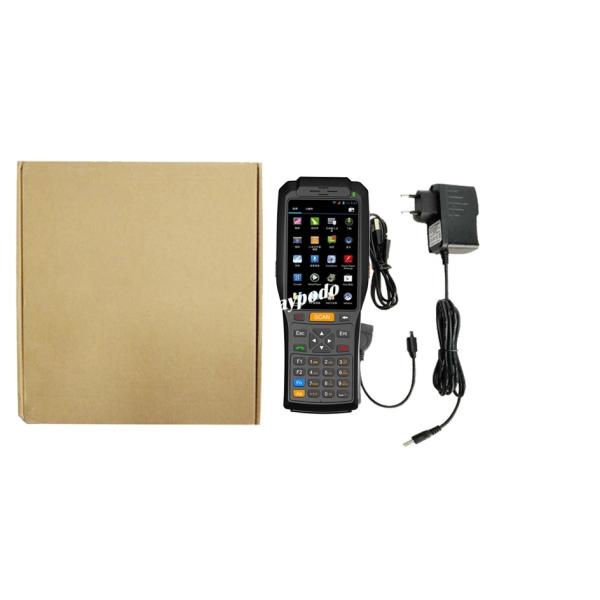

Accessory: 1* power plug, 1* USB cable, 1* strap, 1* battery, 1*paper roll
Shipping:
1. By Express: We deliver goods by DHL or UPS with door to door service, normally it will take 5-6 days to delivery
2. By Air : It will take 5-8 days to delivery, customer can pick up goods from airport by airway bill
3. By Sea: If you want, we can also arrange delivery by sea to main ports of worldwide from Shenzhen.
delivery time will be 20-40 days accordingly.
