Cross Stitch Computerized Multi Needle Quilting Machine 360 Degree Freely Quilt
Cross Stitch Computerized Multi Needle Quilting Machine 360 Degree Freely Quilt
Cross Stitch Computerized Multi Needle Quilting Machine 360 Degree Freely Quilt
Cross Stitch Computerized Multi Needle Quilting Machine 360 Degree Freely Quilt
Specifications
Brand Name :
EBD
Model Number :
YBD94-3
Certification :
CE,SGS,OMA
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
30-35days upon receipt of deposit
Packaging Details :
sea worthy packing
Model Code. :
YBD94-3 needle bars
Max Working Width :
2438mm
X area :
305mm
free Quilting Designs :
360°
Rated Voltage :
AC 380V
Voltage Range :
+-4%
Power :
4.5kw
Machine Size :
L4800*W1300*H1700(mm)
Machine Speed :
500-550 rpm
Certificates :
SGS,CE,OMA
Description

YBD94-3 Computerized Multi-needle comforter machine sewing and quilt stickmaschine cross stitch

Features:


1. Digital Control Ssystem for stability
2. Servo Motor control X/Y axis
3. Panasonic FCM control the main axis
4. hundreds of quilts patterns with machine
5. Quick and easy edit patterns
6. 360°quilt freely
7. can quilt independent patterns
8. Auto-thread brake system.
9. On-line Operation help

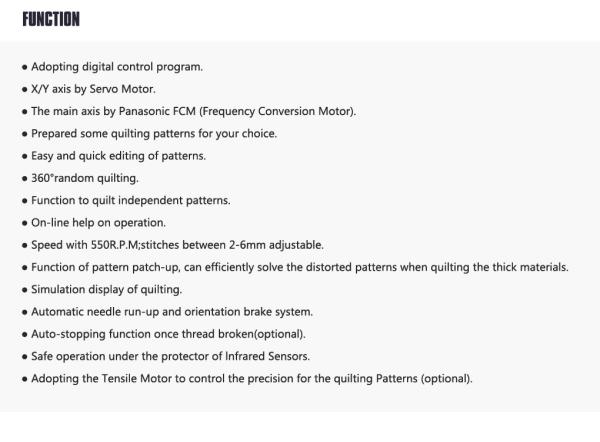

Main Function:

1). Adopt the advanced digital computer technology.

2). Saddling rack and roller are drive by servo motor.

3). Main axis uses the frequency conversion device.

4). The stitch can be freely set between 2-6mm.

5). more firm and durable needle bar frame structure with cheaper maintenance cost

6). 360 ° random quilting and limitless multi-span and independent pattern quilting

8). the machine is auto - stop when thread is broken with advanced interaction techniques

Machine Parameters:

Model TYPE.: 94-3Needles
affective fabric Width 2438mm
X Area: 305mm
Running Speed Range: 400~550n/m
Design Quilting Direction: 360°
Rated Voltage: AC380V
Voltage Deviation: ±4%
Power: 4.5kw
Machine Size: L4800*W1300*H1700(mm)

Payment Term:

T/T 30% deposit from the date receipt, balance 70% by T/T before shipment

Delivery:
within 35-40 days after received the deposit

1Year Warranty and Installation:

1. Offering some free spare part when ship with the machine
2. Our machine will come with easy-to-follow, step-by-step assembly instructions as well as a basic training CD and manual on CD
3. If required, YIBODA will send technician to your factory for product training, installation, food, room, and ticket will absorbed at customer's side.
4. Within a year of spare parts if any damage, the supplier free warranty. Due to the buyer for damage and damage resulting from force majeure is not in the scope of the warranty. (note bobbin case, bobbin, needles, fluorescent lamp, Bobbin Winder Machine is not in the scope of the warranty)

Quits Samples:

Cross Stitch Computerized Multi Needle Quilting Machine 360 Degree Freely Quilt
