Specifications
Model Number :
AIO-H61S39S-V1.1
Model Name :
AIO-H61S39S-V1.1Placa-mãe de All-in-One
Motherboard chip :
Intel Sandy/Ivy Bridge
Processor sipported :
2nd and 3rd generation Intel processors Optional: I5-2300, I5-2400, I7-2600, I3-3250, I5-3470, G2030, etc.
Display interface :
1*HDMI interface, 1*VGA interface (either with JVGA), 1*LVDS interface.
memory :
1*DDR3 SO-DIMM, 1333MHz/8G, single slot supports 8G at most
serial port :
1* The built-in serial port only supports RS232 mode.
LVDS function :
1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V), 1*3Pin turns on/off LVDS signal pin.,Support copy/extended display
product size :
Thin Mini-ITX motherboard specification, 170 x 170 mm x 4L
Packaging Details :
Carton box
Delivery Time :
5-8 working Days
Supply Ability :
10000pcs/Day
Description

AIO-H61S39S-V1.1 Motherboard All-in-One Intel sandy/ivy bridge DDR3 mini itx computer assambly

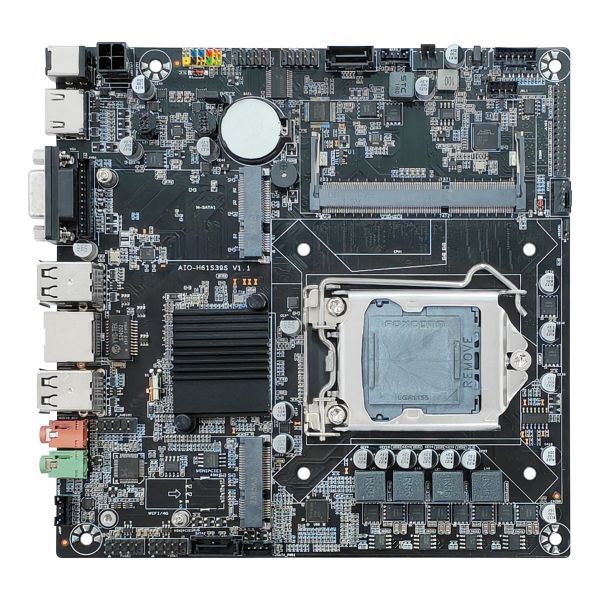

AIO-H61S39S is an all-in-one motherboard, based on the 2nd and 3rd generation of Sandy/Ivy Bridge of Intel. The motherboard supports single channel memory, MSATA and SATA mode SSD, different network access modes of RJ45/Mini PCIE WIFI module, and also supports rich peripheral interfaces, which is suitable for many different types of all-in-one machines in the industry.

l Design of platform based on Intel Sandy/Ivy Bridge

l Support 2nd and 3rd generation Intel processors

l Support single-channel SO-DIMM DDR3 memory

l 1× Mini PCIE WIFI slot

l 1 MSATA slot

l The rear IO provides 4xUSB2.0.

l Built-in pin can expand 4 USB2.0 interfaces.

l 1 x HDMI,1x VGA,1 x LVDS

l 1 x COM,2x SATA

l 1 x Gigabit network card, supporting PXE and network wake-up function.

l Support DC12V~19V power input

Model Name

AIO-H61S39S Placa-mãe de All-in-One

Motherboard chip

Intel Sandy/Ivy Bridge

CPU

Intel 2nd and 3rd generation CPU

Optional: I5-2300, I5-2400, I7-2600, I3-3250, I5-3470, G2030, etc.

memory

1*DDR3 SO-DIMM, 1333MHz/8G, single slot supports 8G at most.

Cunzhu

1*MSATA slot; 2*SATA 3.0 interface+2*SATA power interface

Display interface

1*HDMI interface, 1*VGA interface (either with JVGA), 1*LVDS interface.

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

WIFI

1*Mini PCIE WIFI slot

audio frequency

1*Line out； 1*MIC In； 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

Audio chip

Realtek ALC897 HD Audio Chip

serial port

1* The built-in serial port only supports RS232 mode.

Usb interface

IO interface: 4 * USB 2.0; Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded)

LVDS function

1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V), 1*3Pin turns on/off LVDS signal pin.

Support copy/extended display

LVDS backlight function

1*6Pin INVERTER interface, 1*4Pin manual adjustment of backlight pin.

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

1*DC socket; 2*2Pin built-in power socket (DC12V~19V power input)

product size

Thin Mini-ITX motherboard specification, 170 x 170 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 14W Full load power consumption: 124W

other

1 JCMOS jump cap; 1*3Pin JAT jump cap; 2*5Pin diagnostic card interface
