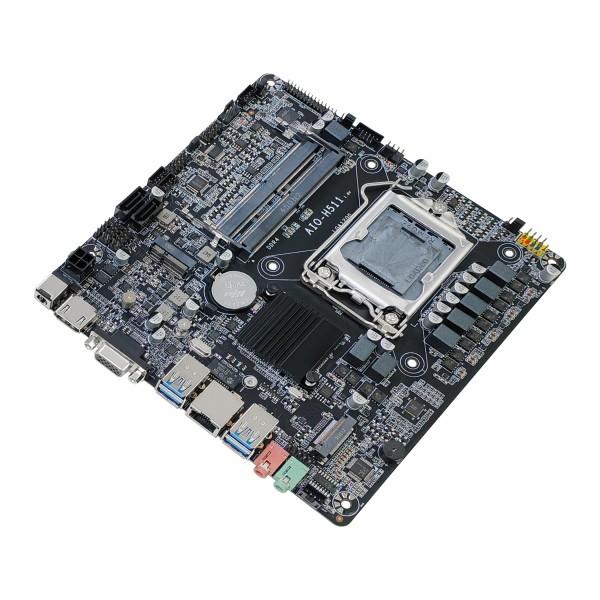

H510 AIO Thin Mini Itx Motherboard Mini Computer Motherboard Supports Intel i7 I5 I3 CPU

Specifications

Model Number :

AIO-H511-V1.8 AIO Mainboard

Model Name :

AIO-H511-V1.8 AIO Mainboard

Motherboard chip :

Intel H470

CPU :

Intel 10th and 11th generation CPU, TDP：65W Optional: I3-10100, I5-10400, I5-11400, I5-11500, I7-11700, etc.

memory :

2*DDR4 SO-DIMM, 3200MHz/64G, single slot supports 32G at most.

M.2 :

1*M.2 slot (NGFF/NVME automatic switching); 2*SATA 3.0 interface+2*SATA power interface

LVDS function :

1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V)1*3Pin turns on/off LVDS jump cap.Support copy/extended display

Power input :

1*DC socket; 1*4Pin built-in power socket (DC12V~19V power input)

system :

Windows S10, Windows S11 and Linux are supported.

Packaging Details :

Carton box

Delivery Time :

5-8 working Days

Supply Ability :

10000pcs/Day

Description

H510-AIO Mini Thin Itx Motherboard All-In-One Computer Mini Host Motherboard Supports 10th And 11th Generation Interi7/I5/I3 Cpu

AIO-H511 is an all-in-one motherboard based on Intel 10th and 11th generations.Comet Lake/Rocket LakeMotherboard supports dual-channel memory, M.2(NGFF/NVME) and SATA modes, different network access modes of RJ45/M.2 WIFI, and also supports rich peripheral interfaces, which is suitable for many different types of industrial computers in the industry.

l Based on IntelComet Lake/Rocket LakePlatform design

l Support 10th and 11th generation Intel processors

l Support dual-channel SO-DIMM DDR4 memory

l 1 × M.2 2230 slot (supporting M.2 WIFI)

l 1 M.2 2280/2240 slot (supporting NGFF/NVME mode)

l The rear IO provides 4 x USB3.0.

l Built-in pin can expand 5 USB2.0 interfaces.

l 2 x SATA hard disk interface

l 1 x HDMI,1 x VGA,1 x LVDS

l 1 x COM

1 x Gigabit network card, supporting PXE and

l network wake-up function.

l Support DC12V~19V power input

l Windows S10, Windows S11 and Linux are supported.

Model Name	AIO-H511-V1.8
Motherboard chip	Intel H470
CPU	Intel 10th and 11th generation CPU, TDP:65W
	Optional: I3-10100, I5-10400, I5-11400, I5-11500, I7-11700, etc.
memory	2*DDR4 SO-DIMM, 3200MHz/64G, single slot supports 32G at most.
Cunzhu	1M.2 slot (NGFF/NVME automatic switching); 2SATA 3.0 interface+2*SATA power interface
Display interface	1HDMI interface, 1VGA interface, 1*LVDS interface
network	1*RJ45 interface
Network card chip	Realtek 8111H Gigabit NIC Chip
WIFI	1*M.2 slot (M.2 WIFI)
audio frequency	1Line out； 1MIC In； 1F_Audio built-in pin; 1JAMP built-in power amplifier pin
Audio chip	Realtek ALC897 HD Audio Chip
serial port	1*9Pin serial port pin, only RS232 mode is supported.
Usb interface	IO interface: 4 * USB 3.0; Built-in pins: 3 sets of USB2.0 pins (5 USB2.0 ports can be expanded)
LVDS function	1LVDS 30Pin, 23Pin screen voltage jump cap (3.3V/5V/12V)1*3Pin turns on/off LVDS jump cap.
	Support copy/extended display
LVDS backlight function	16Pin INVERTER interface, 13Pin screen backlight voltage jump cap (5V/12V), 1*4Pin manual backlight adjustment.
Functional pin	1FPANEL panel pin; 14Pin CPU fan; 1*4Pin SYS fan
Power input	1DC socket; 14Pin built-in power socket (DC12V~19V power input)
product size	Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L
Working temperature	-10℃~60℃
Working humidity requirements	10%~90% without condensation
Storage temperature	-25℃~70℃
power consumption	Standby power consumption: 9.5W Full load power consumption: 76W
other	1 JCMOS jump cap; 13Pin JAT jump cap; 25Pin diagnostic card interface
