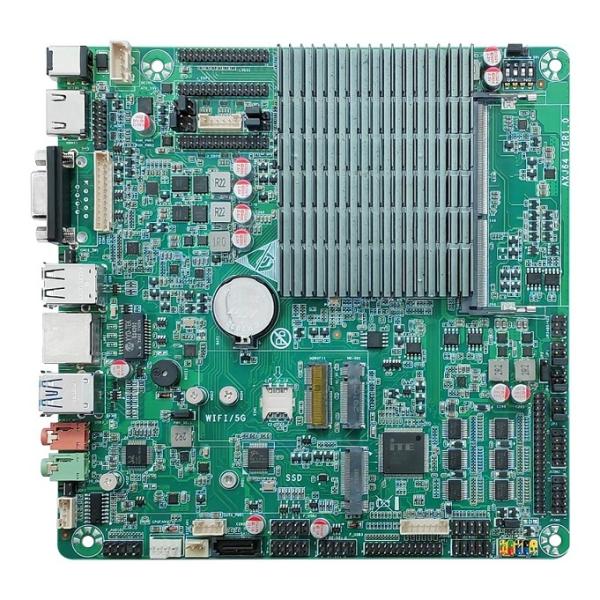

Model Name

AXJ64 V1.0

Motherboard chip

IntelElkhart Lake

CPU

Intel Celeron J6412 CPU,TDP:10W

Optional: J6412

memory

1*DDR4 SO-DIMM, 3200MHz/64G, single slot supports 32G at most.

Cunzhu

1*M.2 slot (NGFF/NVME automatic switching); 1*SATA 3.0 interface+1*SATA power interface

Display interface

1*HDMI-1.4A interface, 1*VGA interface (optional with DB9), 1*LVDS interface, 2*EDP interface.

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

WIFI

1*M.2 2230 slot (M.2 WIFI)

5G function

1 M.2 slot (support for moving away 5G module), 1*3Pin 5G module voltage jump cap.

audio frequency

1*Line out； 1*MIC In； 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

Audio chip

Realtek ALC897 HD Audio Chip

serial port

6 serial ports: 2*9Pin serial port pin, 1*40Pin serial port pin, 2*3Pin serial port voltage pin, 2*3Pin serial port communication pin.

6 serial ports all support RS232 mode, of which COM2 supports RS485 and RS422 mode, and COM3 supports RS485 mode.

Usb interface

IO interface: 2xUSB3.0；; 2xUSB2.0； Built-in pins: 3 sets of USB2.0 pins (6 USB2.0 ports can be expanded)

LVDS function

1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V), 1*3Pin backlight positive and negative jump cap.

Support copy/extended display

LVDS backlight function

1*6Pin INVERTER interface, 1*3Pin screen backlight voltage jump cap (5V/12V).

EDP function

2*EDP 30Pin pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V).

Support copy/extended display

EDP backlight function

1*3Pin screen backlight voltage jump cap (5V/12V)

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan

a key to restore

Support one-button reset button

Power input

1*DC socket; 1*4Pin ATX power socket (DC12V~19V power input)

product size

Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 13.3W Full load power consumption: 55.1W w.

other

1 JCMOS button; 1*3Pin JAT jump cap; 2*5Pin diagnostic card interface
