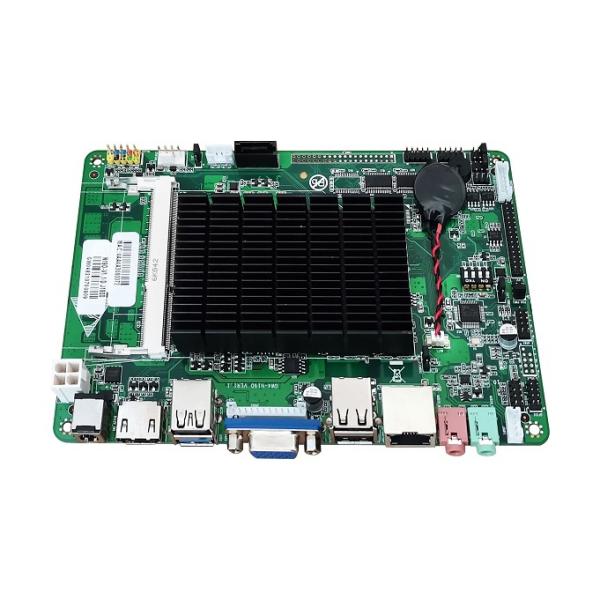

1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1
Specifications
Model Number :
GW4-N19D-V1.1 J1800 1LAN 2COM
Packaging Details :
Carton box
Delivery Time :
5-8 working Days
Supply Ability :
10000pcs/Day
Description

Features (product features)

▲ Support Intel Bay Trail-M/D series processors.

▲ Support DDR3L memory, up to 8GB 1333MHz SDRAM.

▲ Support stereo dual-channel ALC887 chip with onboard power amplifier.

▲ Support 6 serial ports

▲ Support 1 USB3.0 and 5 USB2.0.

▲ support MSATA

▲ Support Mini PCIE expansion slot (including 8pin SIM card slot)

▲ Support one 7Pin SATA interface.

▲ Support two RJ45 Gigabit network card interfaces.

▲ Support VGA/HDMI/LVDS display interface, and support synchronous dual display.

▲ Support single power supply 12V input.

▲ Support Windows7 and Windows10 32/64 bit operating systems.

Model Name

GW4-N19D VER:1.1

processor

Intel Bay Trail-M/D series processors

CPU

J1900

memory

technology

Single channel DDR3L 1333MHz

maximum capacity

8GB

Memory slot

1 x 204Pin DDR3L SO-DIMM(Non-ECC)

Post I/O

power source

1 standard 2.5mm DC power socket

HDMI

Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111H network card chip.

USB port

2 USB interfaces (USB2.0 interface above USB3.0 cradle and USB3.0 interface below cradle)

Audio

2 (Mic-in, Line-out)

Internal connector

USB port

4 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

serial port

6 (serial ports all support RS232 mode, among which COM2 supports RS422 and RS485 mode)

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

Mini-PCIe

1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

MSATA

Support SSD hard disk

serial ata

1 7Pin SATA interface, supporting SATA 2.0

GPIO

8-way bidirectional 5V

PWR interface

1 standard 2x2PIN power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 8.4W Full load power consumption: 30W

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

165 mm x 115 mm
