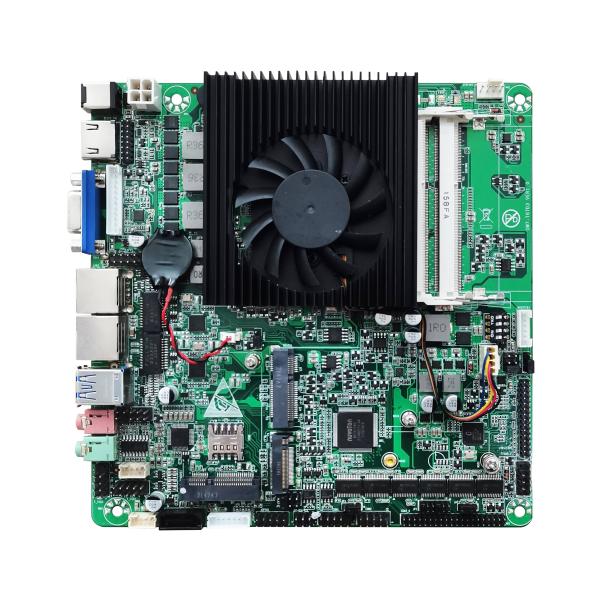

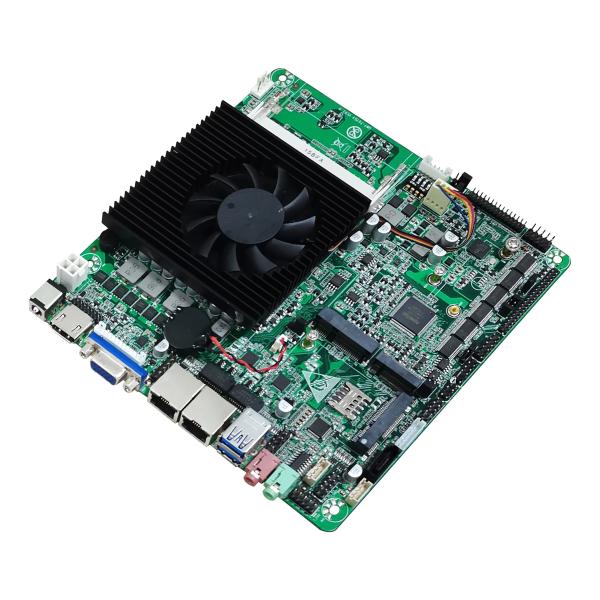

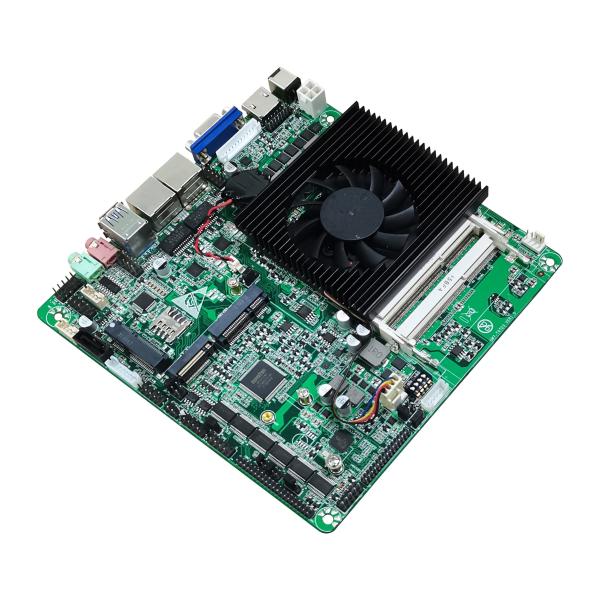

Model Name

GW7-T67D3 VER:1.1

processor

Intel Skylake-U/Kabylake series processors

CPU

Support Intel 6th/7th generation Celeron, Pentium, i3, i5 and i7 CPU, such as I5-6360U and I5-7200U.

memory

technology

Dual-channel DDR3L 1600MHz

capacity

The maximum capacity supports 32GB, and a single slot supports up to 16GB of memory.

Memory slot

2 x 204Pin DDR3L SO-DIMM(Non-ECC)

Post I/O

power source

1 standard 2.5mm DC12V power socket

HDMI

Standard D socket, supporting HDMI1.4, maximum resolution: 4096*2304@24Hz (HDMI and JHDMI can only be selected).

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz (VGA interface and JVGA interface can only be selected).

Ethernet

1 or 2 gigabit network cards (LAN2 and USB2.0 are laid together), RTL8111K network card chip.

USB port

2 USB3.0 interfaces

Audio

1 (Line-out, Mic-in)

Internal connector

USB port

6 USB2.0 interfaces (one FUSB can switch out 2 USB2.0 interfaces)

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).

EDP interface

The maximum resolution can reach 4096x2304@60Hz(LVDS and EDP can only be selected).

JHDMI interface

2*8Pin pin, supporting the maximum resolution of 4096x2304@24Hz(HDMI and JHDMI can only be selected).

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

M.2 interface

1 full-length M.2 M KEY slot, M.2 hard disk supporting SATA protocol and NVME protocol.

MSATA interface

1 MSATA interface supporting SATA 3.0 speed.

serial ata

1 7Pin SATA interface supporting SATA 3.0 speed.

FAudio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

Mini-PCIe

1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

PS/2 interface

1*7Pin 2.0mm white socket, which can connect PS/2 keyboard and PS/2 mouse.

serial port

6 (of which COM1/4/5/6 supports RS232 mode, COM2 supports RS232/RS485/RS422 mode and COM3 supports RS232/RS485 mode).

GPIO

8-way bidirectional 5V

PWR interface

1 standard 2x2PIN DC12V power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 12.0W Full load power consumption: 46.8W w.

environment

temperature range

working environment

Storage environment

Temperature:-40 ~ 70℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
