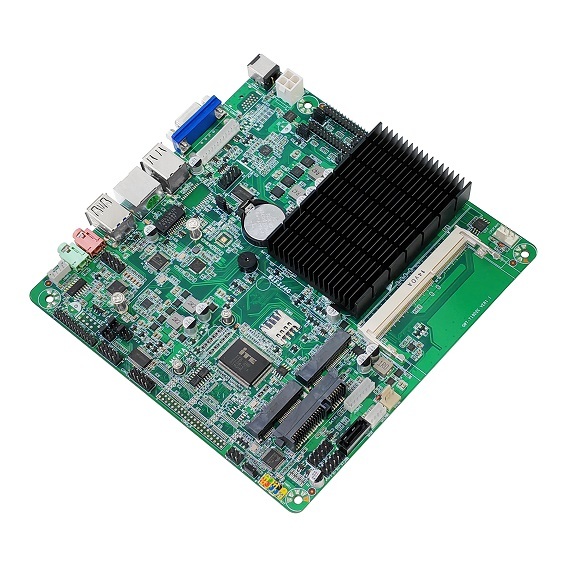

Model Name

GW7-T19D-2E VER:1.1

processor

Intel Bay Trail-M/D series processors

CPU

J1900

memory

technology

Single channel DDR3L 1333MHz

maximum capacity

8GB

Memory slot

1 x 204Pin DDR3L SO-DIMM(Non-ECC)

Post I/O

power source

1 standard 2.5mm DC power socket

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111H network card chip.

USB port

2 USB interfaces (USB2.0 interface above USB3.0 cradle and USB3.0 interface below cradle)

Audio

1 (Mic-in, Line-out)

Internal connector

USB port

6 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

PS2 interface

1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

serial port

6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode)

parallel port

1 2*13Pin pin

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

EDP interface

Support two 4 LANE eDP channels, and support the maximum resolution of 1920x1200@60HZ.

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

Mini-PCIe

1 Mini PCIe slot of full-length card (supporting WIFI and 4G modules)

MSATA

Support SSD hard disk

serial ata

1 7Pin SATA interface, supporting SATA 2.0

GPIO

8-way bidirectional 5V

PWR interface

1 standard 2x2PIN power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 8.4W Full load power consumption: 25.2W

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
