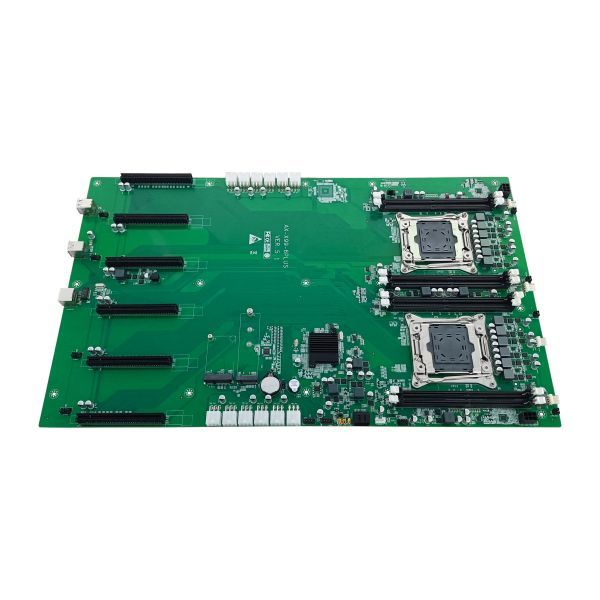

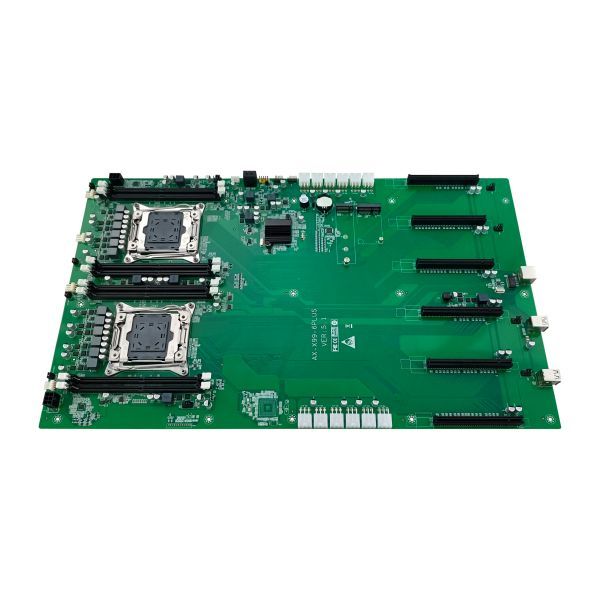

X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4
X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4
X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4
X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4
X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4
X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4
Specifications
Model Number :
X99-6PLUS-V5.1
Model Name :
X99-6PLUS-V5.1
processor :
Dual Intel Xeon E5 LGA2011-3
South Bridge :
C612 Chipset series
Memory :
Four channels DDR4 2133/2400/2666MHz , MAX 256GB（32GB*8）, 8 * 288-Pin DDR4 Memory slot
PCI-e :
6*（4*PCI-e x16 3.0 + 2*PCI-e x8 3.0）Spacing：63MM
M.2 :
1 M.2(M.2 NVME/M.2 NGFF) interface
GPU-POWER :
6x2*3Pin PWR-IN Power supply socket，6x2*3Pin PWR-OUT Power supply socket，2*CPU 2x4Pin PWR IN Power supply socket
Physical size :
330mm x 540mm
Packaging Details :
Carton box
Delivery Time :
5-8 working Days
Supply Ability :
10000pcs/Day
Description

Dual Intel Xeon E5 LGA2011-3, DC-Input, Single LAN, DDR4*8,SATA/M-SATA,PCI-e*6, PCIE M.2

Features

▲ Support Dual Xeon E5 LGA2011-3 pin series processors

▲ Support for 2* SATA ports (6Gb/s)

▲ Support for 1 M.2 interface (M.2 NVME/M.2 NGFF)

▲ Technology high-speed DDR4 four-channel memory slots: supporting DDR4 2133/2400/2666MHz, maximum capacity 256GB

▲ Support 2* USB3.0, 4 USB2.0

▲ Support for 6 *PCI-e interfaces (spacing: 63MM)

▲ Support for Realtek Gigabit LAN

▲ Support 6+6 phase power supply

▲ Support for Win10 32/64-bit operating system, Linux system

Specifications

processor

Dual Intel Xeon E5 LGA2011-3

South Bridge

C612 Chipset series

Memory

DDR GEN

DDR4

Technical/memory standards

Four channels DDR4 2133/2400/2666MHz

Maximum capacity

256GB(32GB*8)

Memory slot

8 * 288-Pin DDR4 Memory slot

Post I/O

USB Interface

2*USB3.0；2*USB2.0

Ethernet

1*Realtek Gigabit network adapter

JVGA

1*Standard 1x12 pins (optional interface)

Internal connector

FAN

2*CPU_FAN + 4*1*4Pin Horizontal video card fan holder

JLPC

1 standard 2x5Pin modulation interface

SATA/M-SATA

2*SATA 6Gb/s + 1*M-SATA 6Gb/s

USB 2.0

2*(1 FUSB can be converted to two USB 2.0 ports)

PCI-e

6*(4*PCI-e x16 3.0 + 2*PCI-e x8 3.0)Spacing:63MM

M.2

1 M.2(M.2 NVME/M.2 NGFF) interface

JSATA-PWR

1*1x4Pin SATA Power supply socket

GPU-POWER

6x2*3Pin PWR-IN Power supply socket,6x2*3Pin PWR-OUT Power supply socket,2*CPU 2x4Pin PWR IN Power supply socket

Physical size

Size

330mm x 540mm

X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4

X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4

X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4

X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4

X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4

X99-6PLUS-V5.1 Bitcoin Motherboard Single LAN C612 Chipset Four channels DDR4
